Installation

LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.





1. INSTALL FOG LIGHT UNIT LH
(a) Install the fog light bulb to the fog light unit.

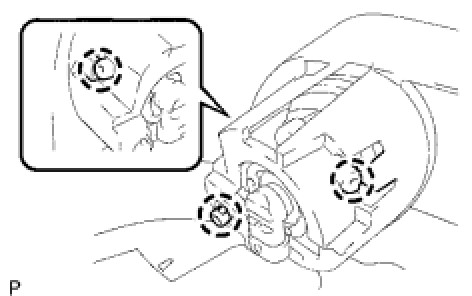

(b) Attach the 3 claws to install the light unit.
2. INSTALL RADIATOR GRILLE LOWER LH Reassembly
3. INSTALL FRONT BUMPER COVER Installation
4. INSTALL FRONT FENDER LINER RH Installation
5. INSTALL FRONT FENDER LINER LH Installation
6. ADJUST FOG LIGHT AIMING Adjustments
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
