Home >> Toyota >> 2009 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Locations

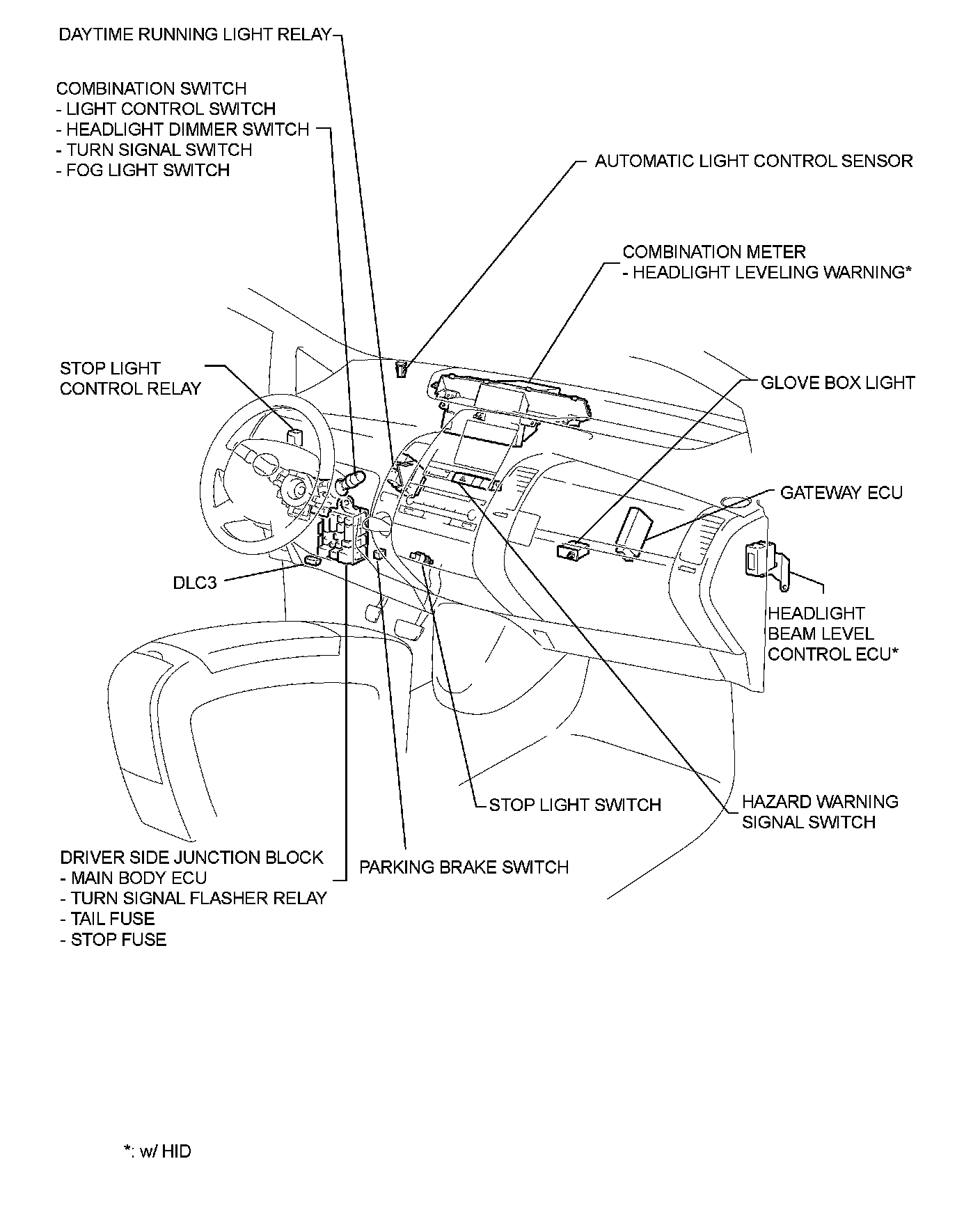

Headlamp Alignment Control Module: Locations






Instrument Panel:
