Headlamp Alignment Sensor: Testing and Inspection

LIGHTING: HEIGHT CONTROL SENSOR: INSPECTION

INSPECTION

1. INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY





(a) Connect 3 dry cell batteries (1.5 V) in a series.
(b) Connect the positive (+) lead from the batteries to terminal 3 and negative (-) lead to terminal 1.

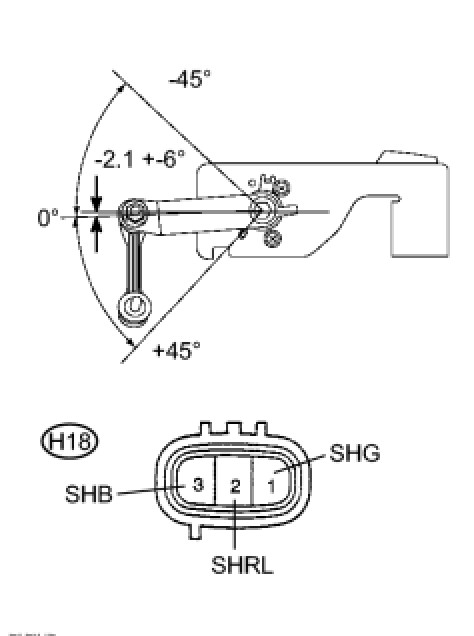

(c) Measure the voltage between the terminal 1 and 2 when slowly move the link up and down.

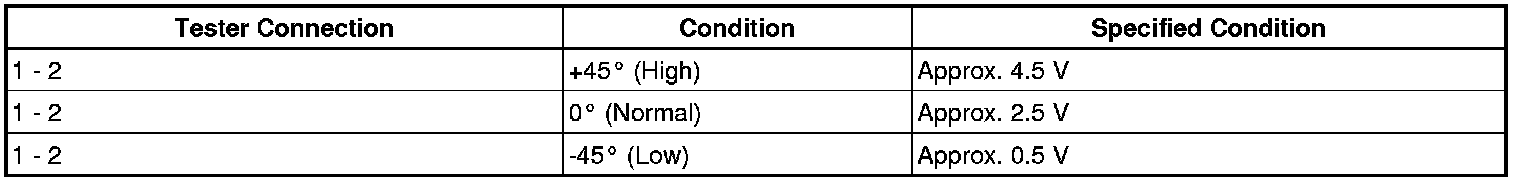

Standard voltage:





If the result is not as specified, replace the sensor sub-assembly.
