Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL HEADLIGHT LEVERING MOTOR ASSEMBLY LH (w/ HID Headlight System)





(a) Attach the headlight levering motor to the headlight.

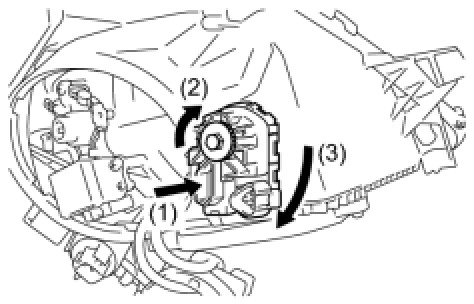

(b) Rotate the aiming screw on the headlight leveling motor in the direction indicated by arrow (2) in the illustration and install the shaft.
(c) Rotate the headlight leveling motor in the direction indicated by arrow (3) in the illustration to install it.
2. INSTALL HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY (w/ HID Headlight System)





(a) Install the headlight cover and gasket with the 4 screws.





(b) Install the 2 screws.





(c) Attach the claw and disconnect the connector, and then install the headlight light control ECU.
HINT: If the bulb socket cannot be removed due to interference with the reflector, turn the aiming screw counterclockwise, move the reflector, and then install the bulb socket.

3. INSTALL FRONT TURN SIGNAL LIGHT BULB

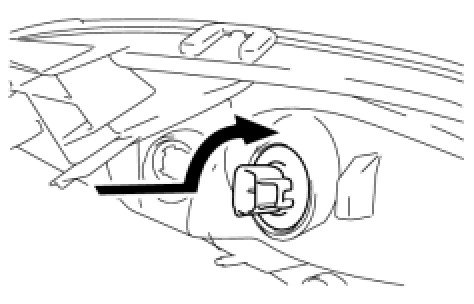

(a) Rotate the front turn signal light socket and bulb in the direction indicated by the arrow in the illustration to install them.
4. INSTALL CLEARANCE LIGHT BULB

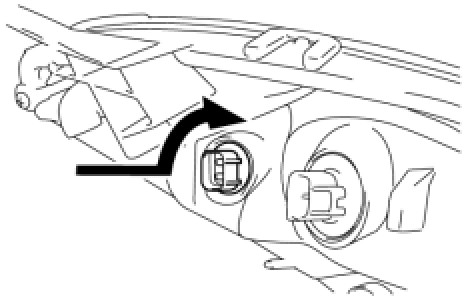

(a) Turn the clearance light socket and bulb in the direction indicated by the arrow in the illustration to install them.
5. INSTALL HID HEADLIGHT BULB (w/ HID Headlight System)

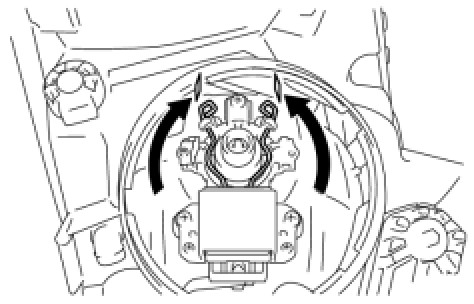

(a) Push the set spring in the direction indicated by the arrow in the illustration and install the discharge headlight bulb.
NOTE: Do not touch the bulb glass with your fingers.

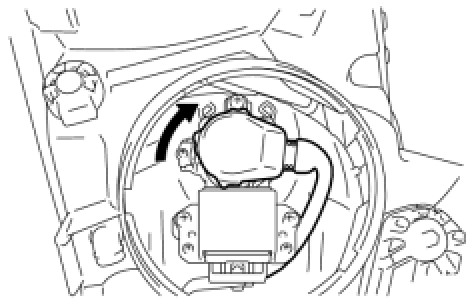

(b) Turn the headlight light control ECU socket in the direction indicated by the arrow in the illustration to install it.

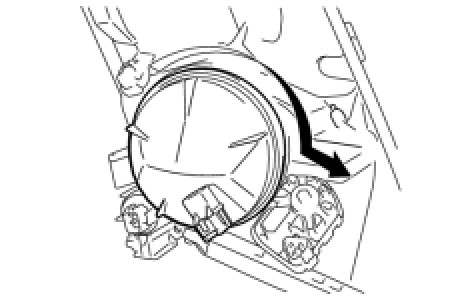

(c) Turn the headlight socket cover in the direction indicated by the arrow in the illustration to install it.
6. INSTALL NO. 1 HEADLIGHT BULB (w/o HID Headlight System)

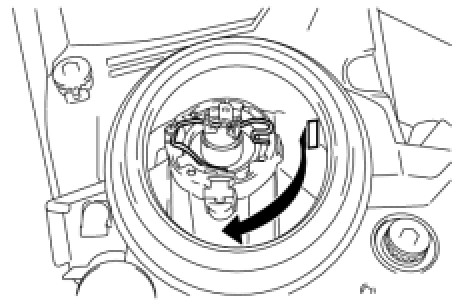

(a) Push the set spring in the direction indicated by the arrow in the illustration to install the No. 1 headlight bulb.
NOTE: Do not touch the bulb glass with your fingers.

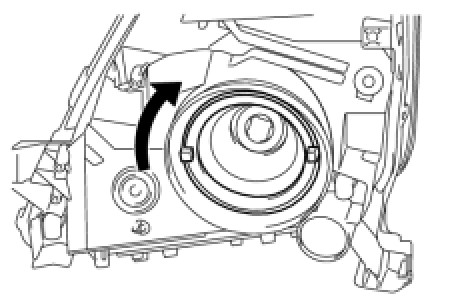

(b) Turn the headlight socket cover in the direction indicated by the arrow in the illustration to install it.





7. INSTALL HEADLIGHT ASSEMBLY LH
(a) Install the 3 screws.
(b) Connect all connectors and install the headlight.
8. INSTALL FRONT BUMPER COVER Installation
9. INSTALL FRONT FENDER LINER RH Installation
10. INSTALL FRONT FENDER LINER LH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

13. ADJUST HEADLIGHT AIM ONLY Adjustments
14. ADJUST FOG LIGHT AIMING Adjustments
