Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Service and Repair
>>
High Pitched Horn
>>
Components
Components

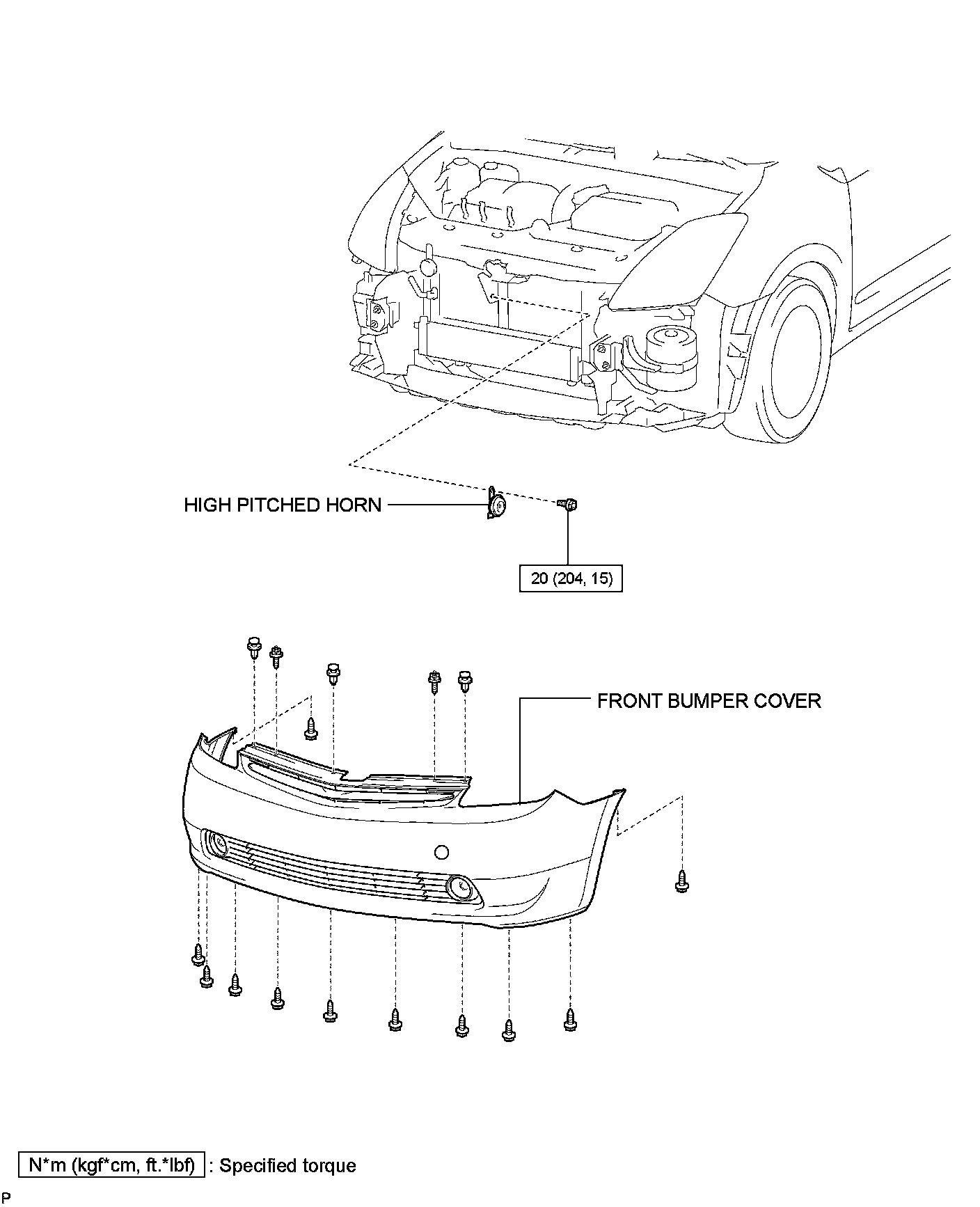

HORN
: HIGH PITCHED HORN: COMPONENTS
COMPONENTS
ILLUSTRATION
