HORN: LOW PITCHED HORN: INSTALLATION

INSTALLATION





1. INSTALL LOW PITCHED HORN

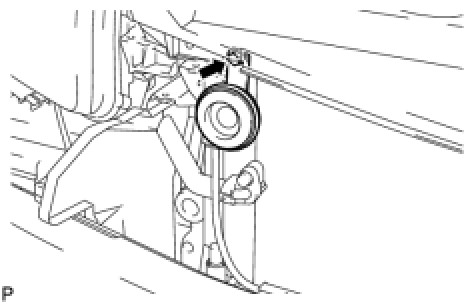

(a) Place the stay onto the baffle part of the radiator support upper, and then install the horn with the bolt.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
NOTE: Do not overlap the horn and the protruding part of the radiator support.

(b) Connect the horn connector.
2. INSTALL FRONT BUMPER COVER Installation
