Installation

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL LICENSE PLATE LIGHT LENS
(a) Install the bulb to the socket.
(b) Install the bulb/socket unit to light.
(c) Connect the connector.

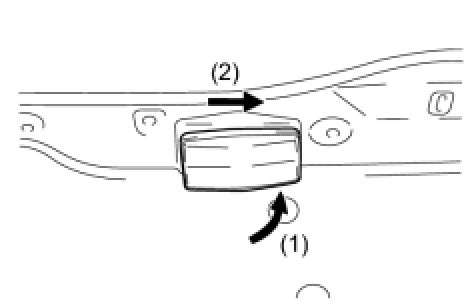

(d) Install the light as shown in the illustration.
2. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
3. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
