Removal

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY Disassembly
2. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
3. REMOVE LICENSE PLATE LIGHT ASSEMBLY

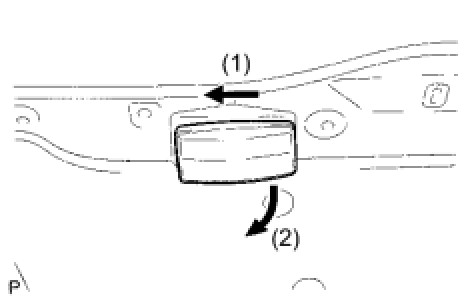

(a) Remove the light as shown in the illustration.
(b) Disconnect the connector.
(c) Remove the bulb/socket unit from the light.
(d) Remove the bulb from the socket.
