Pinout Values and Diagnostic Parameters

LIGHTING: LIGHTING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

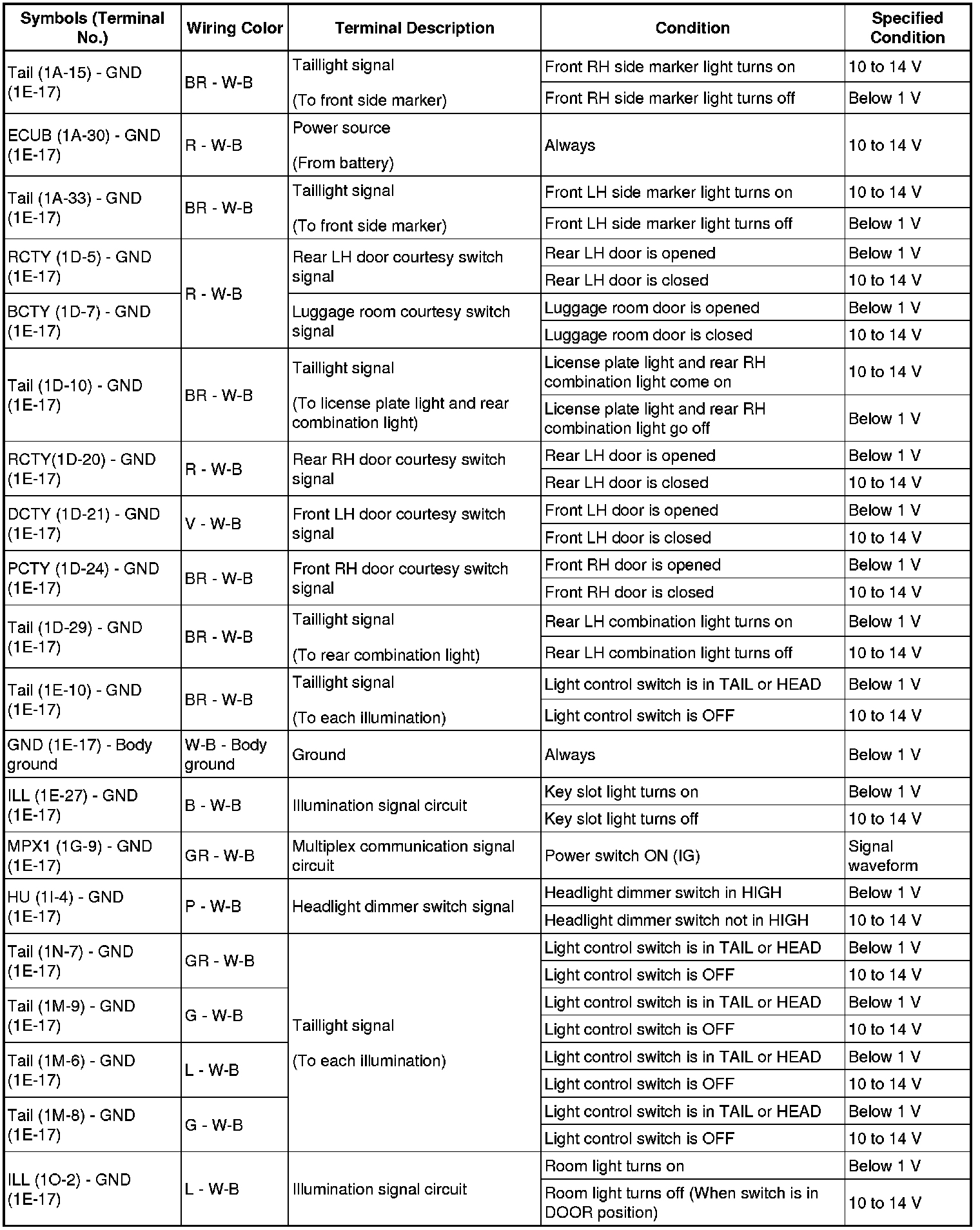

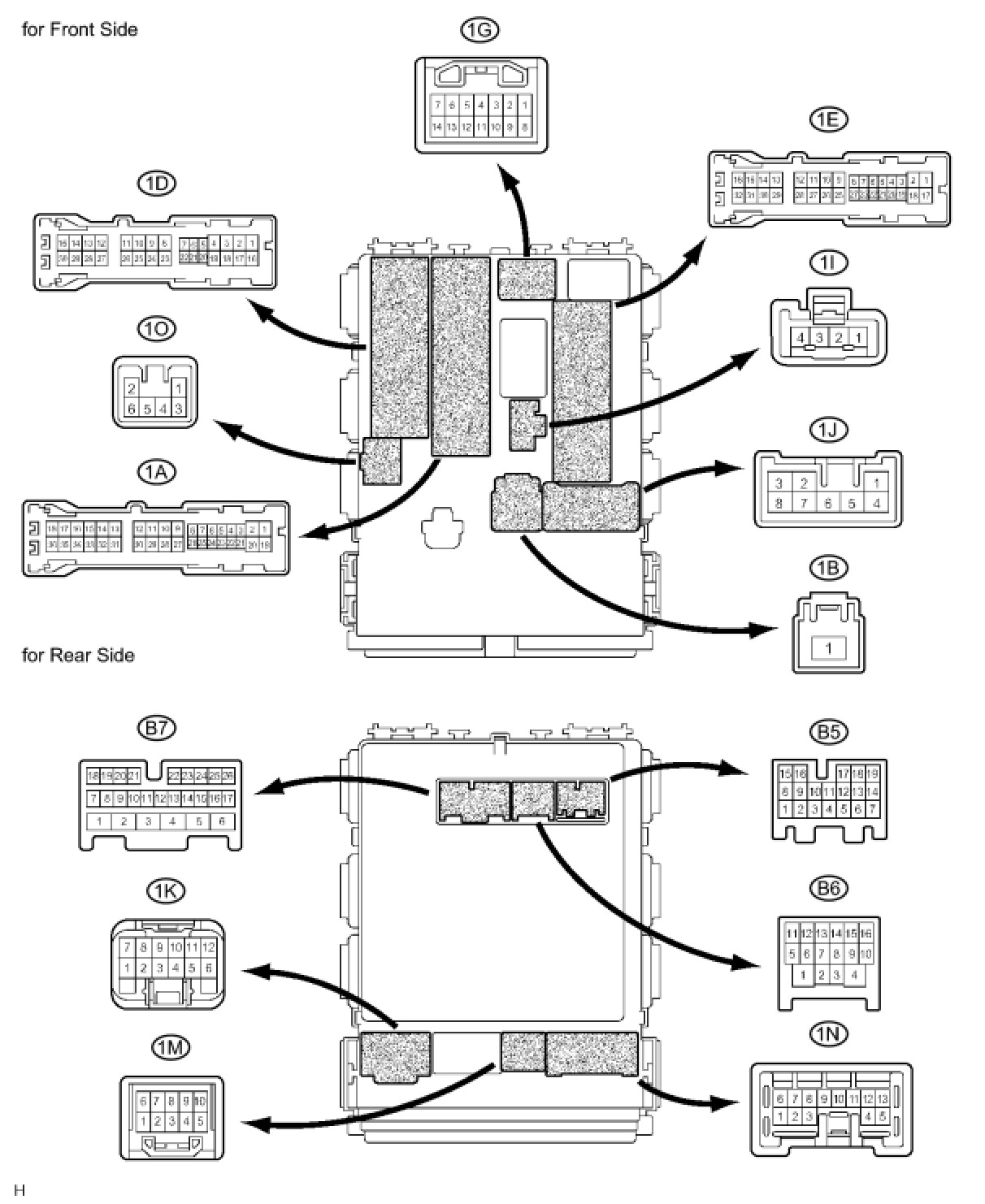

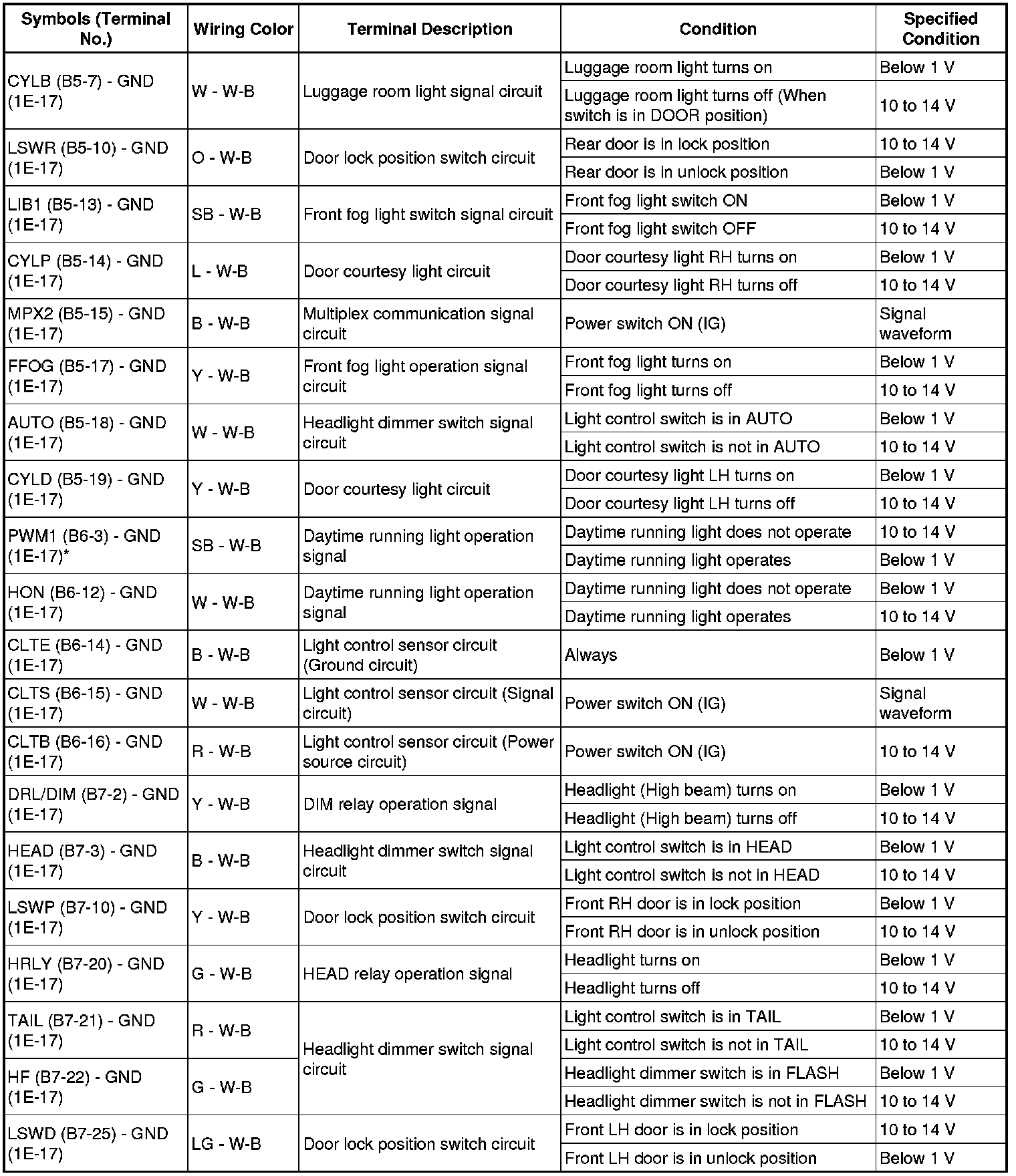

1. CHECK DRIVER SIDE JUNCTION BLOCK (MAIN BODY ECU)













HINT: *: w/ Daytime running light

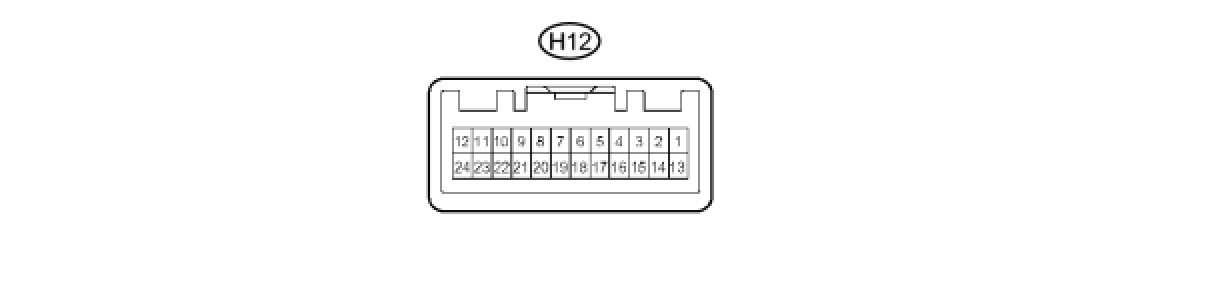

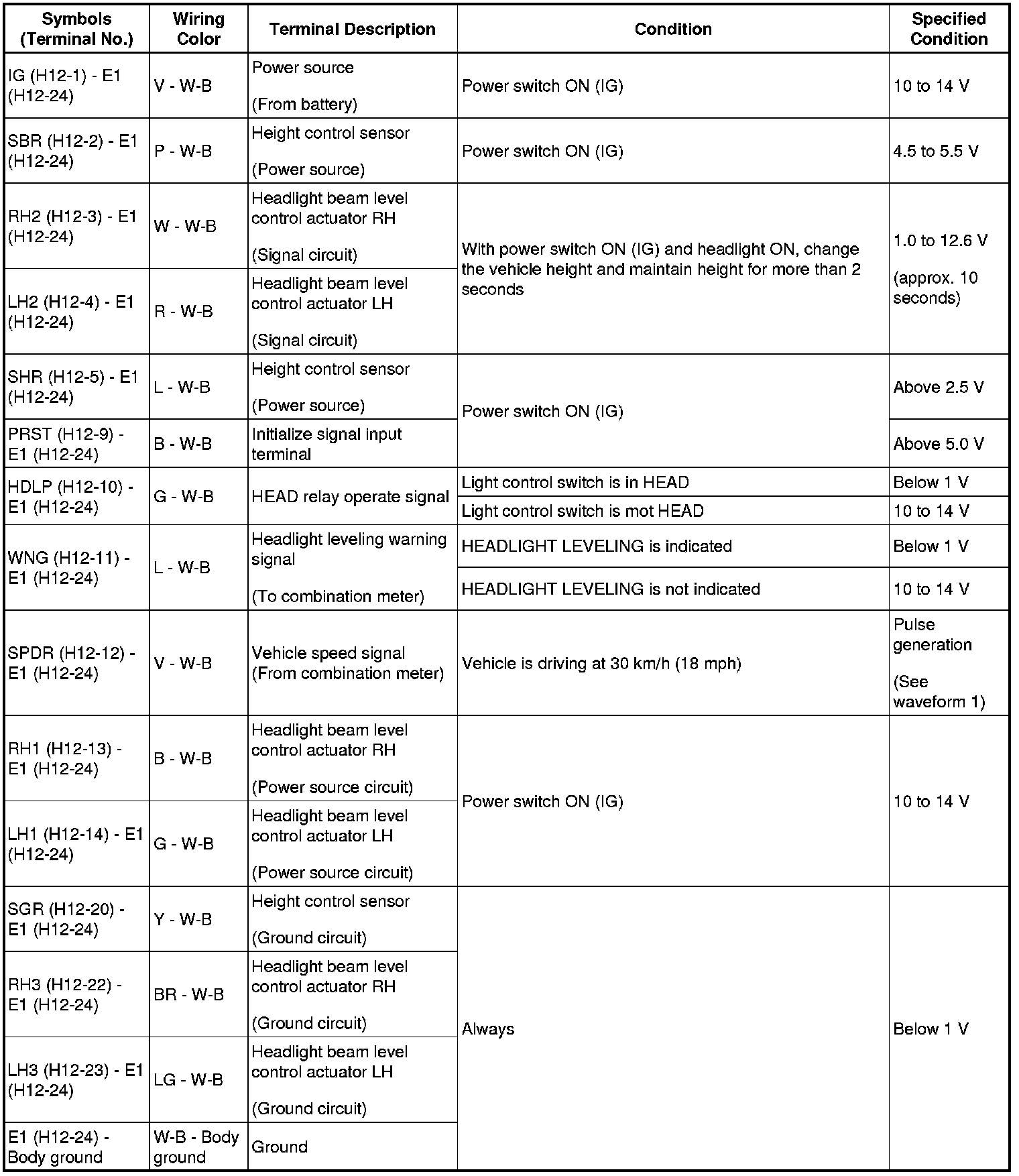

2. CHECK HEADLIGHT BEAM LEVEL CONTROL ECU

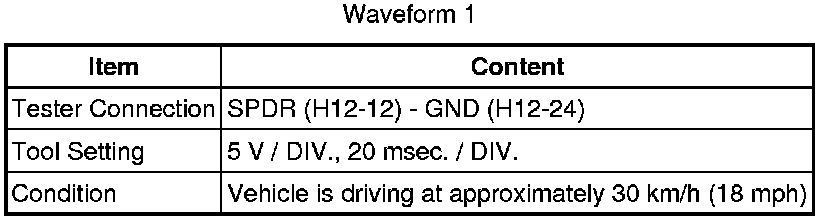

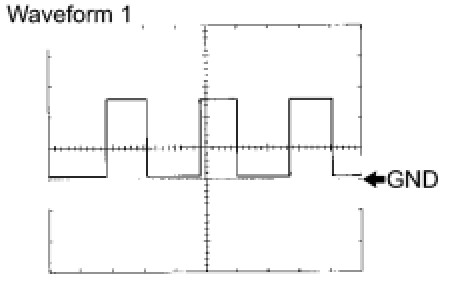

(a) Using an oscilloscope, check the waveform 1.
