Customize Parameters

LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

Illuminated entry

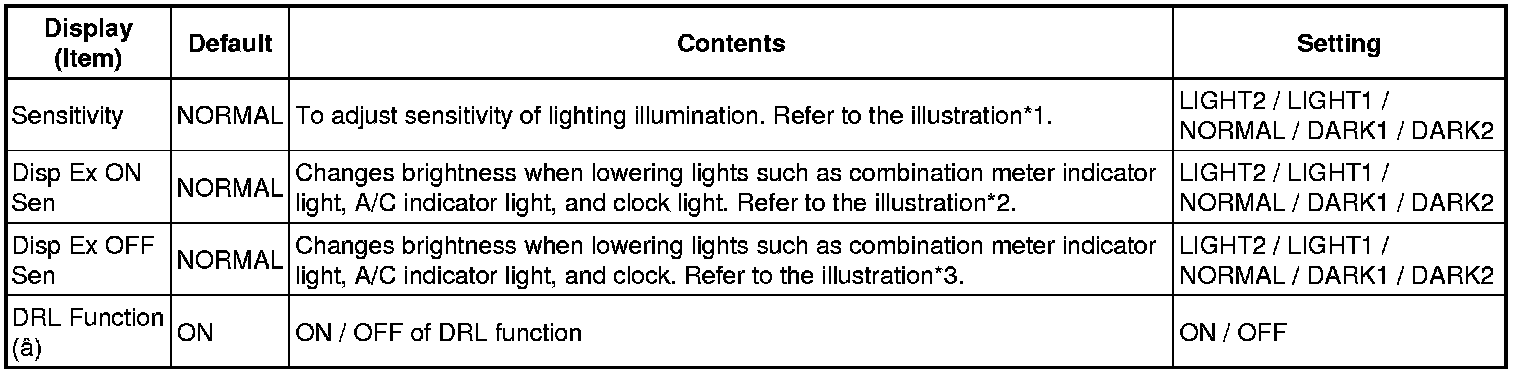

Light control





●: w/ Daytime running light

Illustration of *1





Illustration of *2





Illustration of *3
