Vanity Lamp: Testing and Inspection

LIGHTING: VANITY LIGHT: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT VISOR ASSEMBLY (VANITY LIGHT SWITCH)

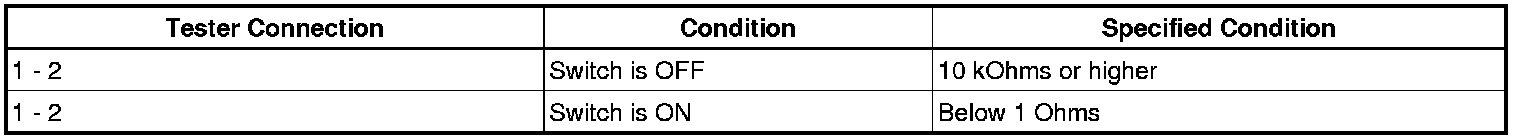

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the visor assembly.
2. INSPECT VANITY LIGHT ASSEMBLY
(a) Connect the battery positive (+) lead from the battery to one of the terminals and battery negative (-) lead to the other terminal, then check that the light comes on.
OK:
Light comes on.
If the result is not as specified, replace the light assembly.
