Fuse: Application and ID

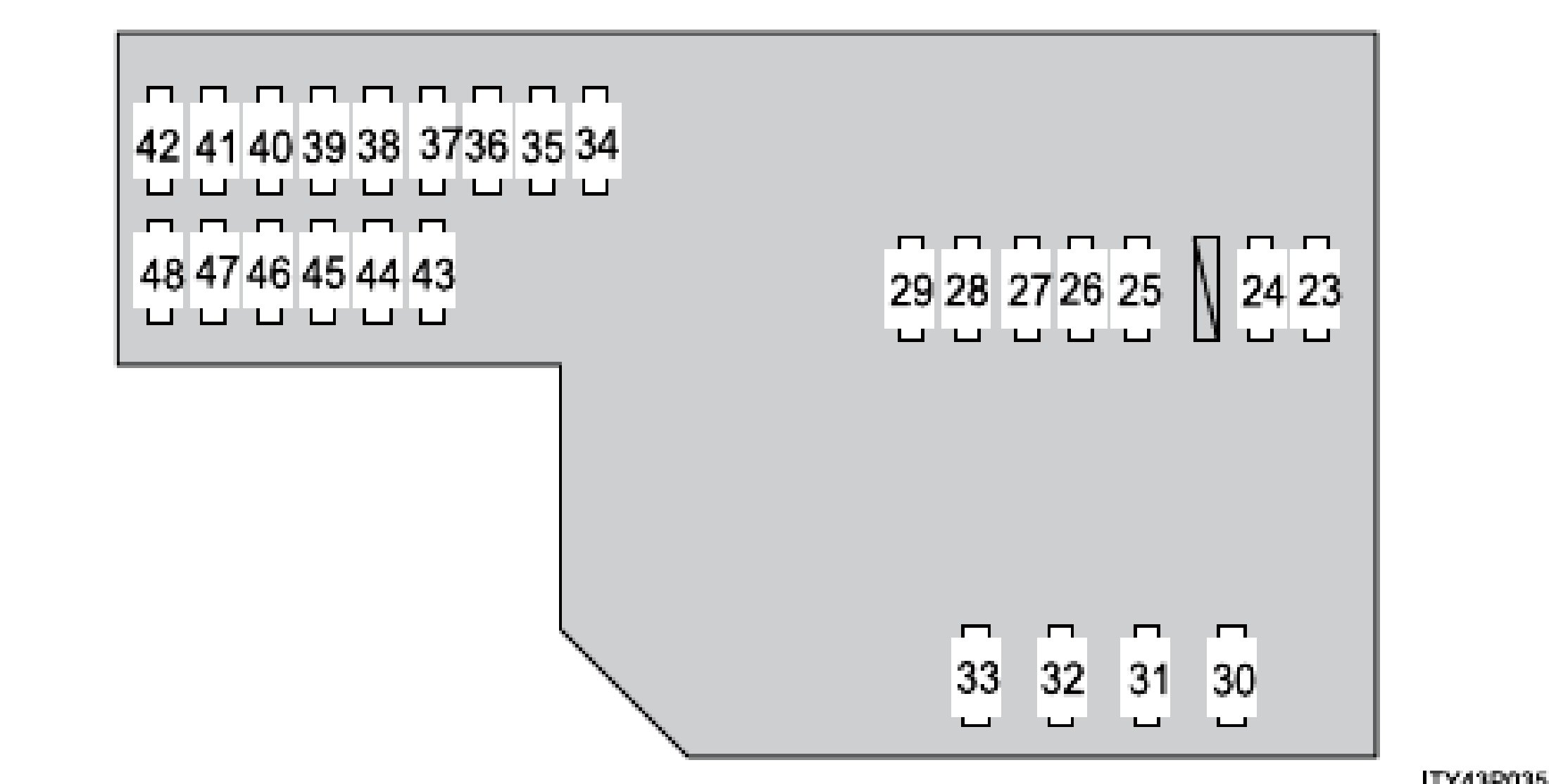

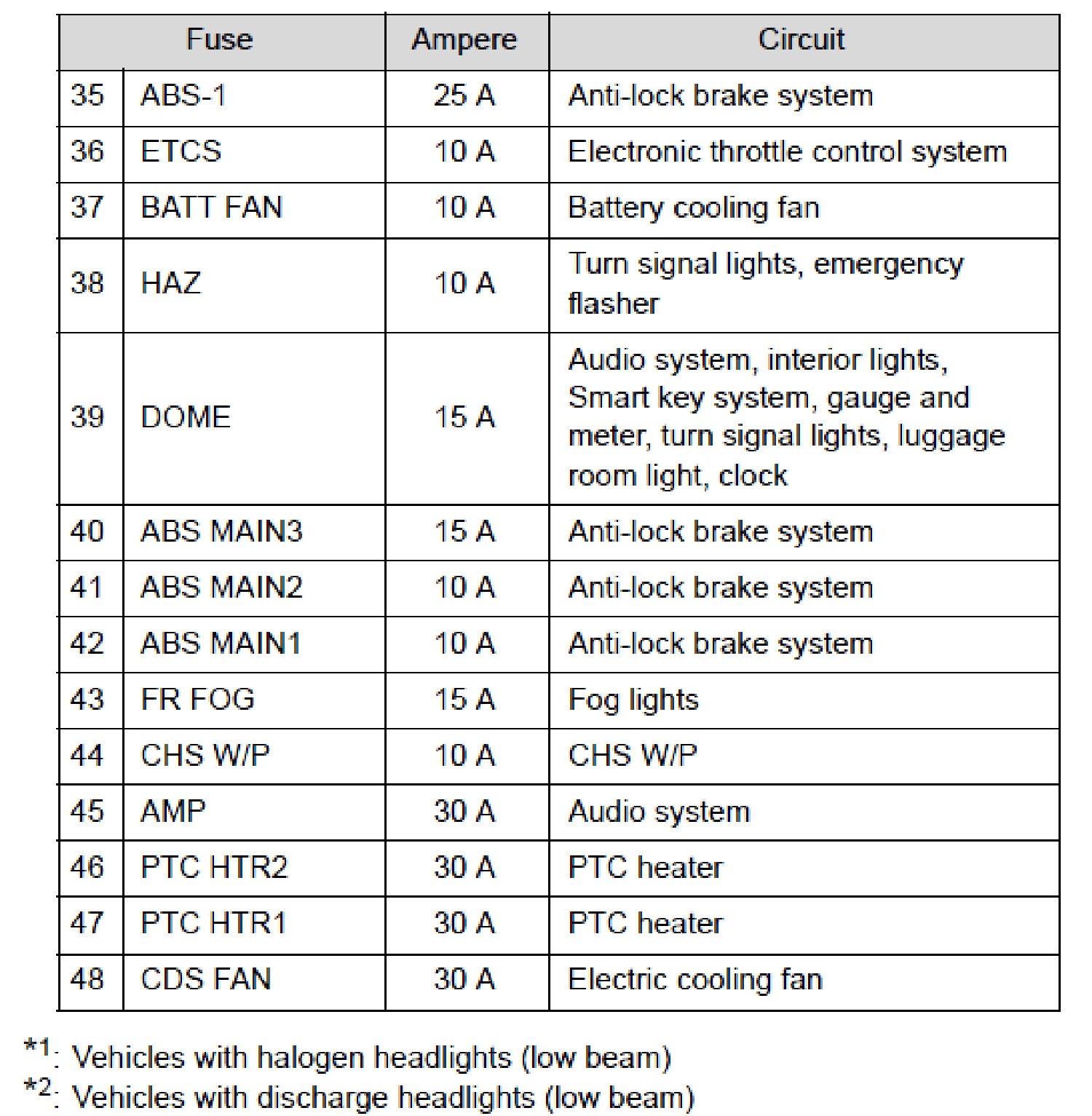

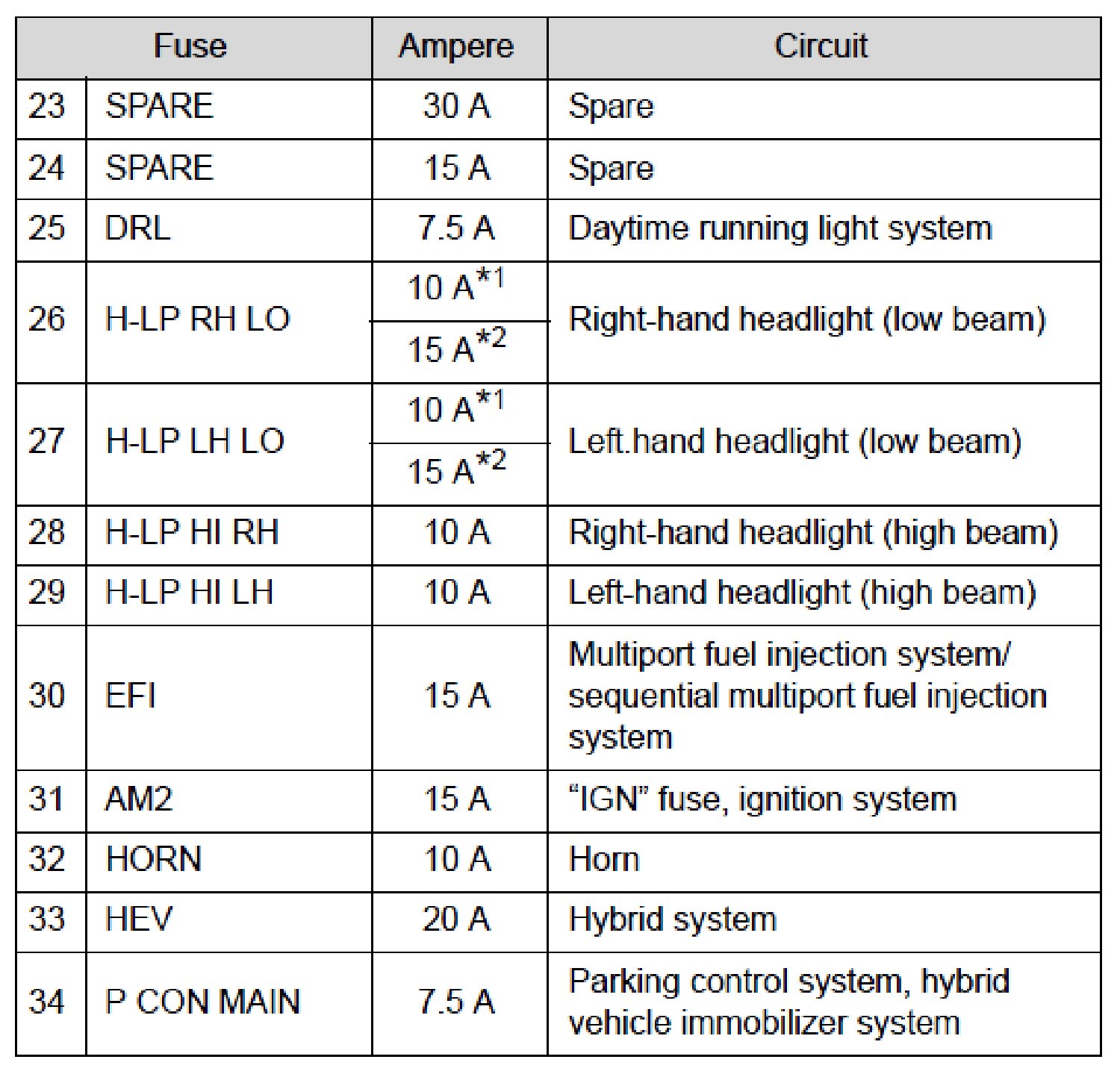

Fuse Layout and Amperage Ratings

Engine Compartment:

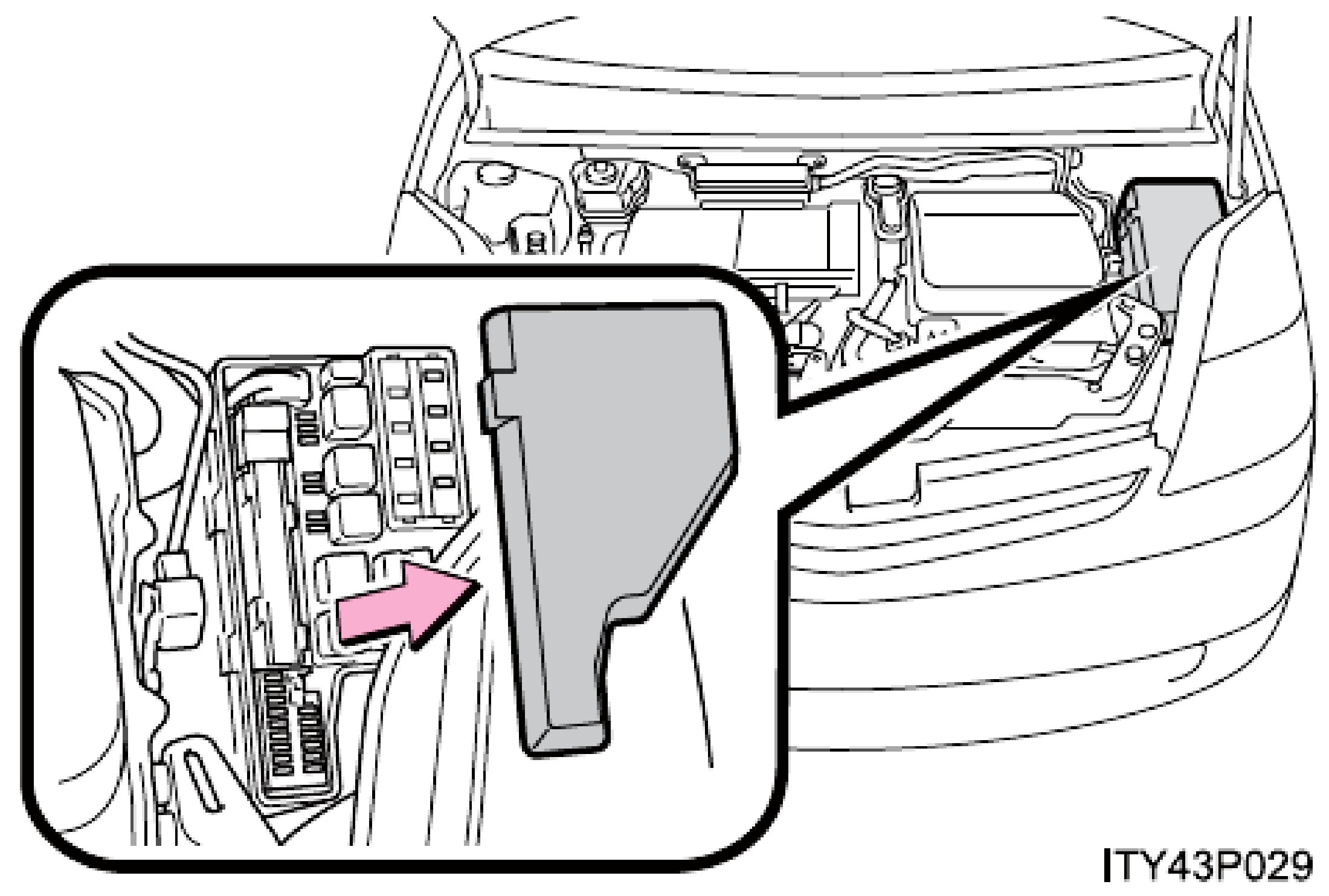

Fuse Location:

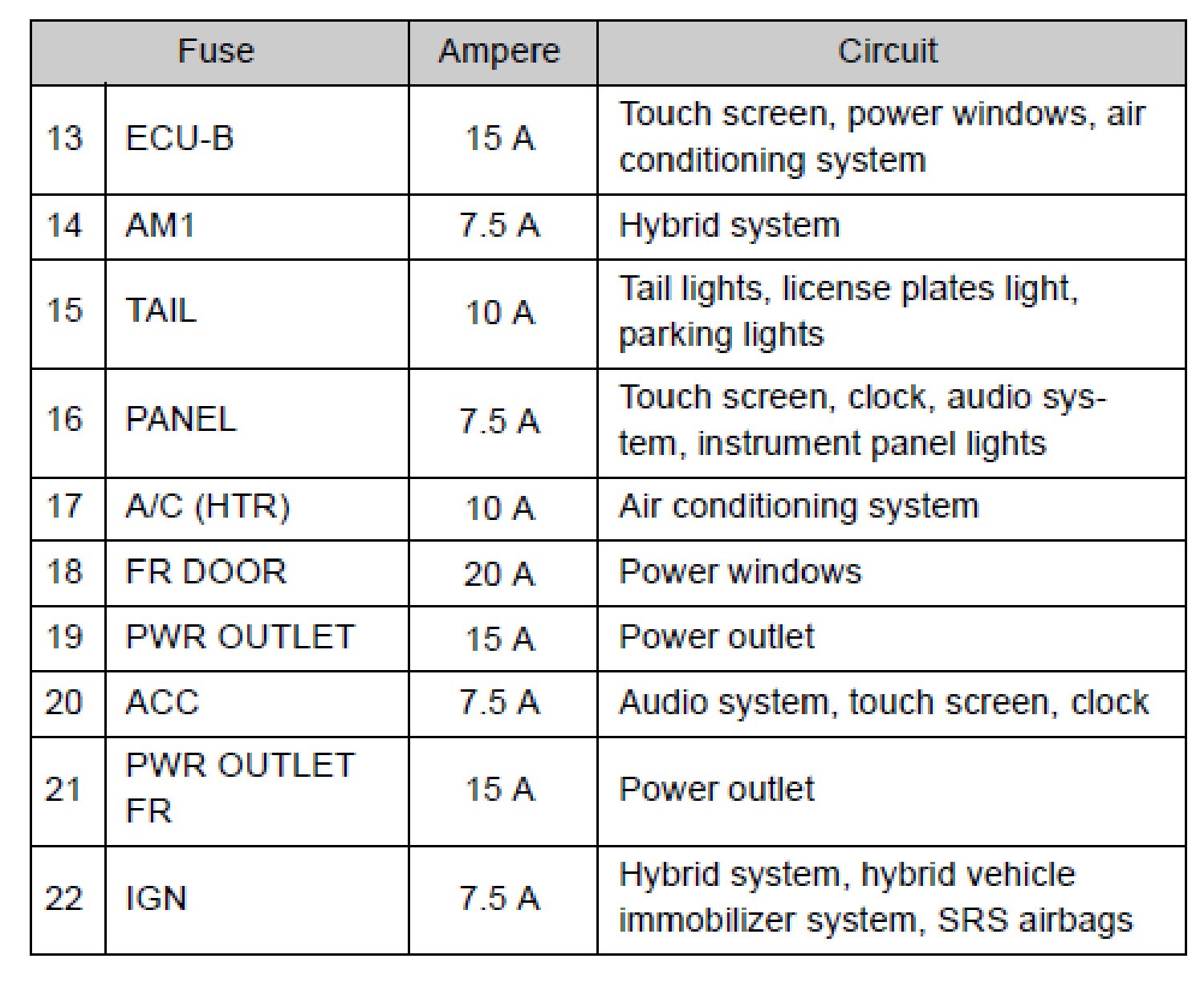

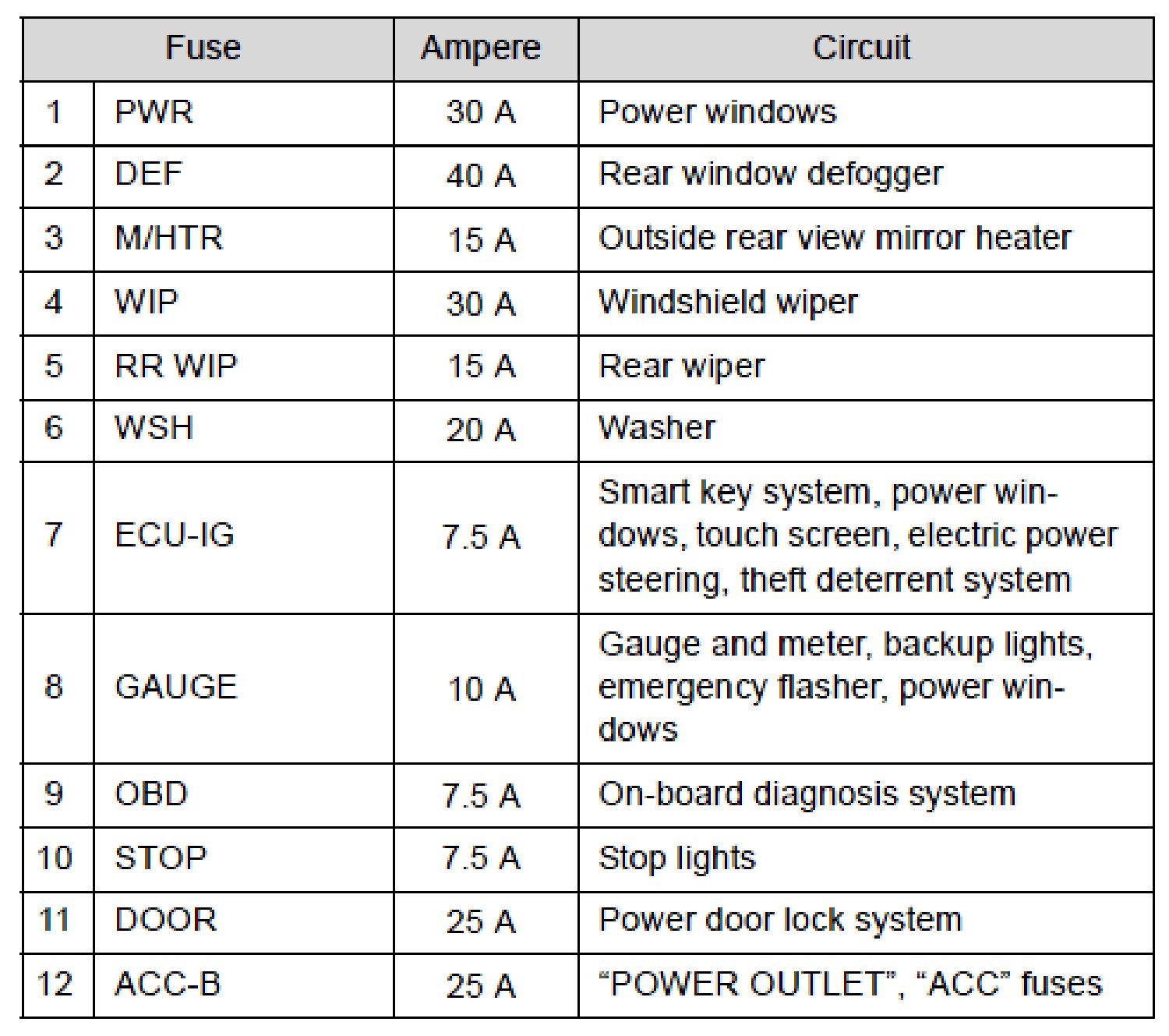

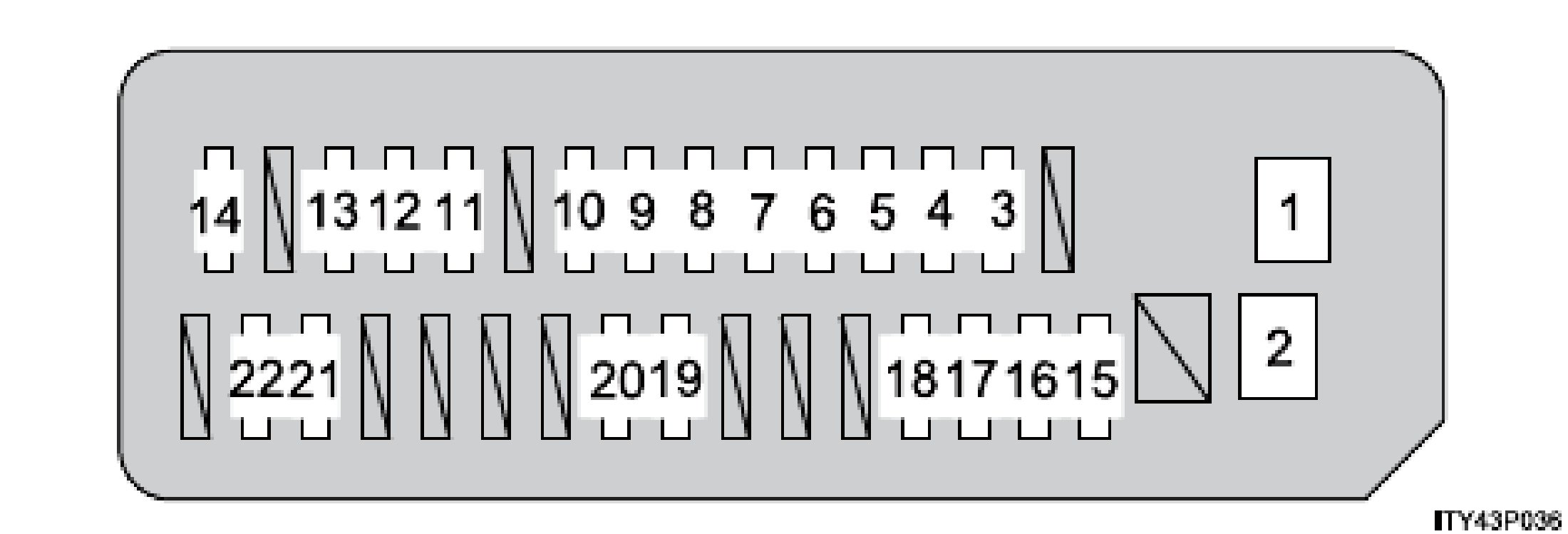

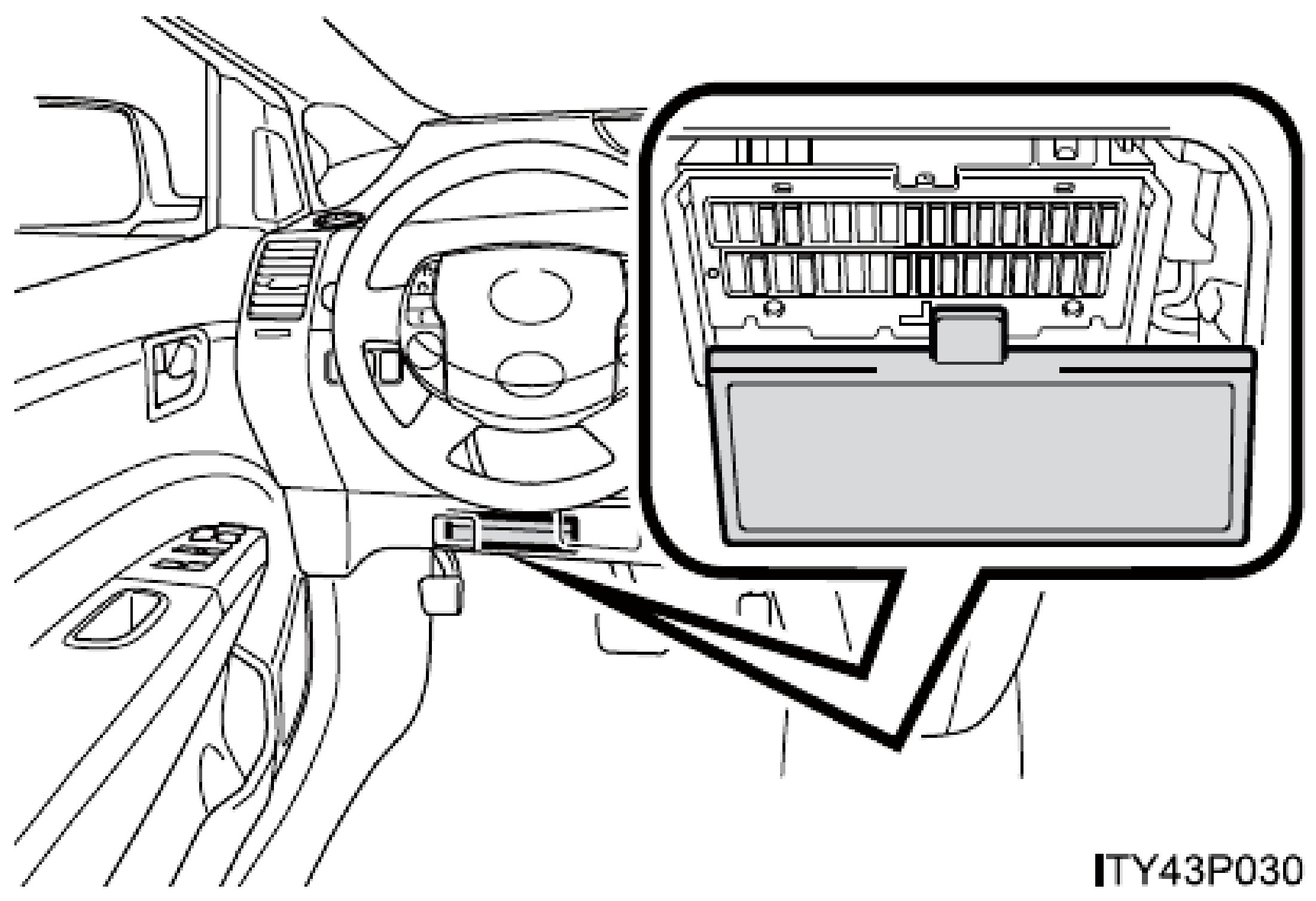

Left Side Instrument Panel:





Fuse Location:

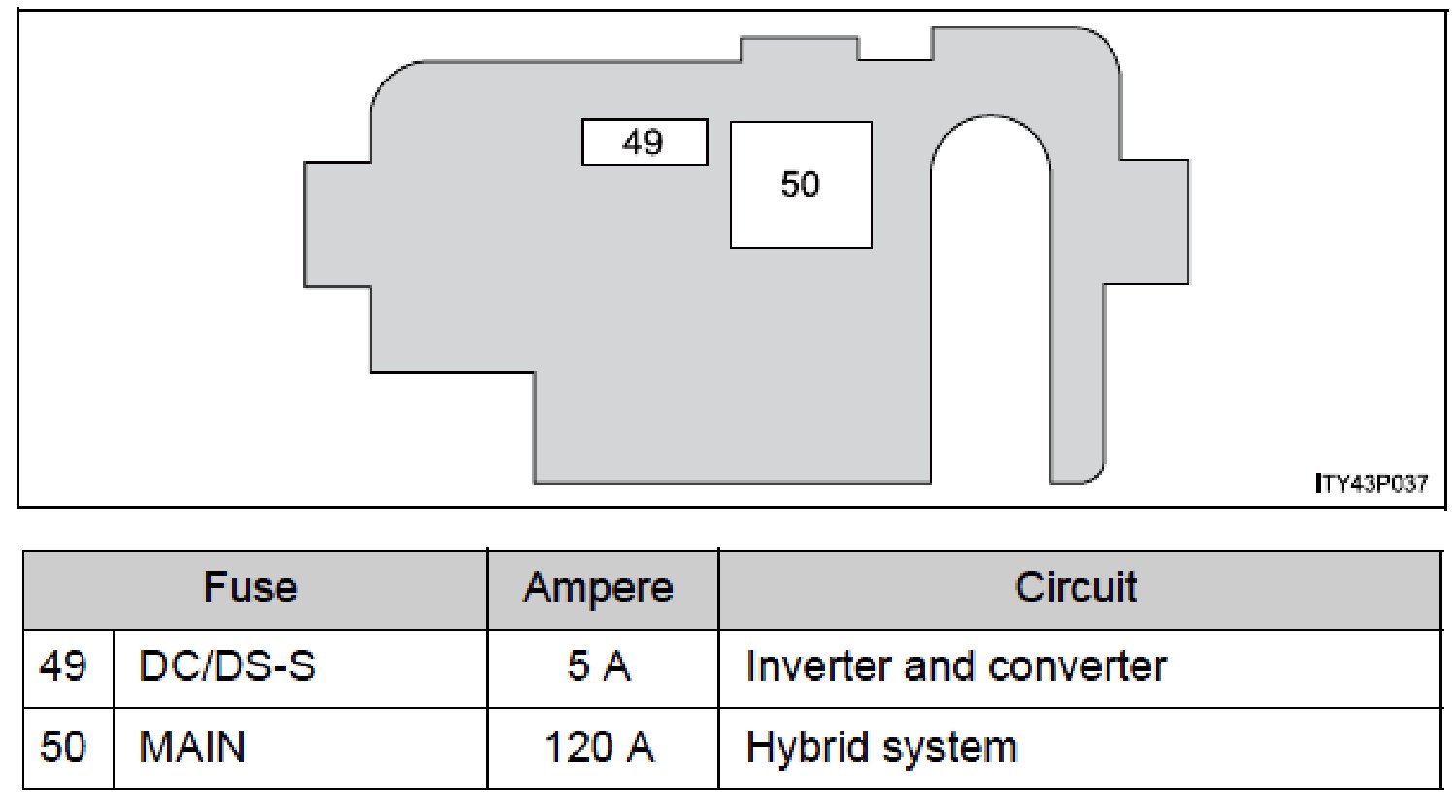

Luggage Compartment:
