Component Tests and General Diagnostics

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

INSPECTION

1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

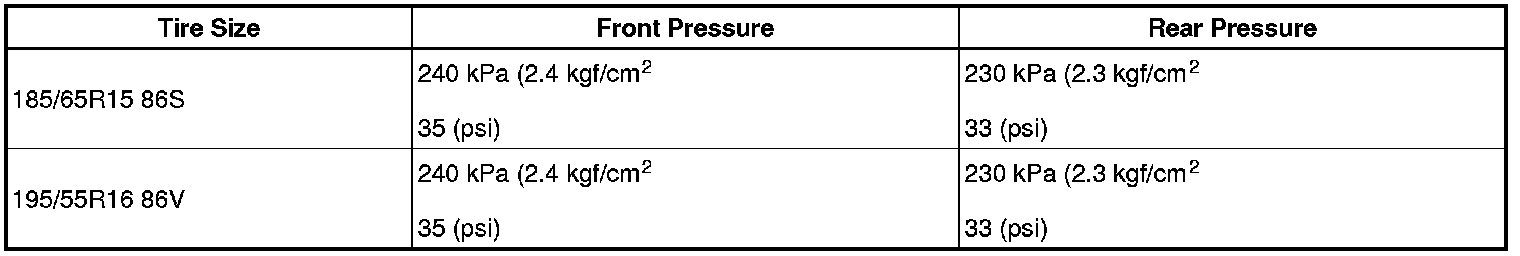

Standard cold tire inflation pressure:










(b) Using a dial indicator, check the tire runout (vertical and horizontal).
Standard tire runout:
1.4 mm (0.055 in.) or less





2. ROTATE TIRE

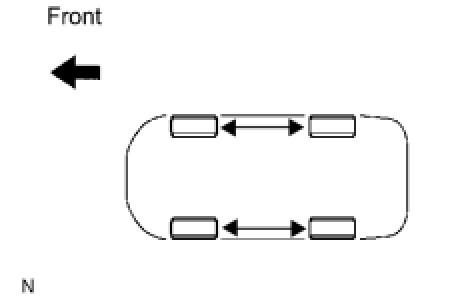

HINT: Rotate tires as shown in the illustration.

3. INSPECT WHEEL BALANCE

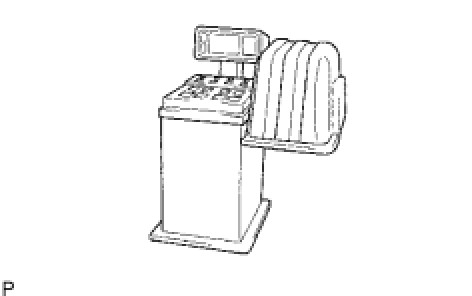

(a) Check and adjust the off-the-car balance.
(b) If necessary, check and adjust the on-the-car balance.
Standard imbalance after adjustment:
8.0 g (0.018 lb) or less
4. INSPECT BEARING BACKLASH
(a) Inspect the front bearing backlash Front Axle Hub.
5. INSPECT FOR AXLE HUB DEVIATION
(a) Inspect for front axle hub deviation Front Axle Hub.
6. INSPECT BEARING BACKLASH
(a) Inspect the rear bearing backlash Rear Axle Hub and Bearing.
7. INSPECT FOR AXLE HUB DEVIATION
(a) Inspect for rear axle hub deviation Rear Axle Hub and Bearing.
