Inspection

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

INSPECTION

1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

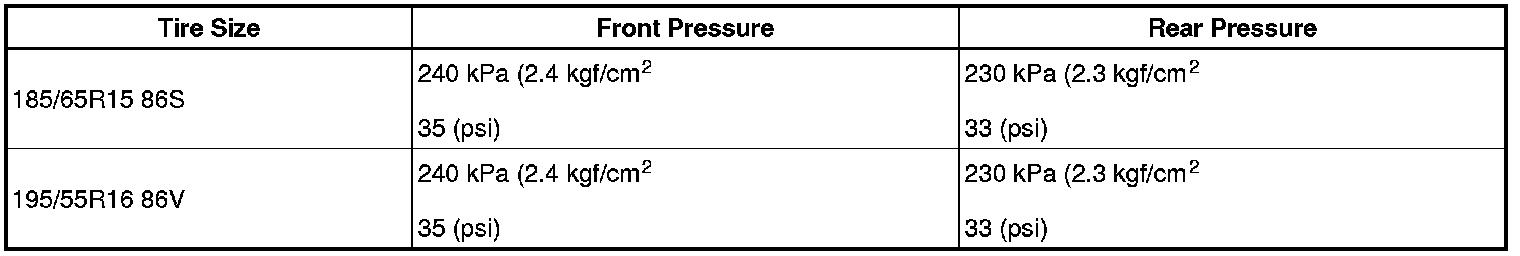

Standard cold tire inflation pressure:

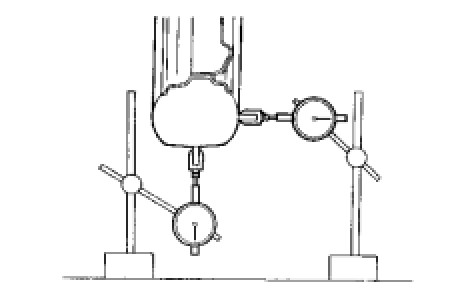

(b) Using a dial indicator, check the tire runout (vertical and horizontal).
Standard tire runout:
1.4 mm (0.055 in.) or less





2. ROTATE TIRE

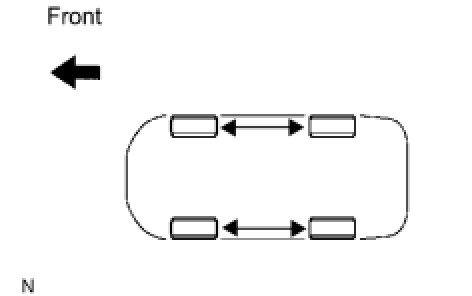

HINT: Rotate tires as shown in the illustration.

3. INSPECT WHEEL BALANCE

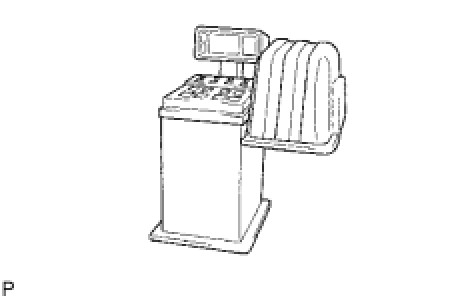

(a) Check and adjust the off-the-car balance.
(b) If necessary, check and adjust the on-the-car balance.
Standard imbalance after adjustment:
8.0 g (0.018 lb) or less
4. INSPECT BEARING BACKLASH
(a) Inspect the front bearing backlash .
5. INSPECT FOR AXLE HUB DEVIATION
(a) Inspect for front axle hub deviation .
6. INSPECT BEARING BACKLASH
(a) Inspect the rear bearing backlash .
7. INSPECT FOR AXLE HUB DEVIATION
(a) Inspect for rear axle hub deviation .
