Computers and Control Systems: Description and Operation

1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM

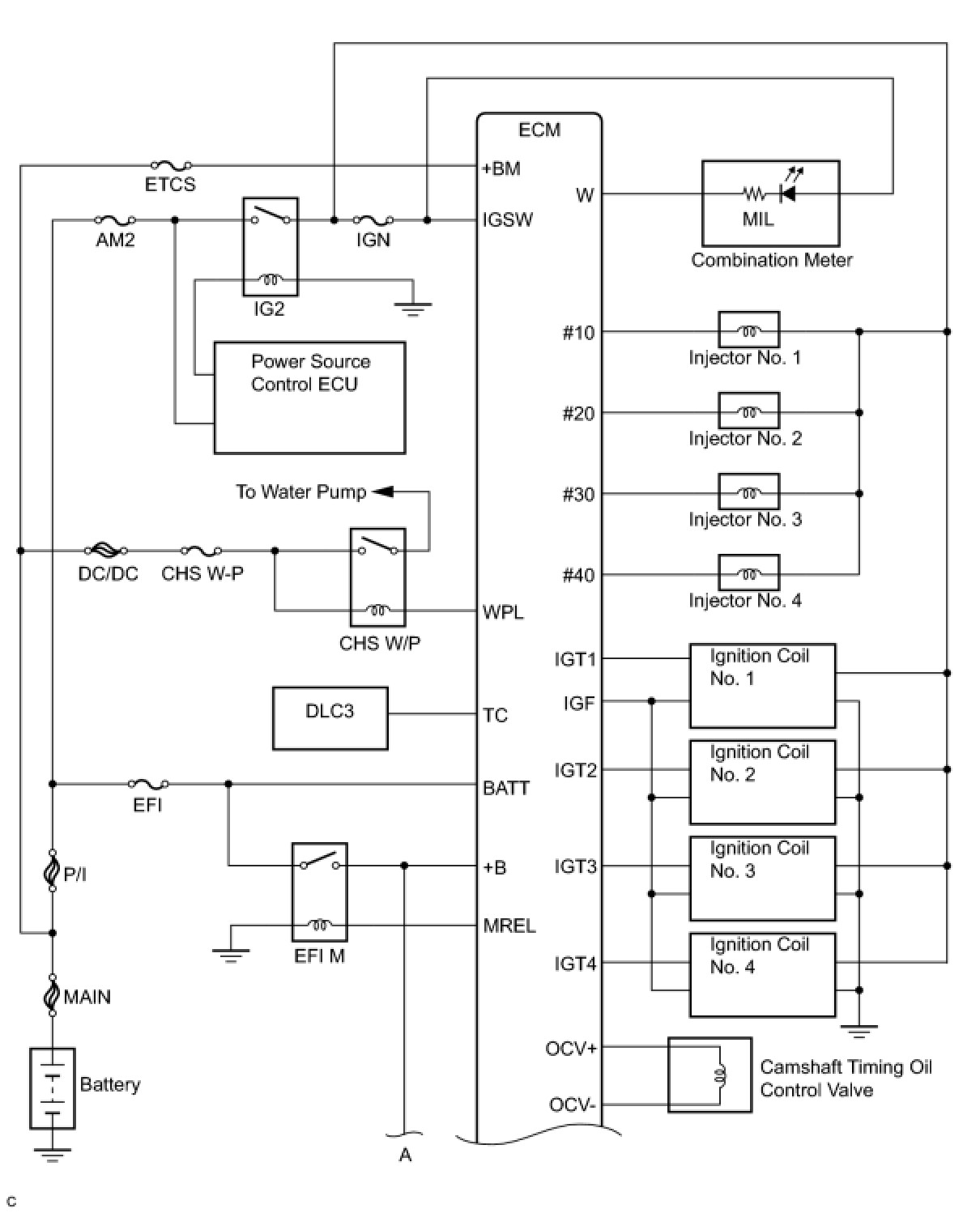

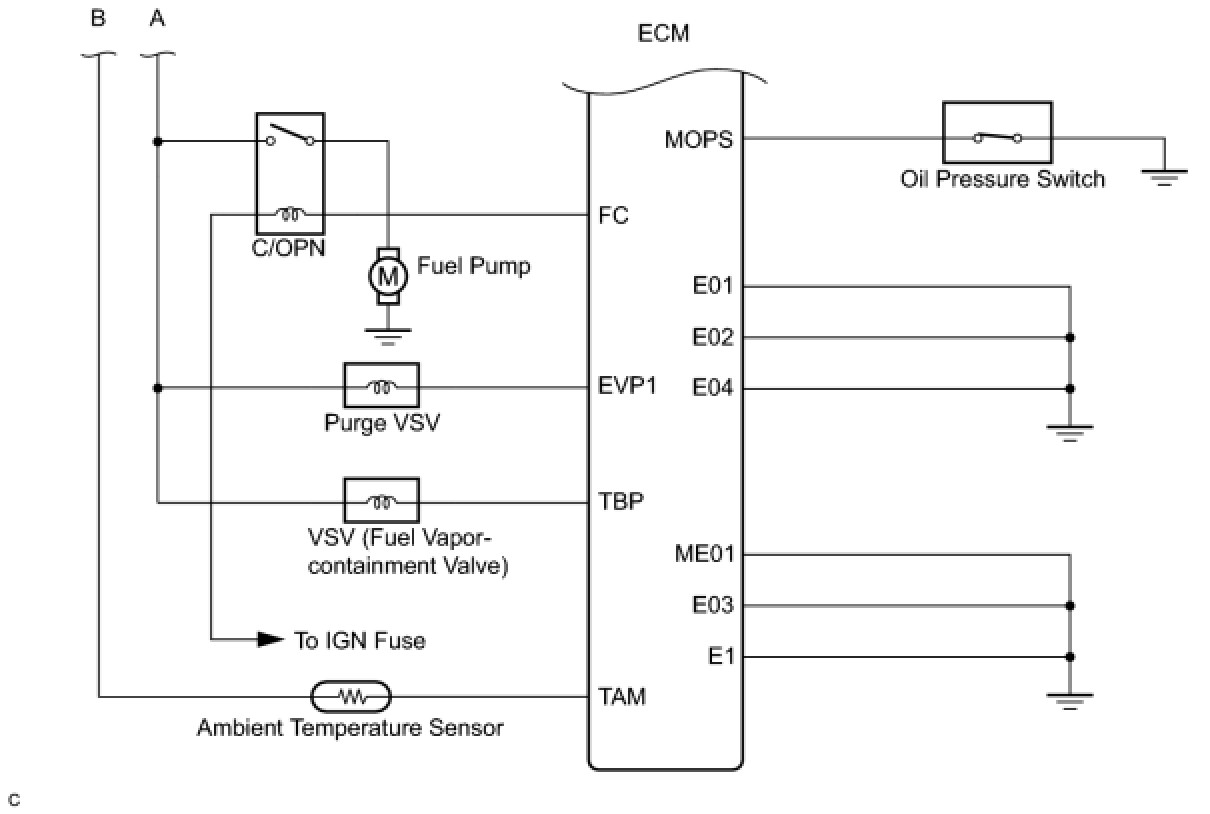

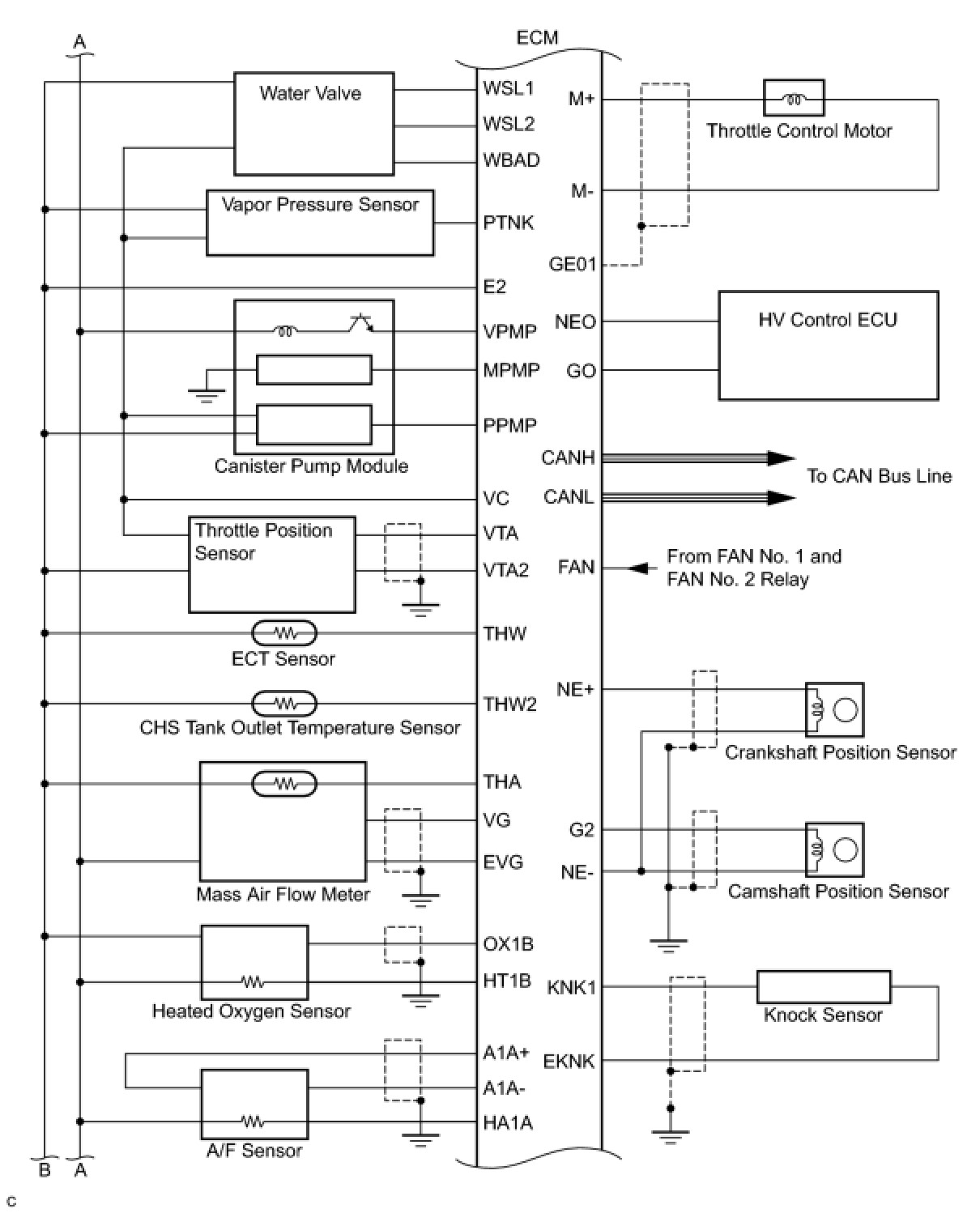

SYSTEM DIAGRAM

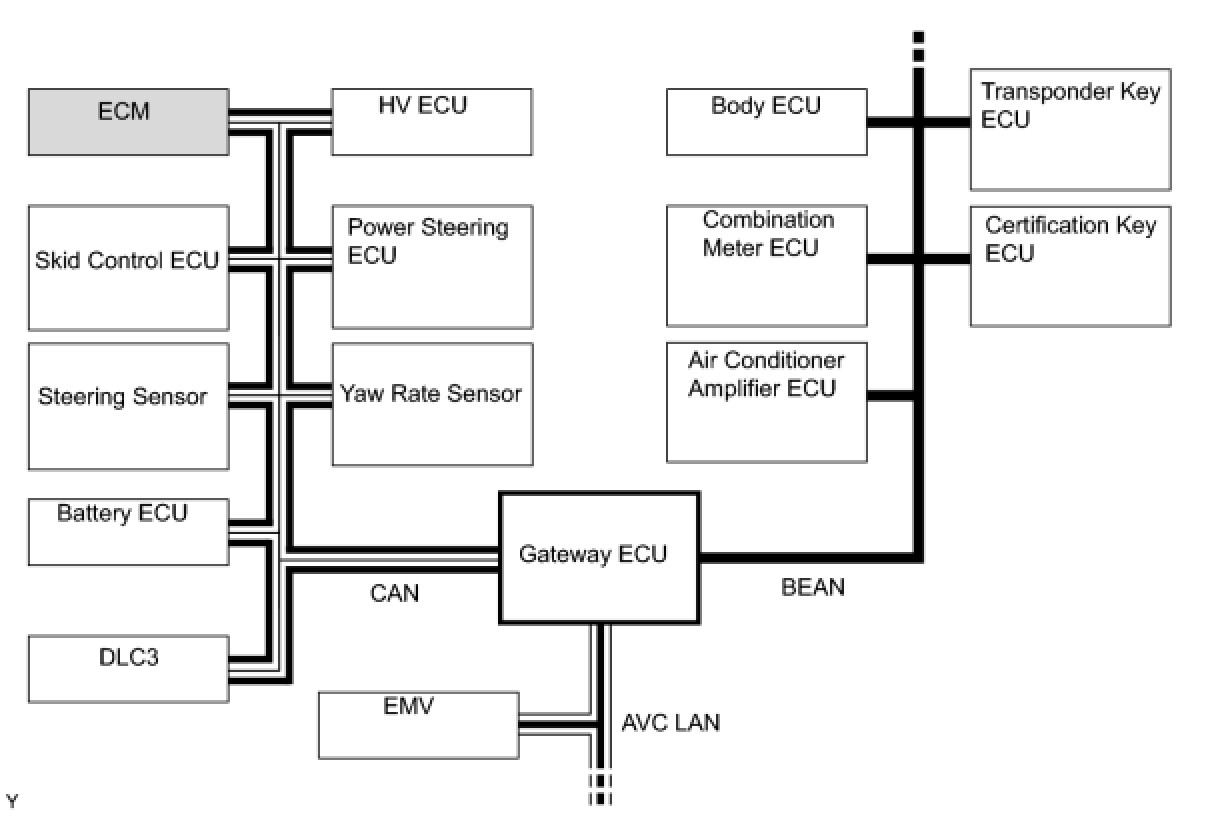

COMMUNICATIONS

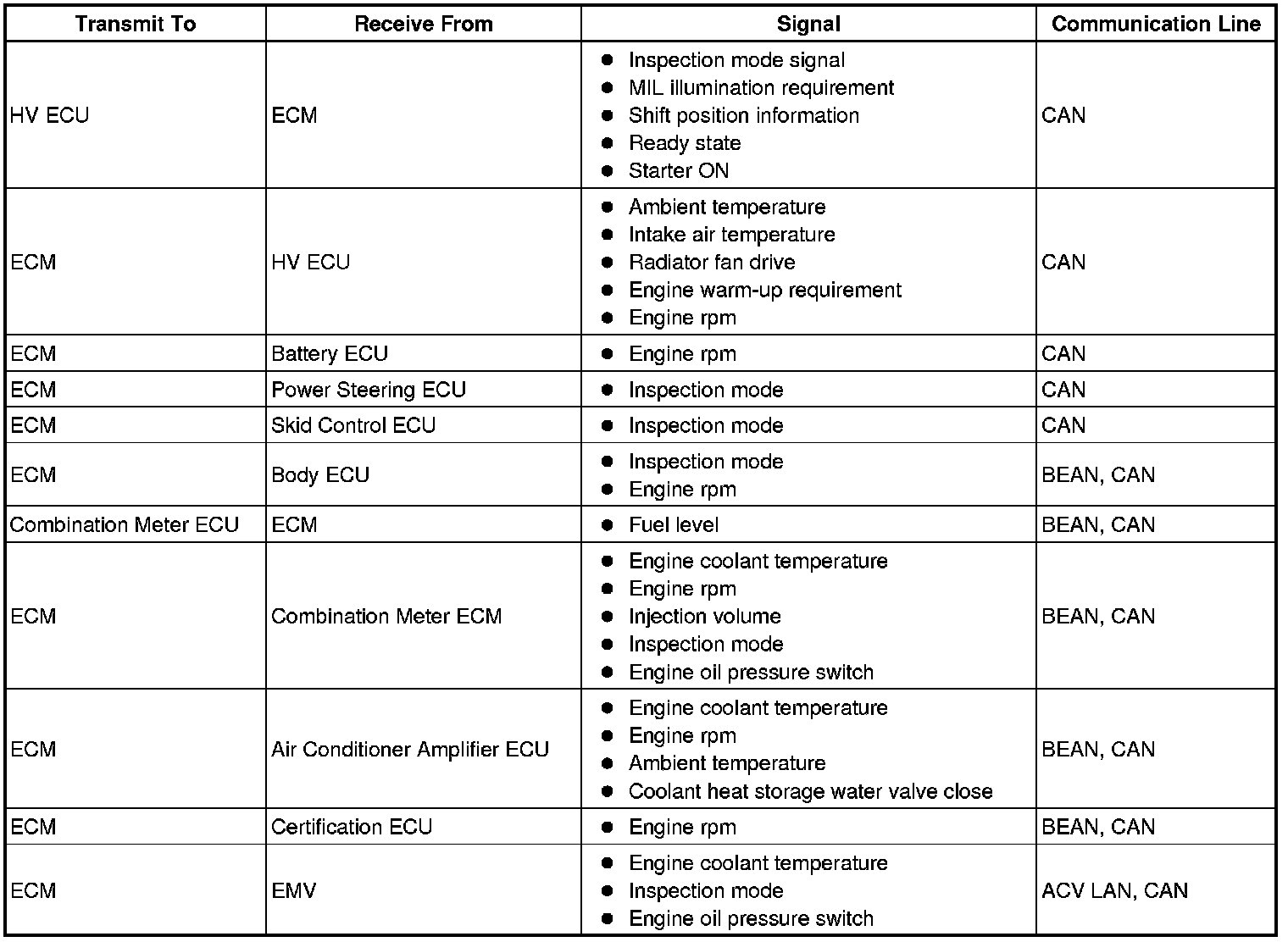

The ECM communicates with the following ECM and ECUs using the signals listed below. The following table explains receiving and sending signals by ECM or ECU.
