Battery ECU Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Battery ECU Communication Stop Mode

Battery ECU Communication Stop Mode

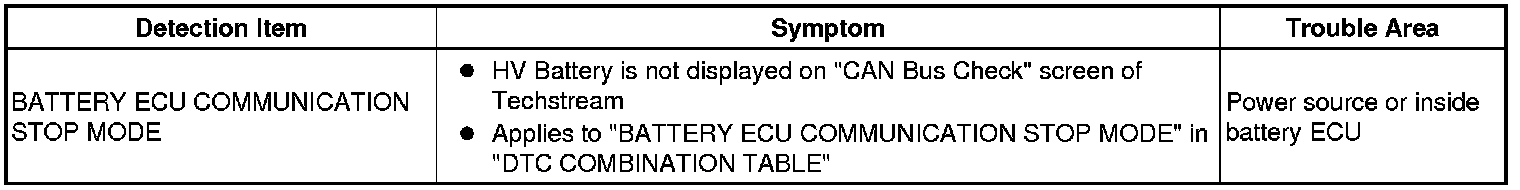

DESCRIPTION

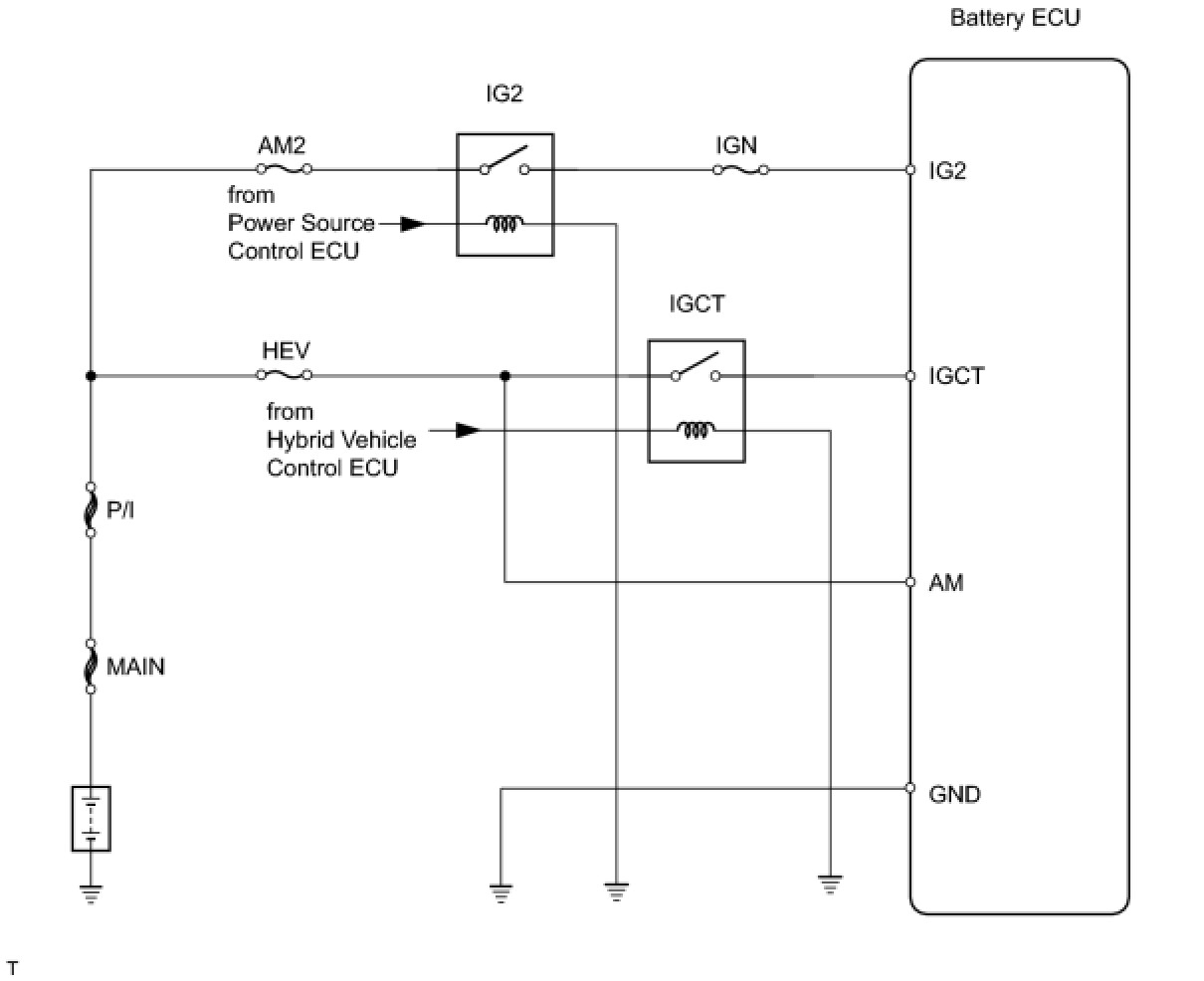

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (BATTERY ECU - BATTERY AND BODY GROUND)

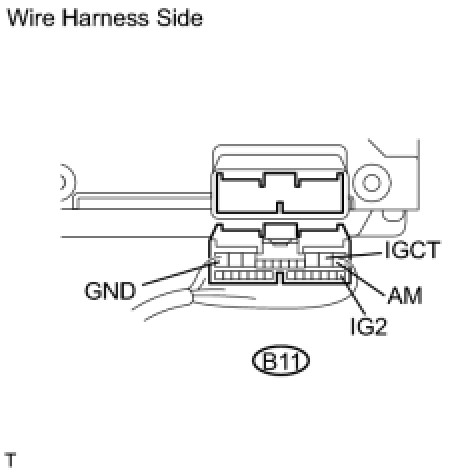

(a) Measure the resistance of the wire harness side connector.
Standard resistance:

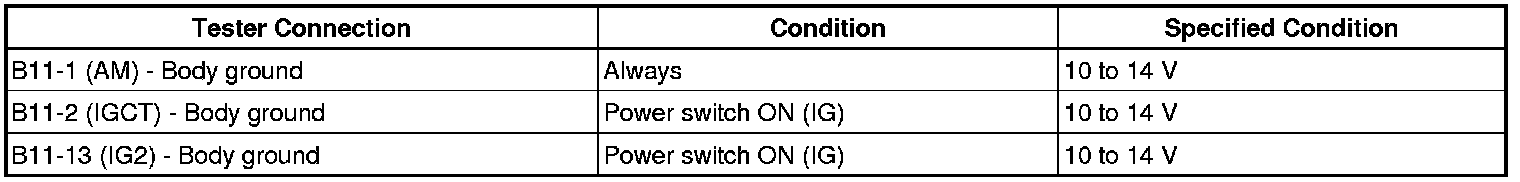

(b) Measure the voltage of the wire harness side connector.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE BATTERY ECU
