CAN Communication System

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU
HINT: This section describes the standard CAN values for all CAN related components.

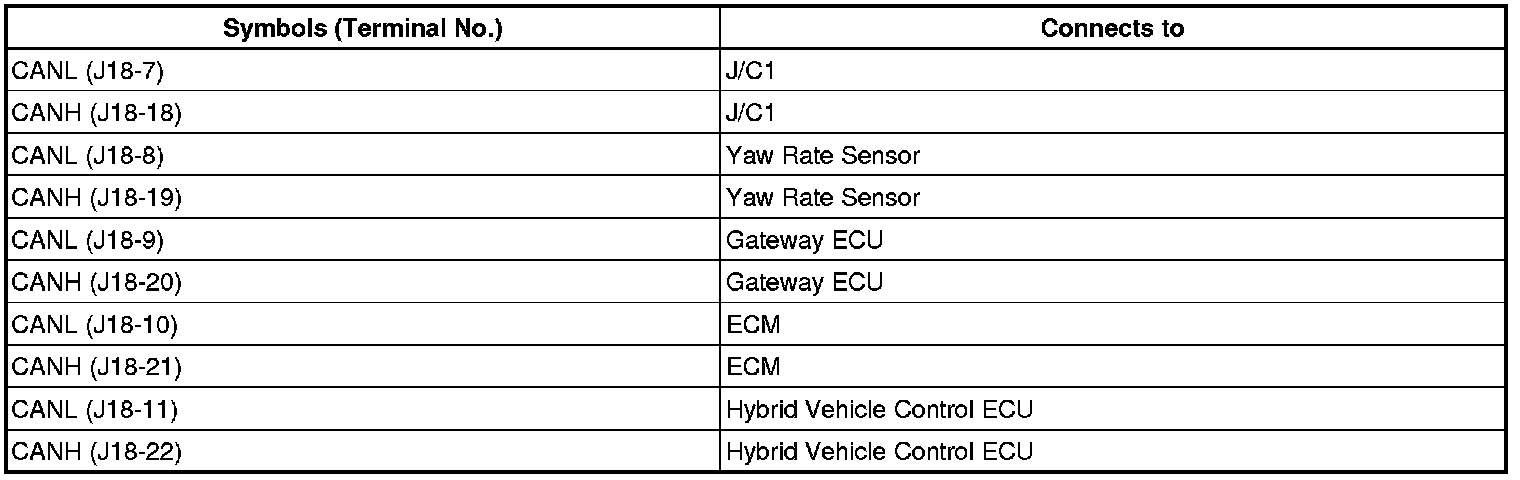

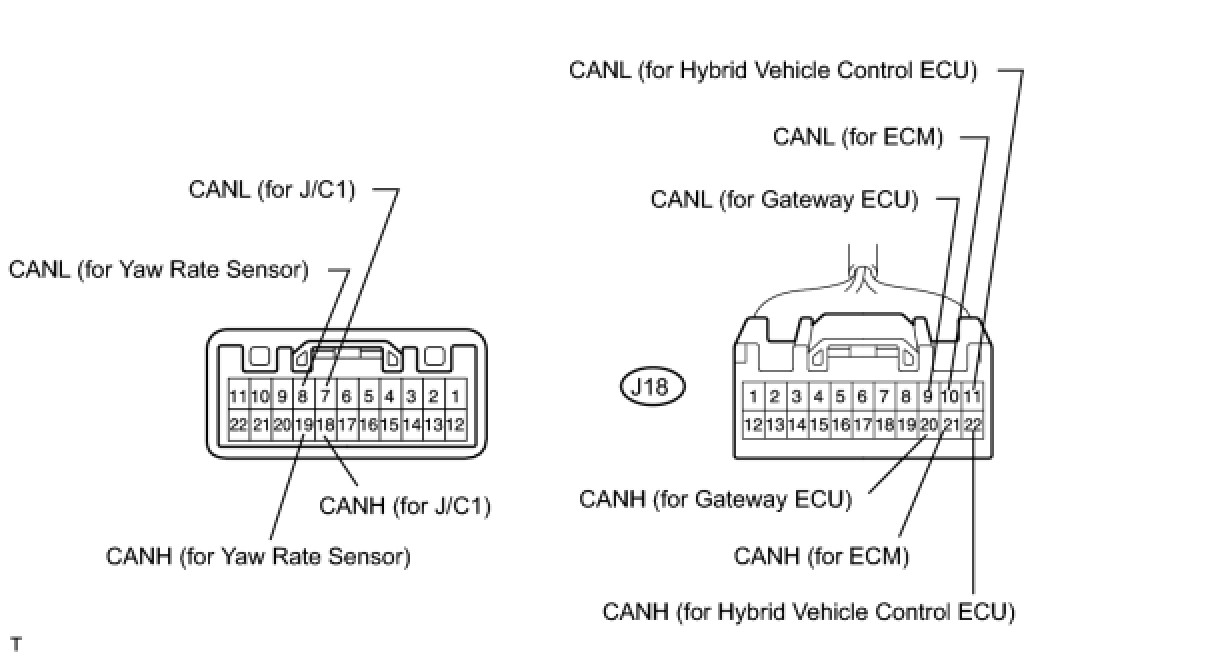

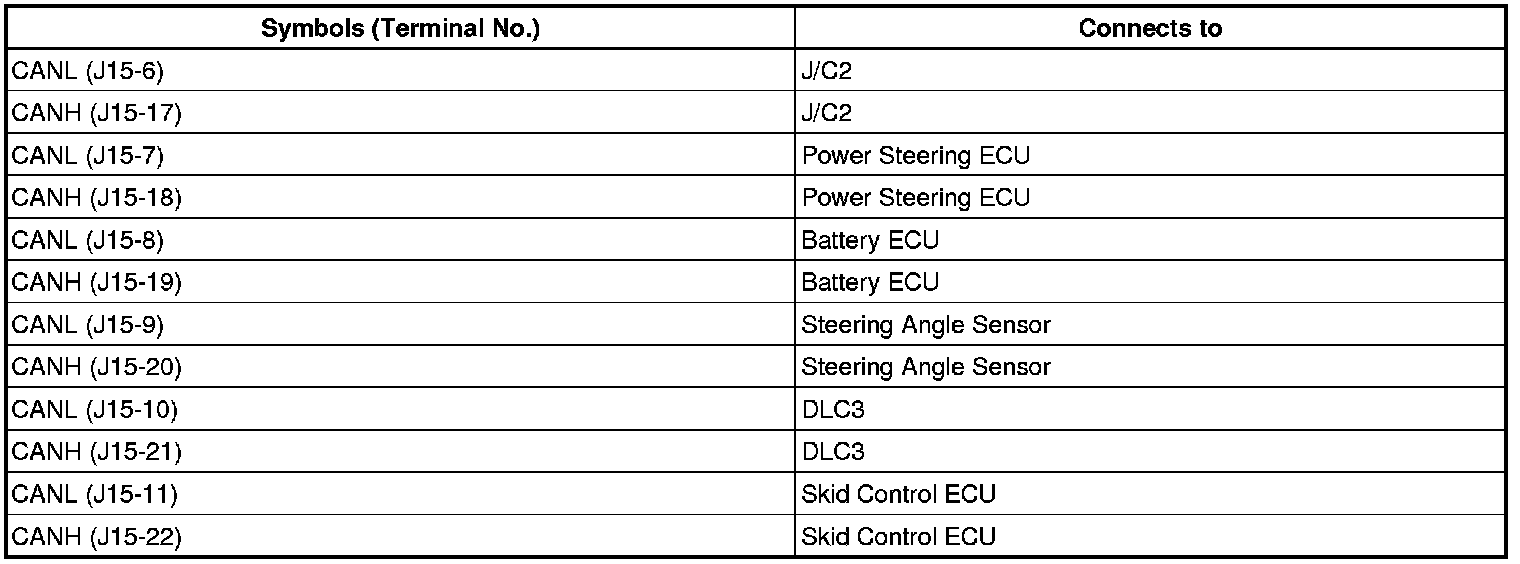

1. JUNCTION CONNECTOR (J/C1)





(a) Terminal arrangement and connection.

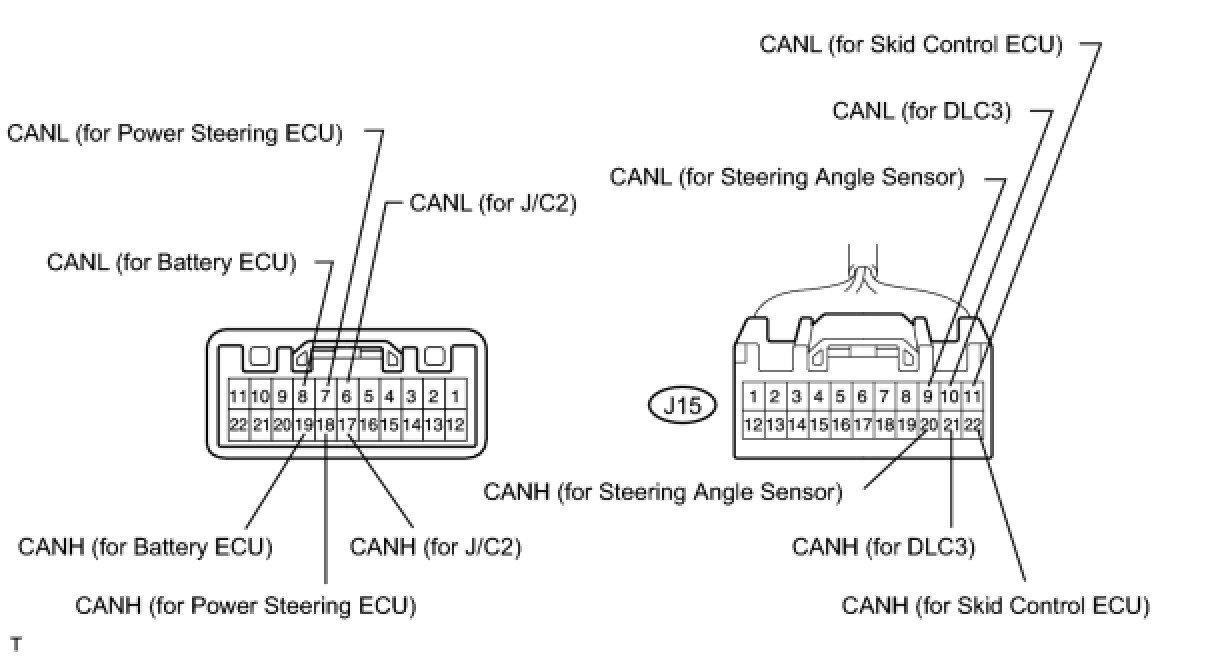

2. JUNCTION CONNECTOR (J/C2)





(a) Terminal arrangement and connection

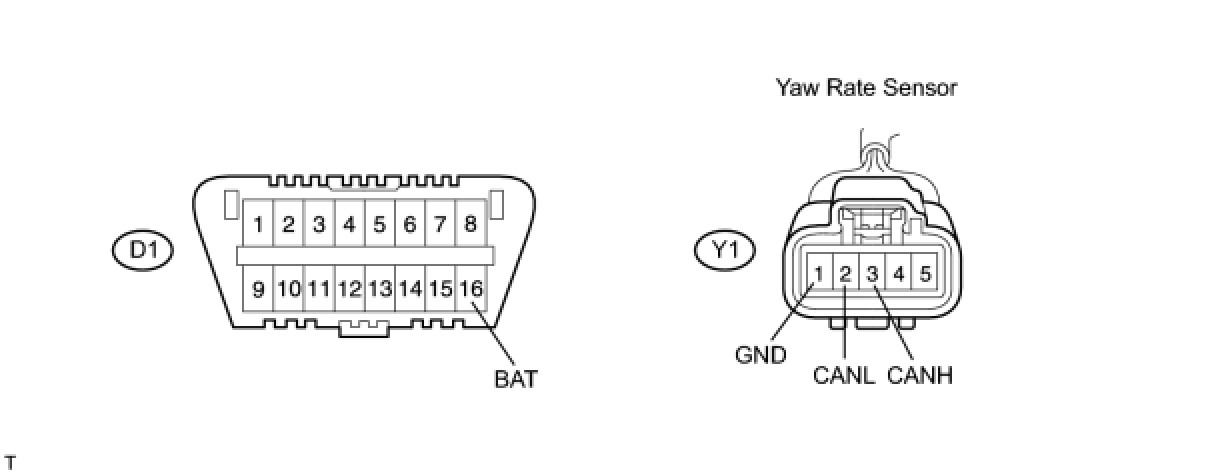

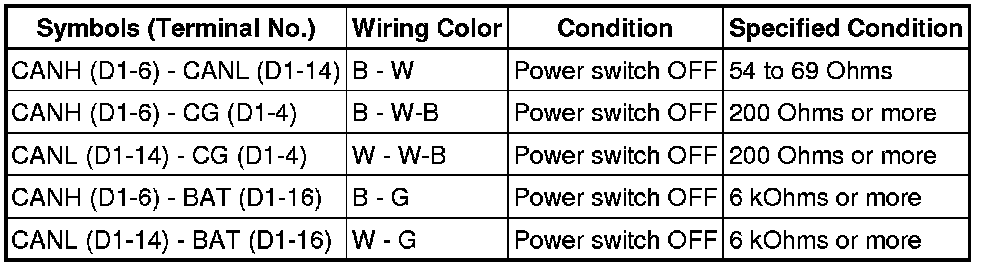

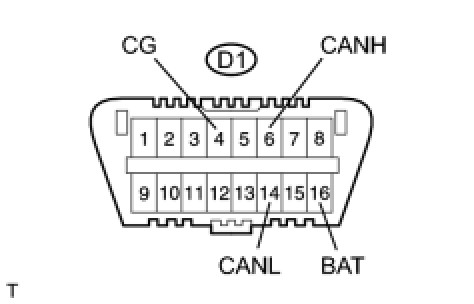

3. CHECK DLC3
(a) Measure the resistance of the connector.

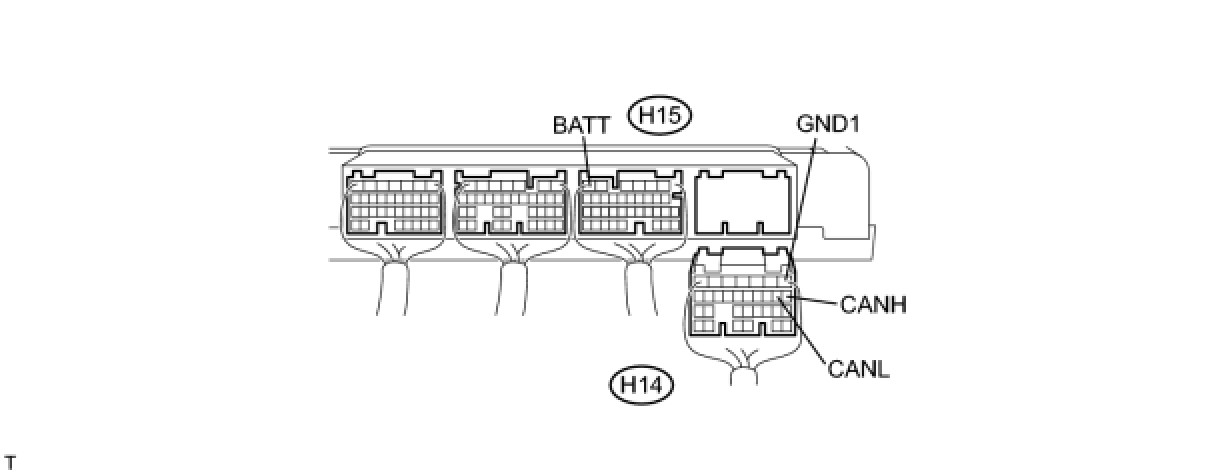

4. CHECK HYBRID VEHICLE CONTROL ECU





(a) Disconnect the H14 ECU connector.
(b) Measure the resistance of the wire harness side connectors.

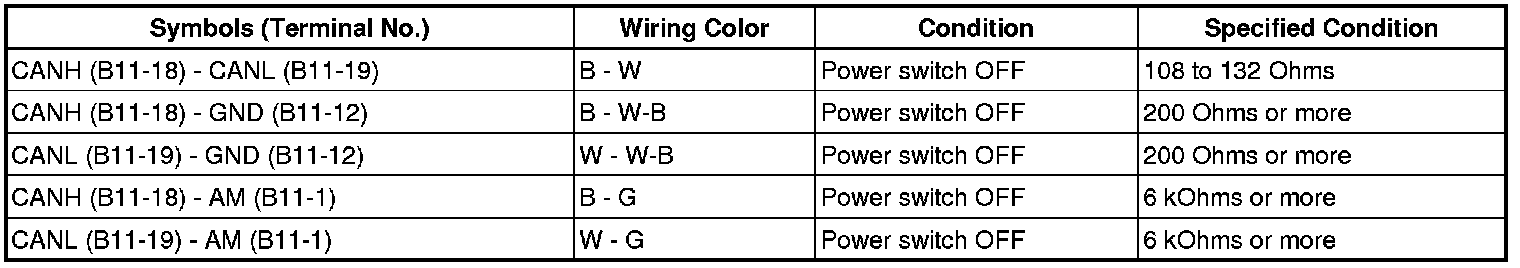

5. CHECK BATTERY ECU

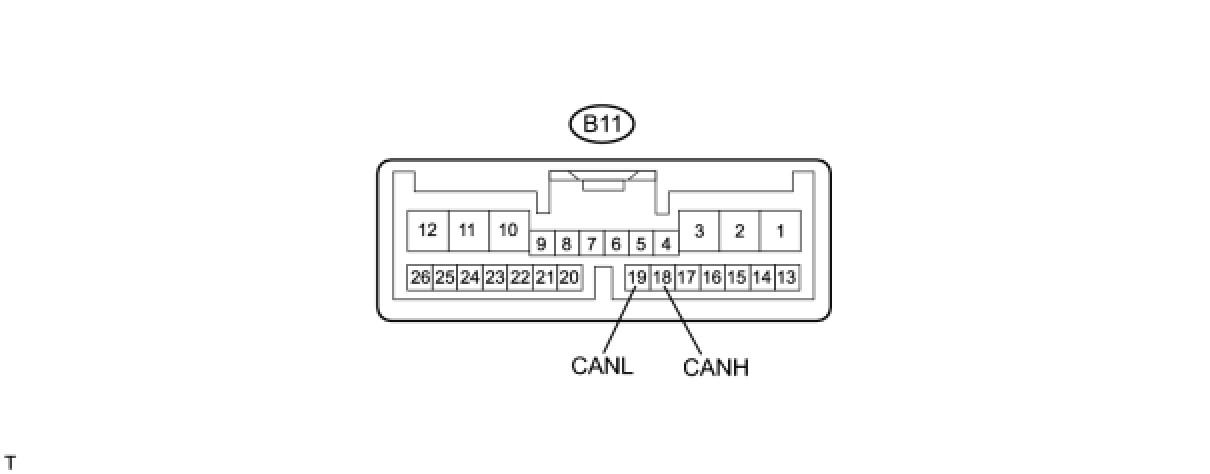

(a) Measure the resistance of the connector.

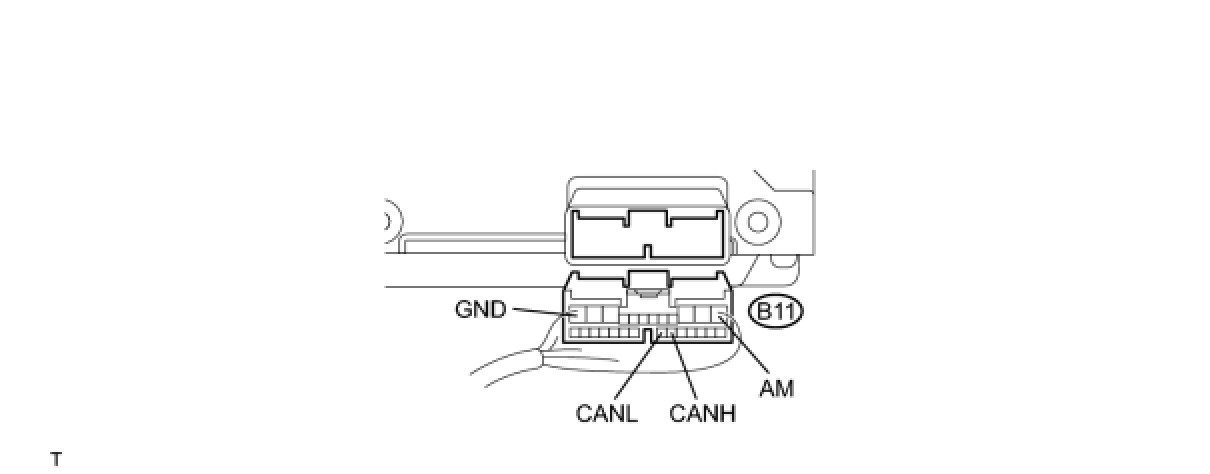

(b) Disconnect the B11 ECU connector.





(c) Measure the resistance of the wire harness side connector.

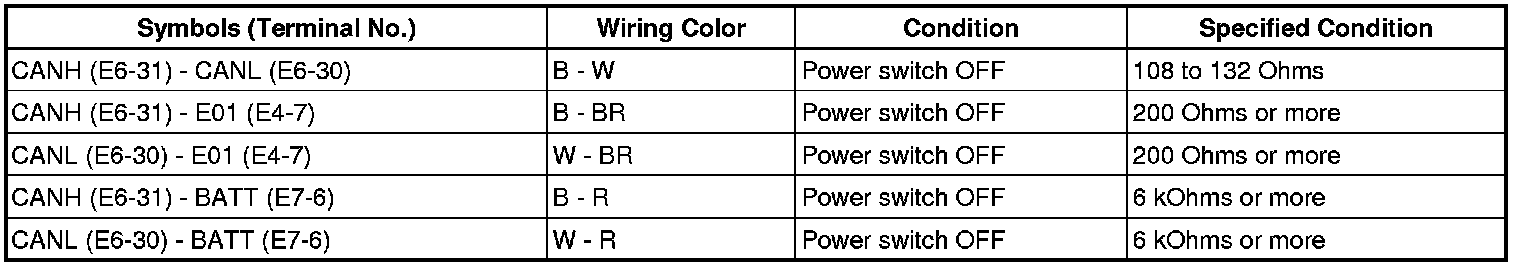

6. CHECK ECM





(a) Measure the resistance of the connector.

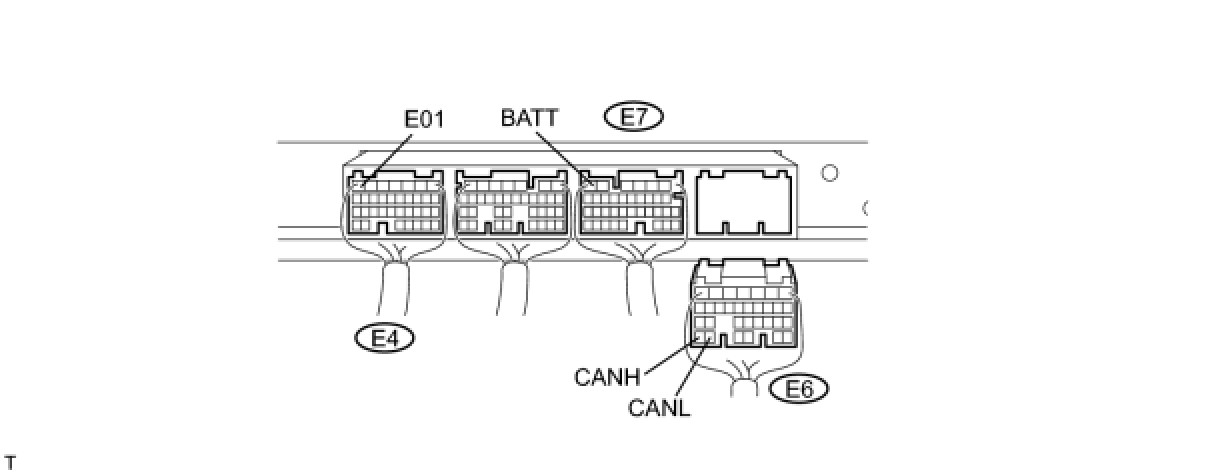

(b) Disconnect the E6 ECM connector.
(c) Measure the resistance of the wire harness side connectors.

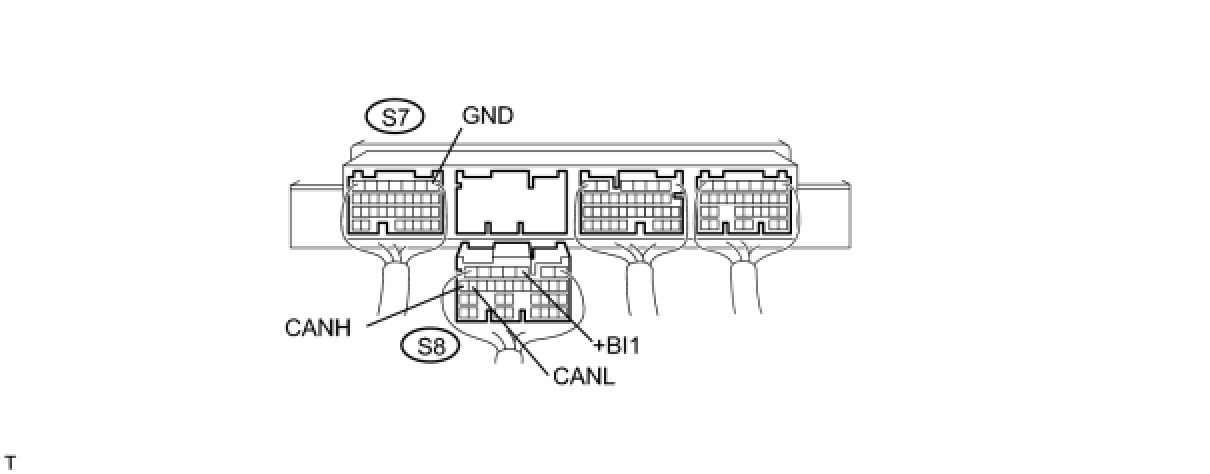

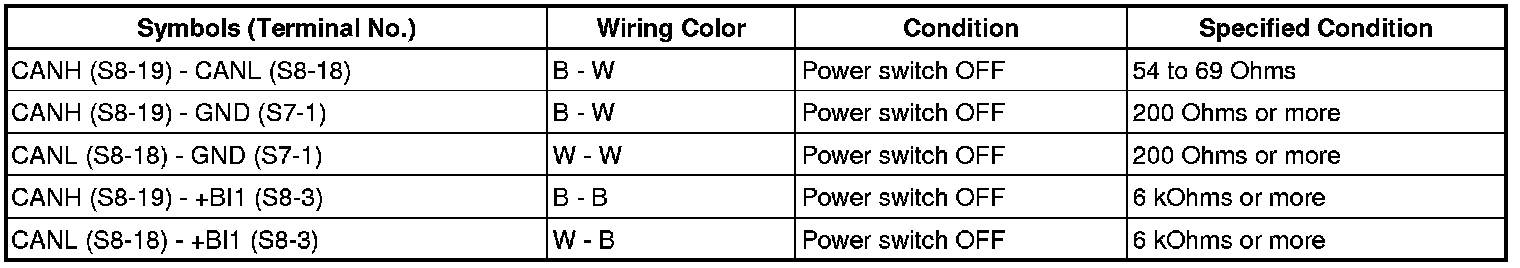

7. CHECK SKID CONTROL ECU





(a) Disconnect the S8 ECU connector.
(b) Measure the resistance of the wire harness side connectors.

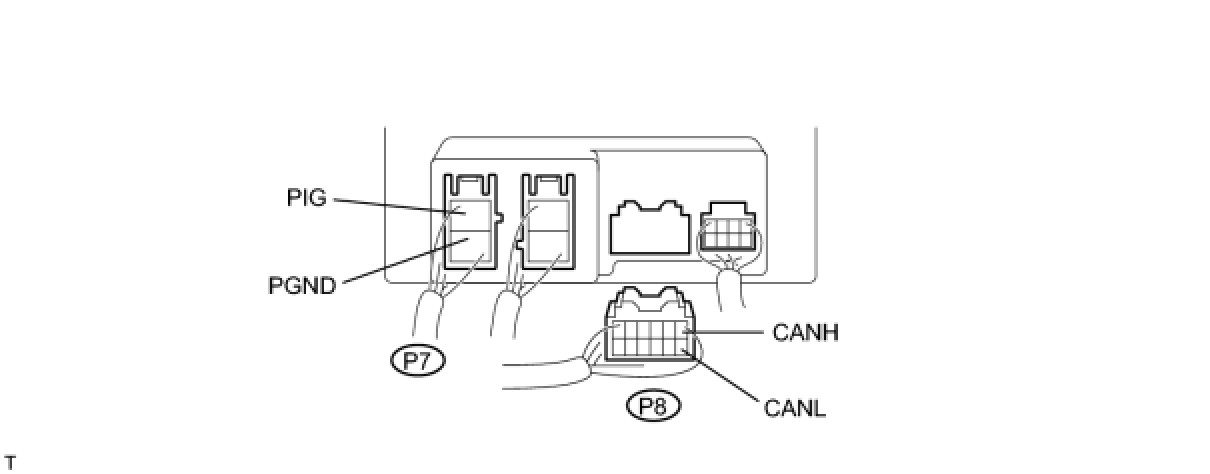

8. CHECK POWER STEERING ECU





(a) Disconnect the P8 ECU connector.
(b) Measure the resistance of the wire harness side connectors.

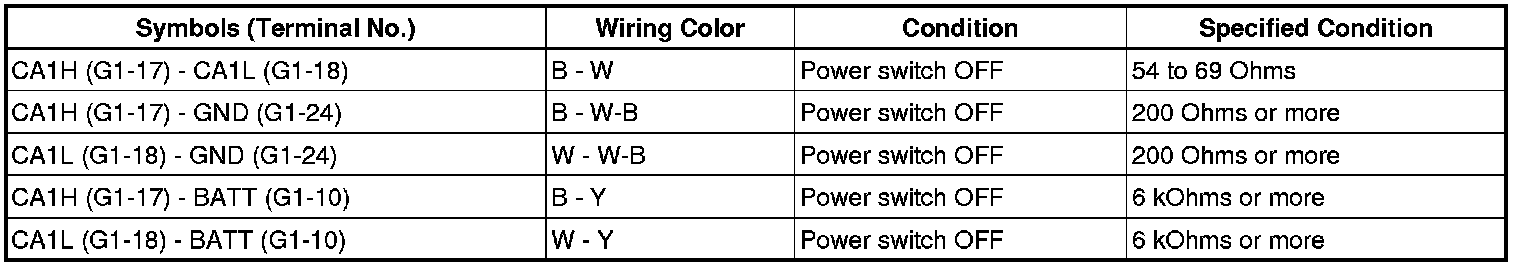

9. CHECK GATEWAY ECU

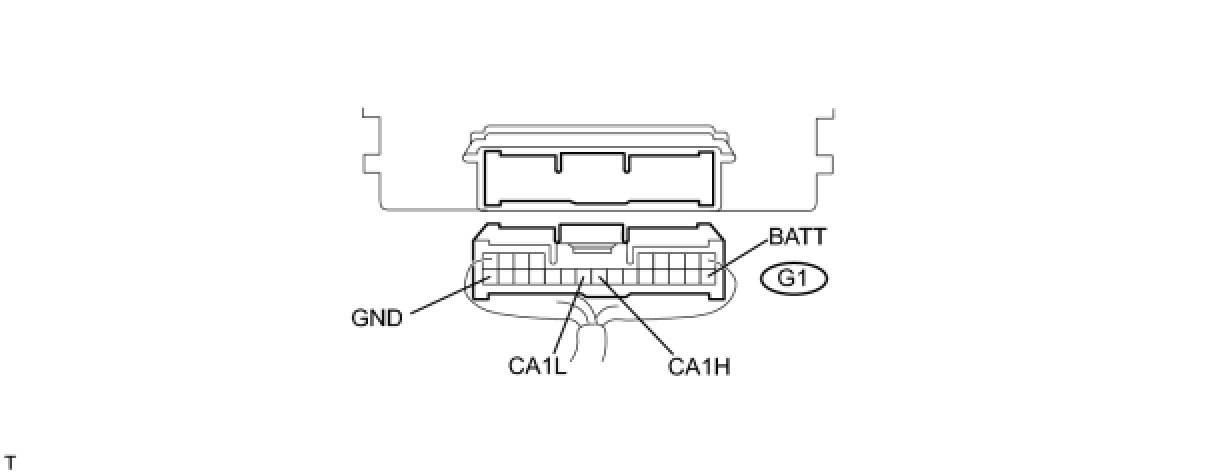

(a) Disconnect the G1 ECU connector.
(b) Measure the resistance of the wire harness side connector.

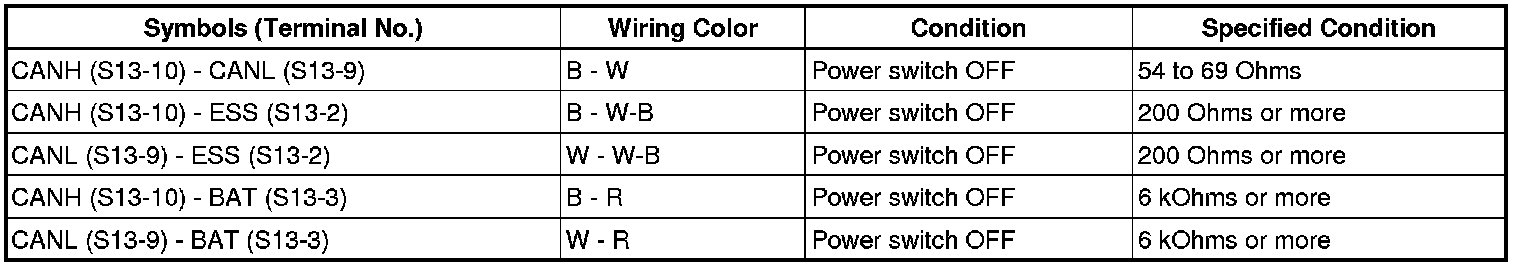

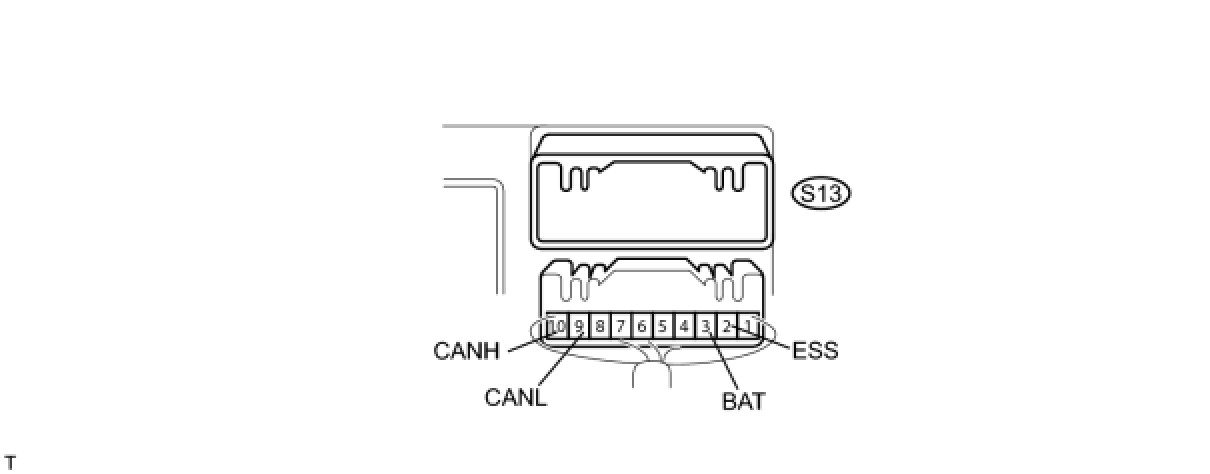

10. CHECK STEERING ANGLE SENSOR





(a) Disconnect the S13 sensor connector.
(b) Measure the resistance of the wire harness side connector.

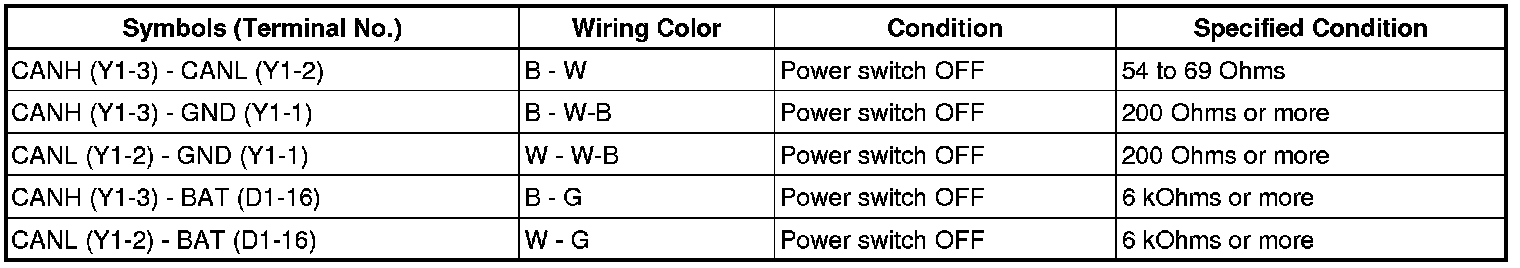

11. CHECK YAW RATE SENSOR





(a) Disconnect the Y1 sensor connector.
(b) Measure the resistance of the wire harness side connector.
