1NZ-FXE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

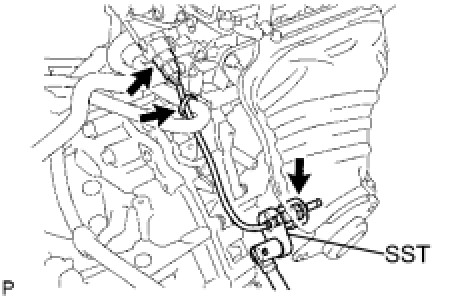

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
(a) Using SST, install the sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)for use with SST
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)for use without SST
HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

(b) Connect the sensor connector.
(c) Install the wire harness clamp to the sensor.
2. INSTALL CONVERTER WITH INVERTER ASSEMBLY Installation
3. CONNECT FRAME WIRE Installation
4. CONNECT NO. 1 CIRCUIT BREAKER SENSOR Installation
5. CONNECT NO. 6 INVERTER COOLING HOSE
6. CONNECT NO. 1 INVERTER COOLING HOSE
7. CONNECT NO. 2 INVERTER COOLING HOSE
8. INSTALL INVERTER COVER Installation
9. INSTALL FRONT COWL TOP PANEL OUTER Installation
10. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
11. INSTALL COWL TOP VENTILATOR LOUVER RH
12. INSTALL COWL TOP VENTILATOR LOUVER LH
13. INSTALL HOOD TO COWL TOP SEAL
14. INSTALL FRONT WIPER ARM LH Installation
15. INSTALL FRONT WIPER ARM RH Installation
16. INSTALL FRONT WIPER ARM COVER
17. INSTALL REAR NO. 3 FLOOR BOARD Installation
18. INSTALL REAR DECK FLOOR BOX Installation
19. INSTALL REAR NO. 2 FLOOR BOARD Installation
20. INSTALL SERVICE PLUG GRIP Installation
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
22. ADD COOLANT (for Inverter) Coolant (for Inverter)
23. INSPECT FOR COOLANT LEAK (for Inverter) Coolant (for Inverter)
24. INSTALL ENGINE UNDER COVER RH
25. INSTALL ENGINE UNDER COVER LH
26. INSTALL RADIATOR SUPPORT OPENING COVER Testing and Inspection
27. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
