Crankshaft Position Sensor: Testing and Inspection

1NZ-FXE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

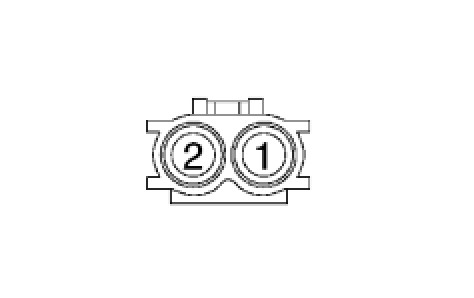

(a) Measure the resistance of the sensor.

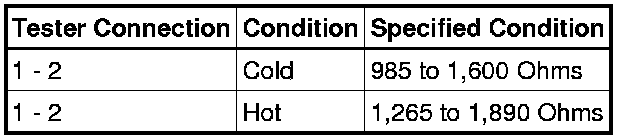

Standard resistance:





NOTE: The terms "Cold" and "Hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the result is not as specified, replace the crankshaft position sensor.
