Removal

1NZ-FXE EMISSION CONTROL: FUEL TANK PRESSURE SENSOR: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL Removal
6. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
7. REMOVE REAR FLOOR SERVICE HOLE COVER Removal
8. REMOVE FRONT FLOOR PANEL BRACE Removal
9. REMOVE FRONT EXHAUST PIPE Removal
10. REMOVE FUEL TANK SUB-ASSEMBLY Removal
11. REMOVE FUEL TANK PRESSURE SENSOR

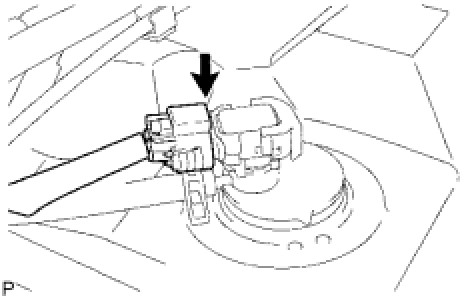

(a) Disconnect the fuel tank pressure sensor connector.

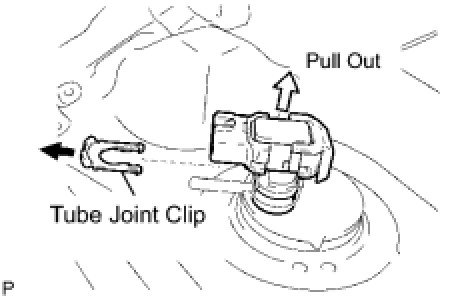

(b) Remove the tube joint clip, then pull out the fuel tank pressure sensor from the fuel tank retainer.




NOTICE:
- Remove dirt or foreign objects on fuel tank pressure sensor before this work.

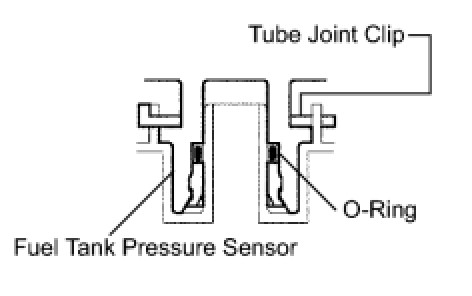

- Do not allow any scratches or foreign objects on the parts when disconnecting as the fuel tank pressure sensor has the O-ring that seals the plug.
- Perform this work by hand. Do not use any tools.
