1NZ-FXE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL Removal
6. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)





(a) Using a clip remover, remove the clip.

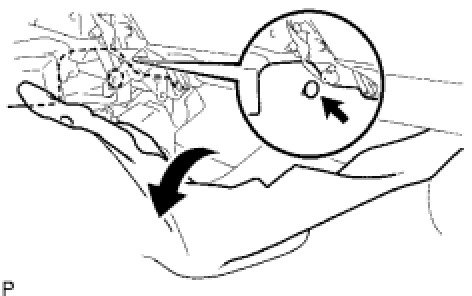

(b) Fold back the floor carpet front.





(c) Disconnect the sensor connector.
(d) Remove the grommet of the sensor from the vehicle.





(e) Remove the wire harness clamp bracket from the sensor.

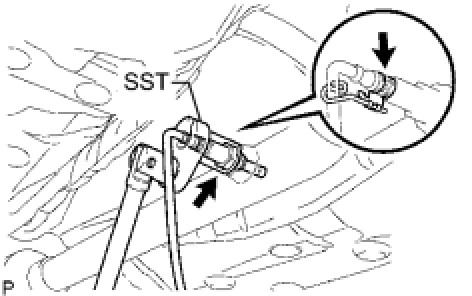

(f) Using SST, remove the sensor.
SST: 09224-00010
