Fail-Safe Chart








1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: FAIL-SAFE CHART

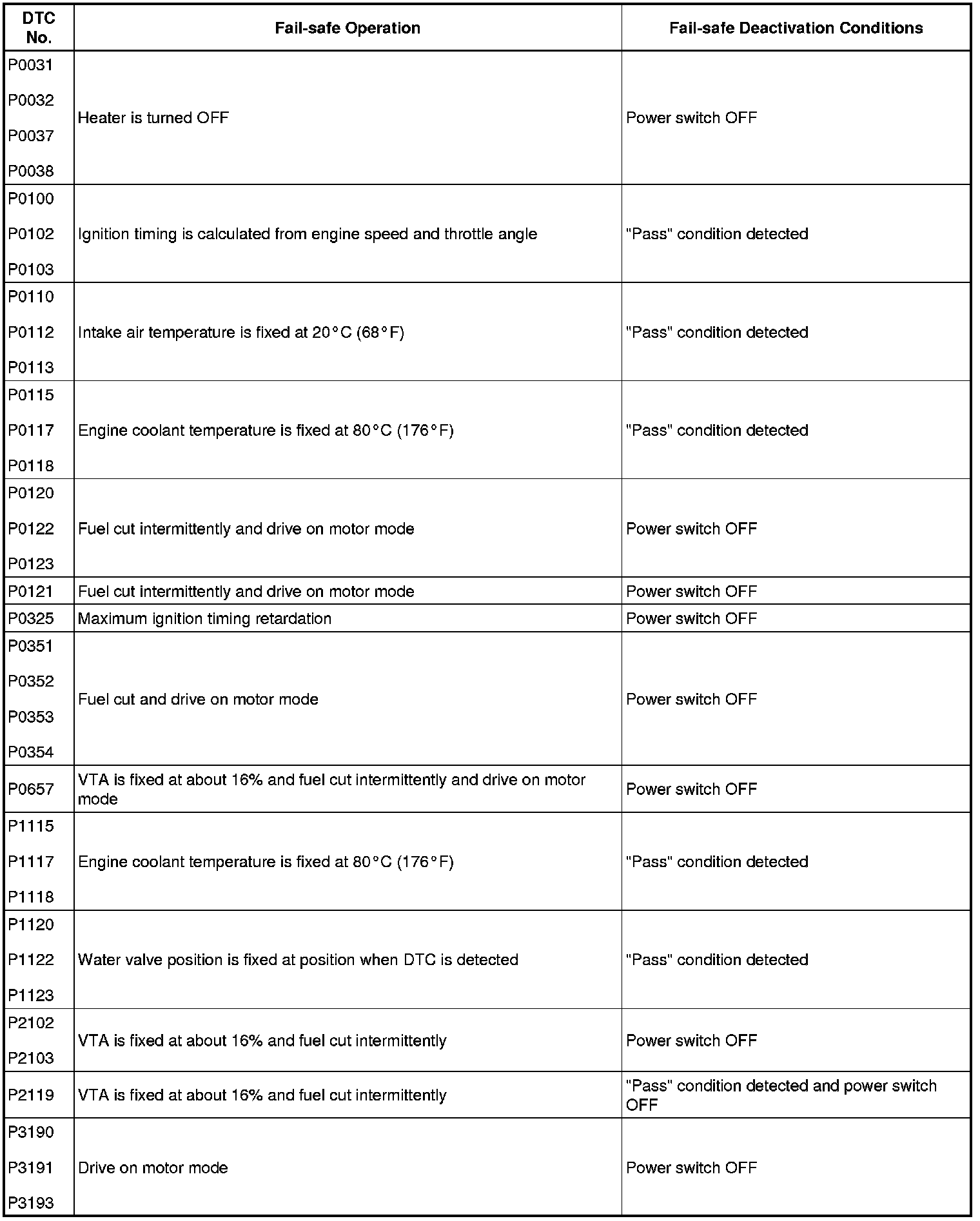

FAIL-SAFE CHART

If any of the following codes are recorded, the ECM enters fail-safe mode.
