Symptom Related Diagnostic Procedures

1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: PROBLEM SYMPTOMS TABLE

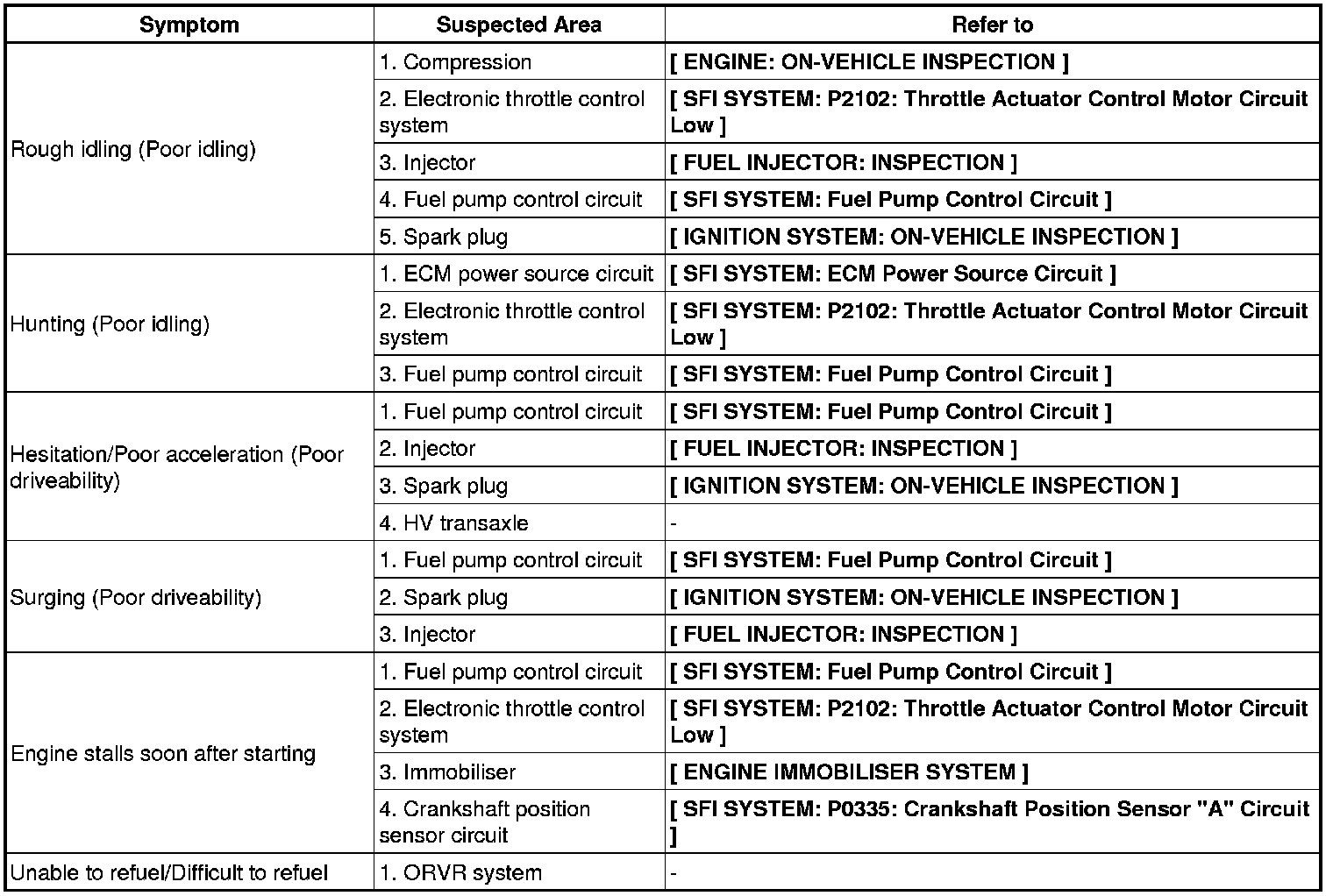

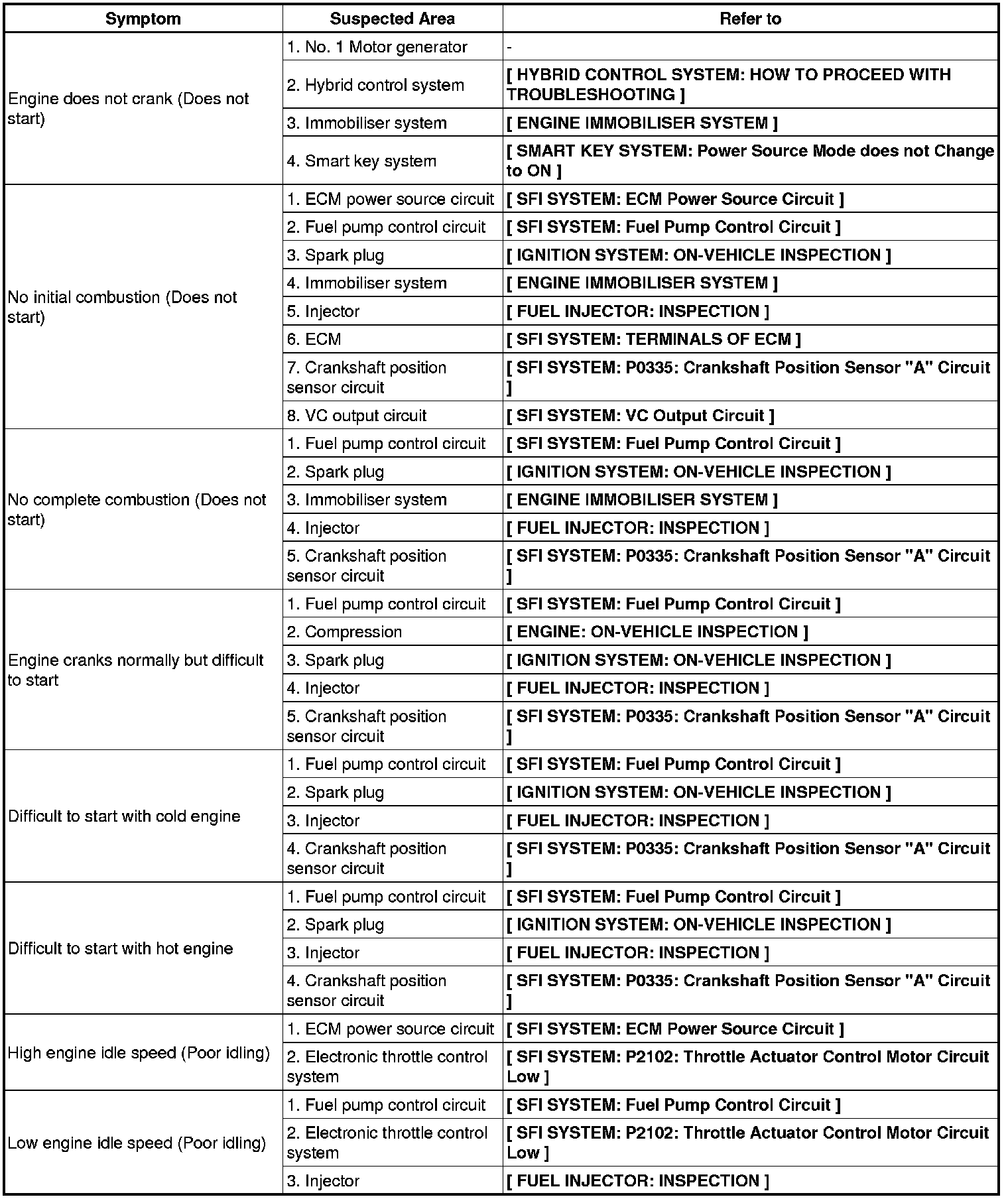

PROBLEM SYMPTOMS TABLE

When the malfunction is not confirmed in the diagnostic trouble code check and the problem still cannot be confirmed in the basic inspection, use this table and troubleshoot according to the priority order given below.

SFI SYSTEM:
