Emission Control Systems: Description and Operation

1NZ-FXE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

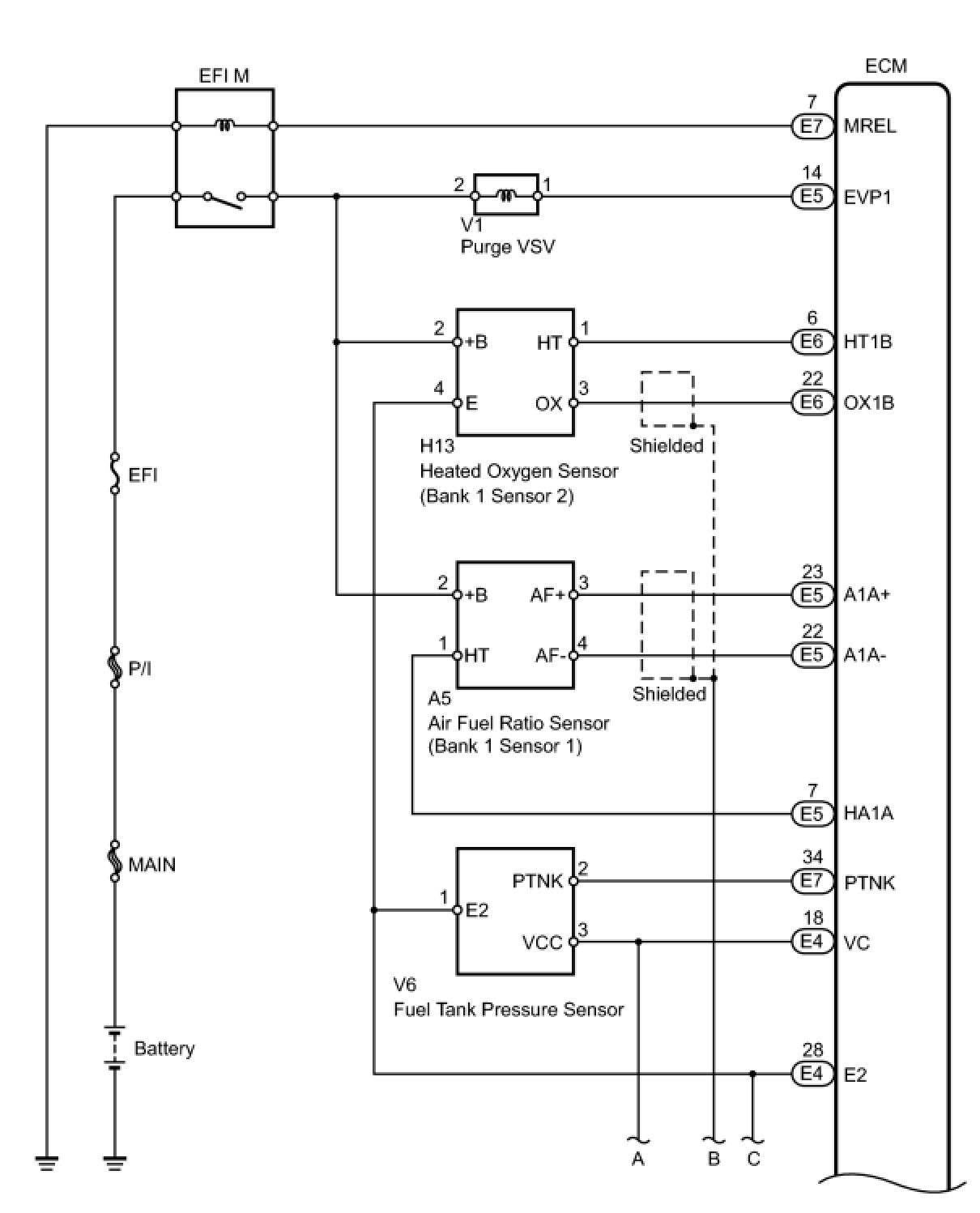

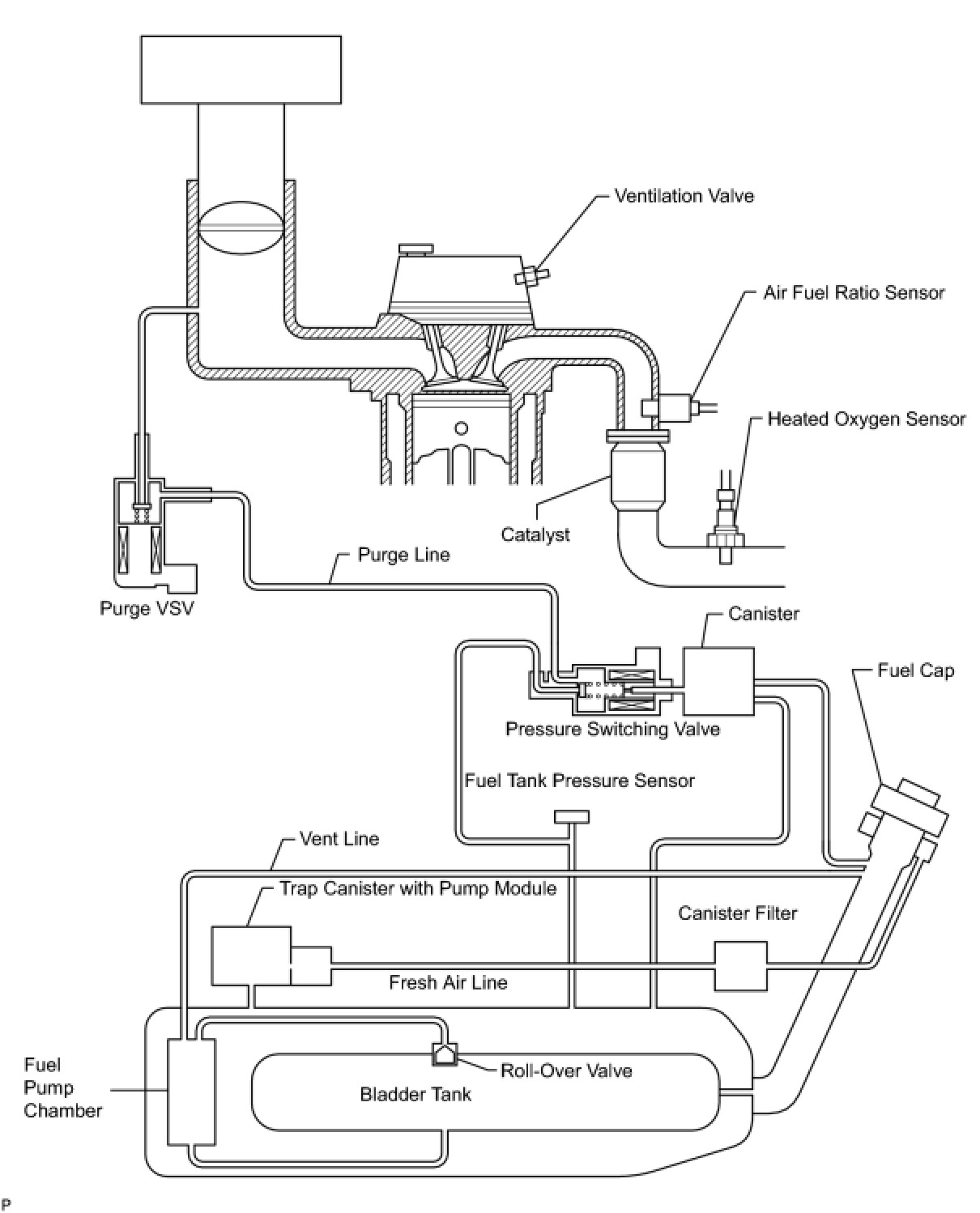

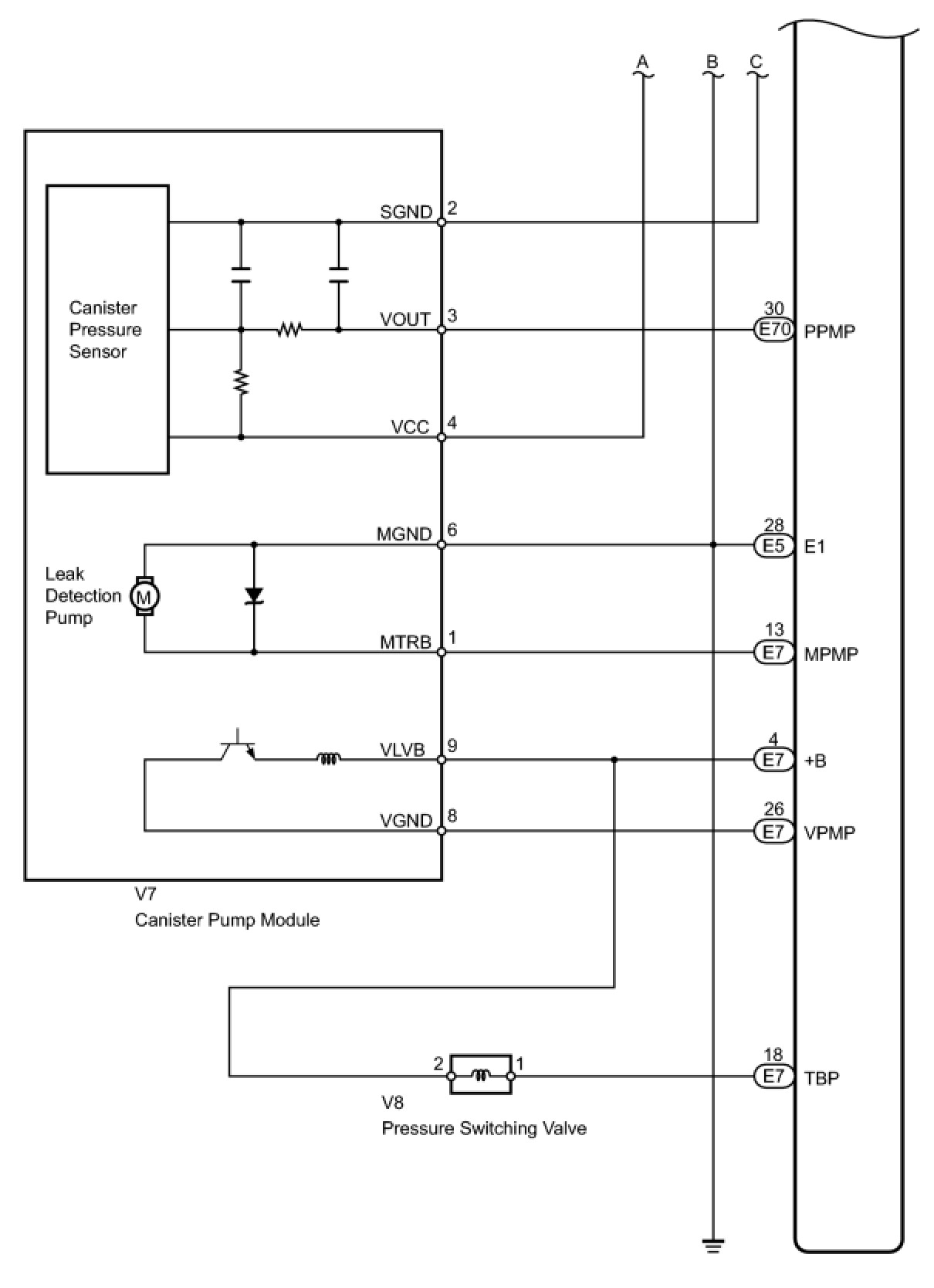

The emission control system is controlled by the ECM based on signals from various sensors.
