1NZ-FXE EMISSION CONTROL: PURGE FLOW SWITCHING VALVE: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE PRESSURE SWITCHING VALVE

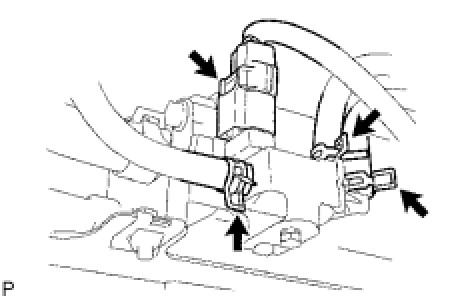

(a) Disconnect the pressure switching valve connector.
(b) Disconnect the 3 canister hoses from the pressure switching valve.

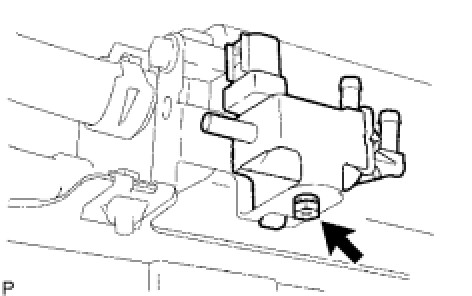

(c) Remove the bolt, then remove the pressure switching valve.
