Installation

1NZ-FXE EMISSION CONTROL: TRAP CANISTER: INSTALLATION

INSTALLATION

1. INSTALL TRAP CANISTER WITH PUMP MODULE





(a) Install the fuel tank vent hose.

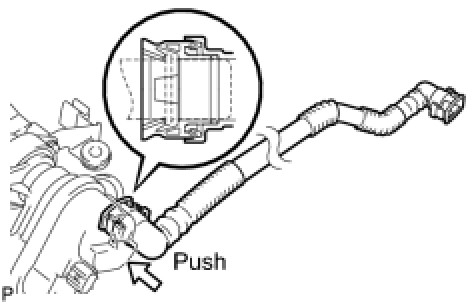

(1) Align the fuel tank vent hose connector with the pipe, then push in the fuel tank vent hose connector until the retainer makes a "click" sound to install the fuel tank vent hose to the trap canister with pump module.
NOTICE:
- Check that there are no scratches or foreign objects around the connected part of the fuel tank vent hose connector and pipe before this procedure.
- After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the fuel tank vent hose connector.





(b) Install a new gasket to the fuel tank.
(c) While being careful that the gasket does not drop in the fuel tank, insert the trap canister with pump module to the fuel tank.
(d) Install the trap canister with pump module and ground terminal of the fuel tank wire with the 2 bolts.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
(e) Install the tube of the fuel tank vent hose to the 2 No. 1 fuel tube with grommet clamps.
(f) Install the clamp to the fuel tank vent hose and canister hose.
(g) Connect the canister pump module connector.
(h) Install the fuel tank vent hose to the 2 No. 1 fuel tube with grommet clamps.
(i) Install the tube of the fuel tank to canister tube to the clamp.
(j) Install the tube of the fuel tank main tube to the clamp.
(k) Install the clamp to the fuel tank vent hose and canister hose.
2. INSTALL FUEL TANK SUB-ASSEMBLY Installation
3. INSTALL FRONT EXHAUST PIPE Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
5. INSPECT FOR FUEL LEAK Testing and Inspection
6. INSPECT FOR EXHAUST GAS LEAK Installation
7. INSTALL FRONT FLOOR PANEL BRACE Installation
8. INSTALL REAR FLOOR SERVICE HOLE COVER Installation
9. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
10. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL Installation
11. INSTALL REAR NO. 3 FLOOR BOARD Installation
12. INSTALL REAR DECK FLOOR BOX Installation
13. INSTALL REAR NO. 2 FLOOR BOARD Installation
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
