1NZ-FXE EMISSION CONTROL: PCV VALVE: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR FLOOR DECK BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

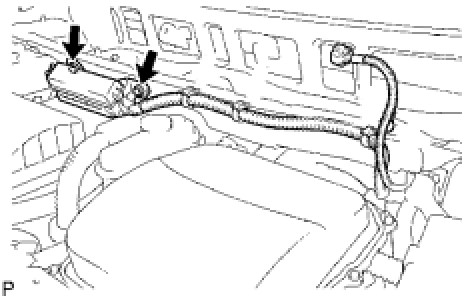

5. REMOVE ENGINE ROOM NO. 2 RELAY BLOCK

(a) Remove the 2 bolts and relay block.
(b) Remove the 4 wire harness clamps.
6. REMOVE AIR CLEANER ASSEMBLY

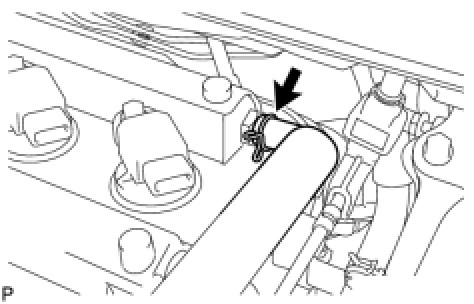

(a) Loosen the clamp, then disconnect the No. 1 air cleaner inlet from the air cleaner case.

(b) Disconnect the mass air flow meter connector, then remove the wire harness clamp.
(c) Loosen the 2 clamps, then remove the 2 bolts and air cleaner assembly.
7. REMOVE WIRE HARNESS

(a) Disconnect the fuel injector connector and ignition coil connector.
(b) Remove the 3 bolts and wire harness clamp, then disconnect the wire harness.

(a) Disconnect the ventilation hose.
(b) Remove the ventilation valve.
