Components
Components

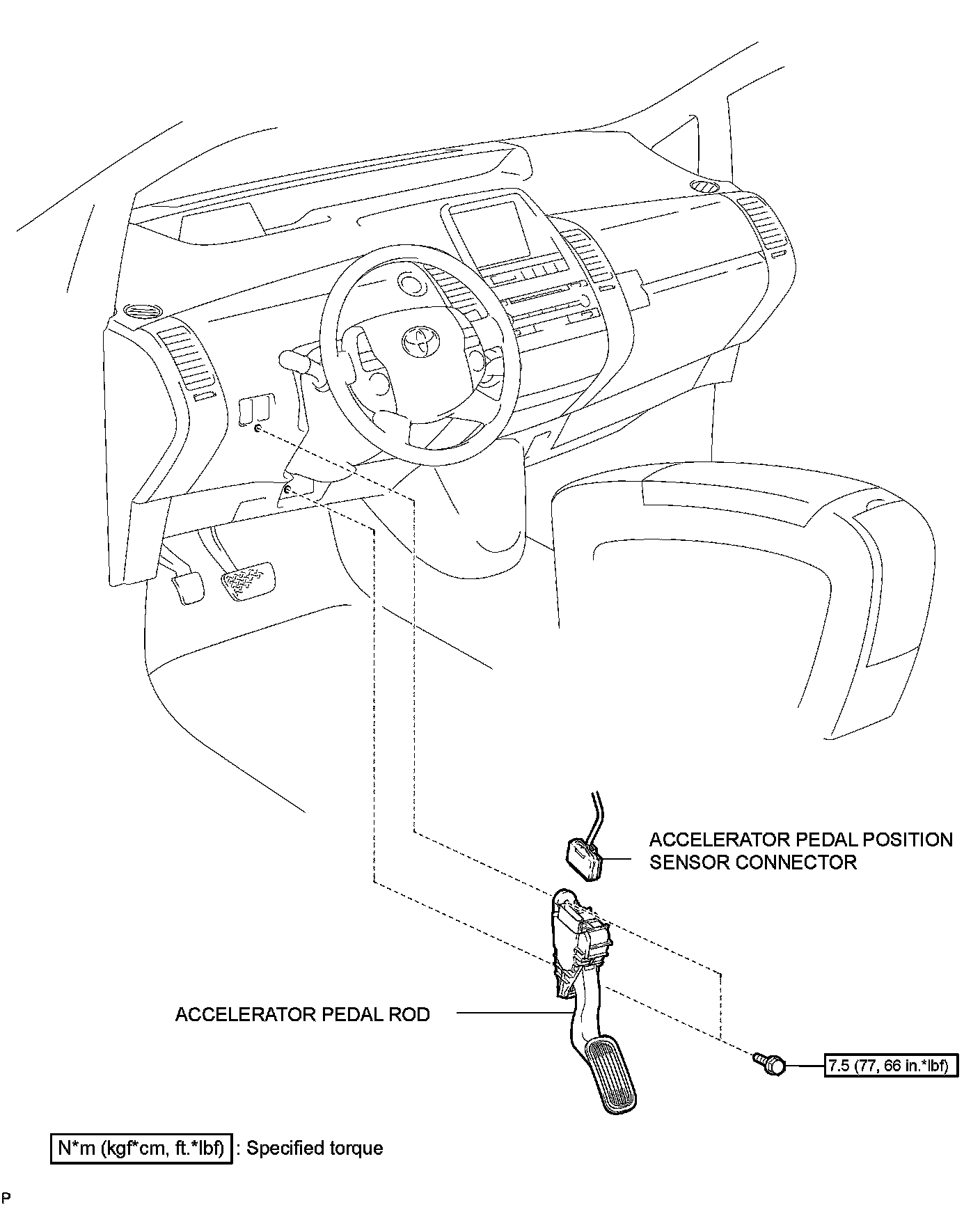

P112 HYBRID VEHICLE CONTROL:
ACCELERATOR PEDAL
ROD: COMPONENTS
COMPONENTS
ILLUSTRATION
