Installation

P112 HYBRID VEHICLE CONTROL: ACCELERATOR PEDAL ROD: INSTALLATION

INSTALLATION

1. INSTALL ACCELERATOR PEDAL ROD

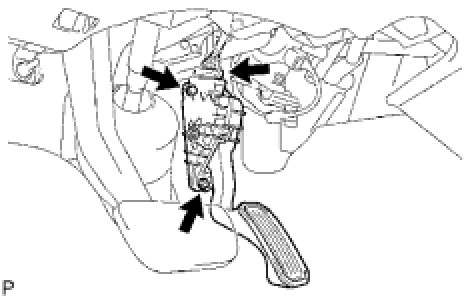

(a) Install the accelerator pedal rod with the 2 bolts.
Torque: 7.5 Nm (77 kgf-cm, 66 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
3. INSTALL REAR NO. 3 FLOOR BOARD Installation
4. INSTALL REAR DECK FLOOR BOX Installation
5. INSTALL REAR NO. 2 FLOOR BOARD Installation
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
