Accelerator Pedal: Testing and Inspection

P112 HYBRID VEHICLE CONTROL: ACCELERATOR PEDAL ROD: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL ROD
NOTICE:
- Do not remove the accelerator pedal position sensor from the accelerator pedal.

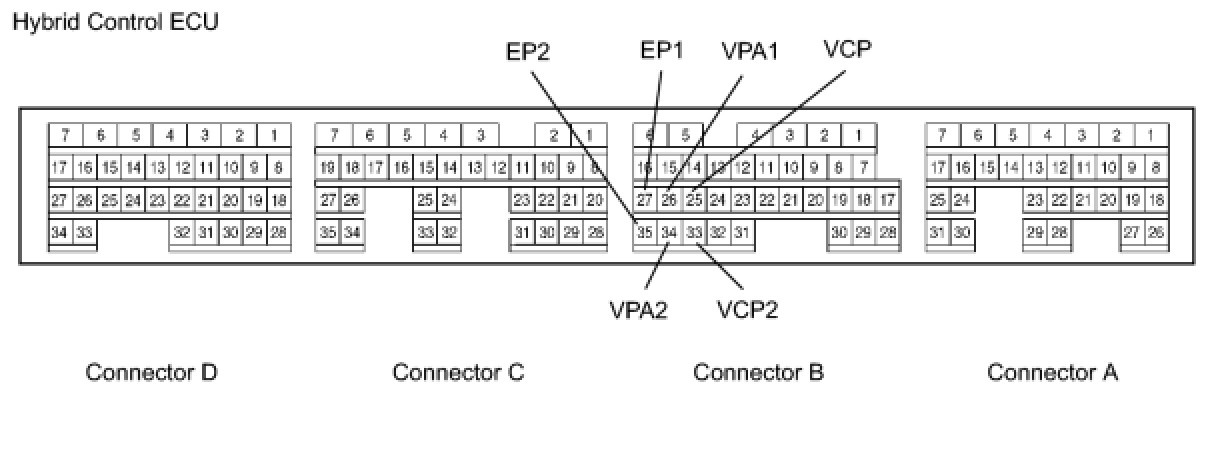

- Perform the inspection on the hybrid vehicle control ECU side of the connector.

(a) Turn the power switch ON (IG).
(b) Using a voltmeter, measure the voltage between the terminals.

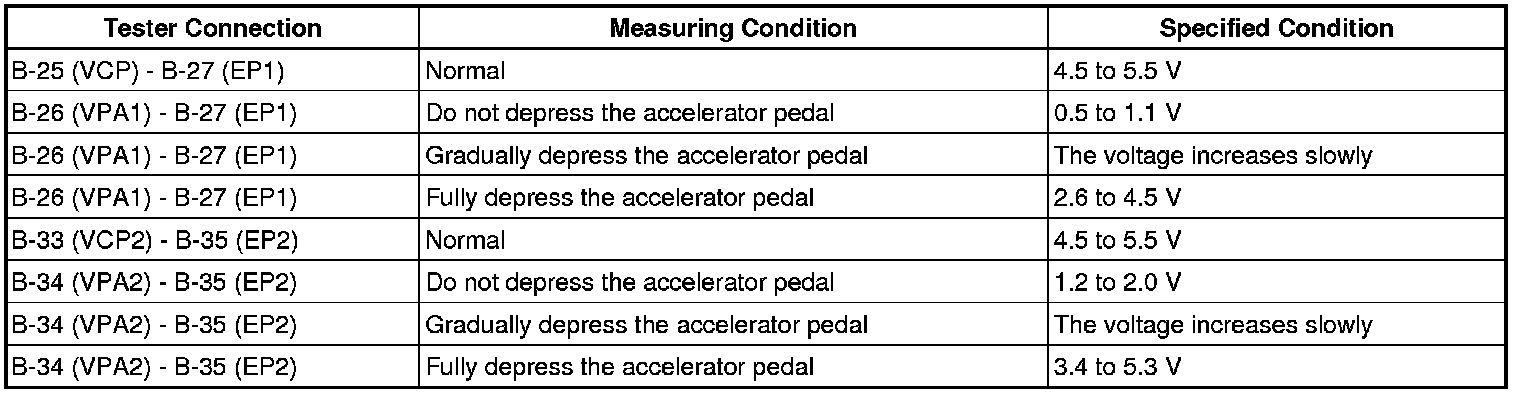

Standard voltage:









If the standards are not met, replace the accelerator pedal rod.
