Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
Fuel Delivery and Air Induction: Description and Operation

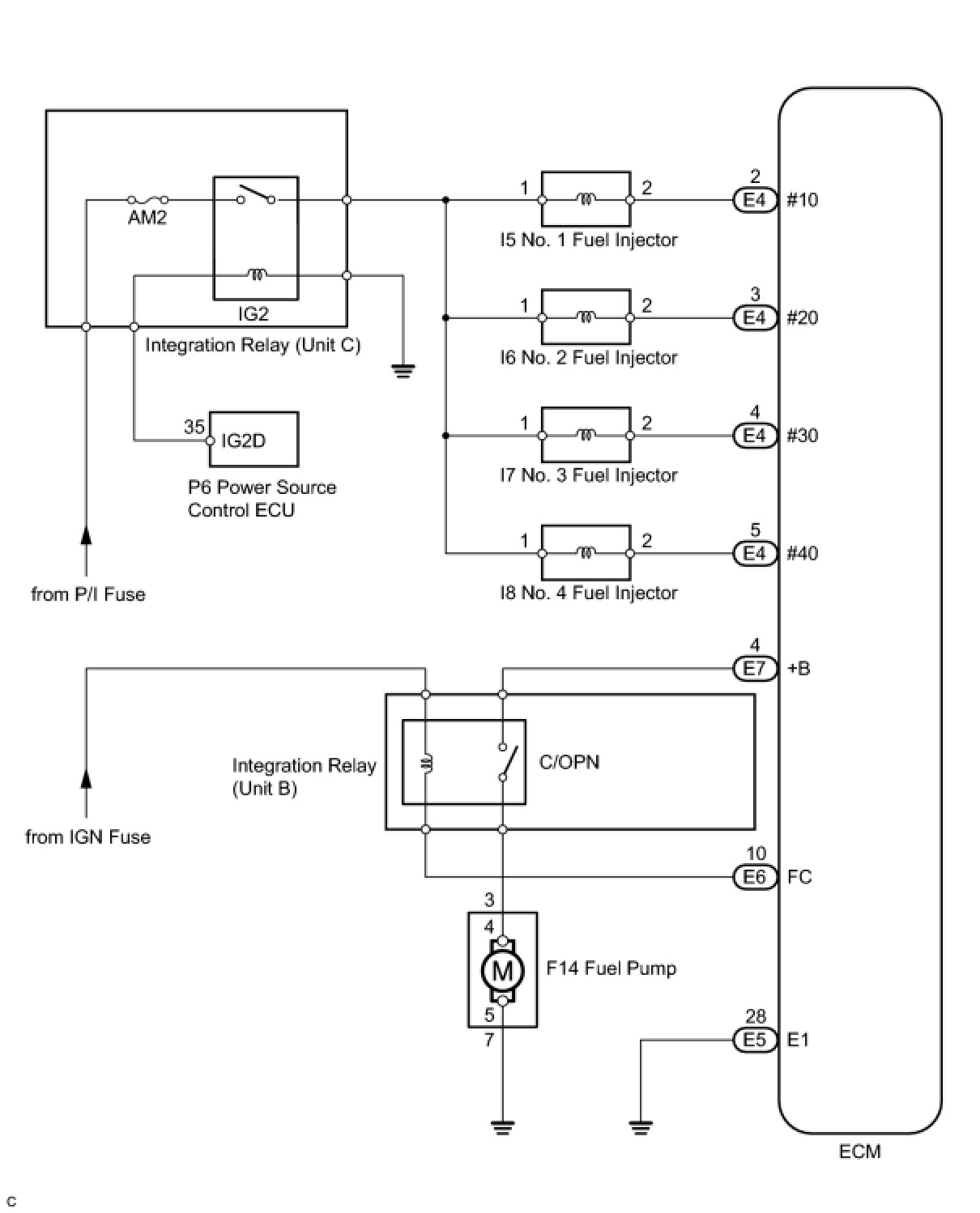

1NZ-FXE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
