Ignition Relay: Locations

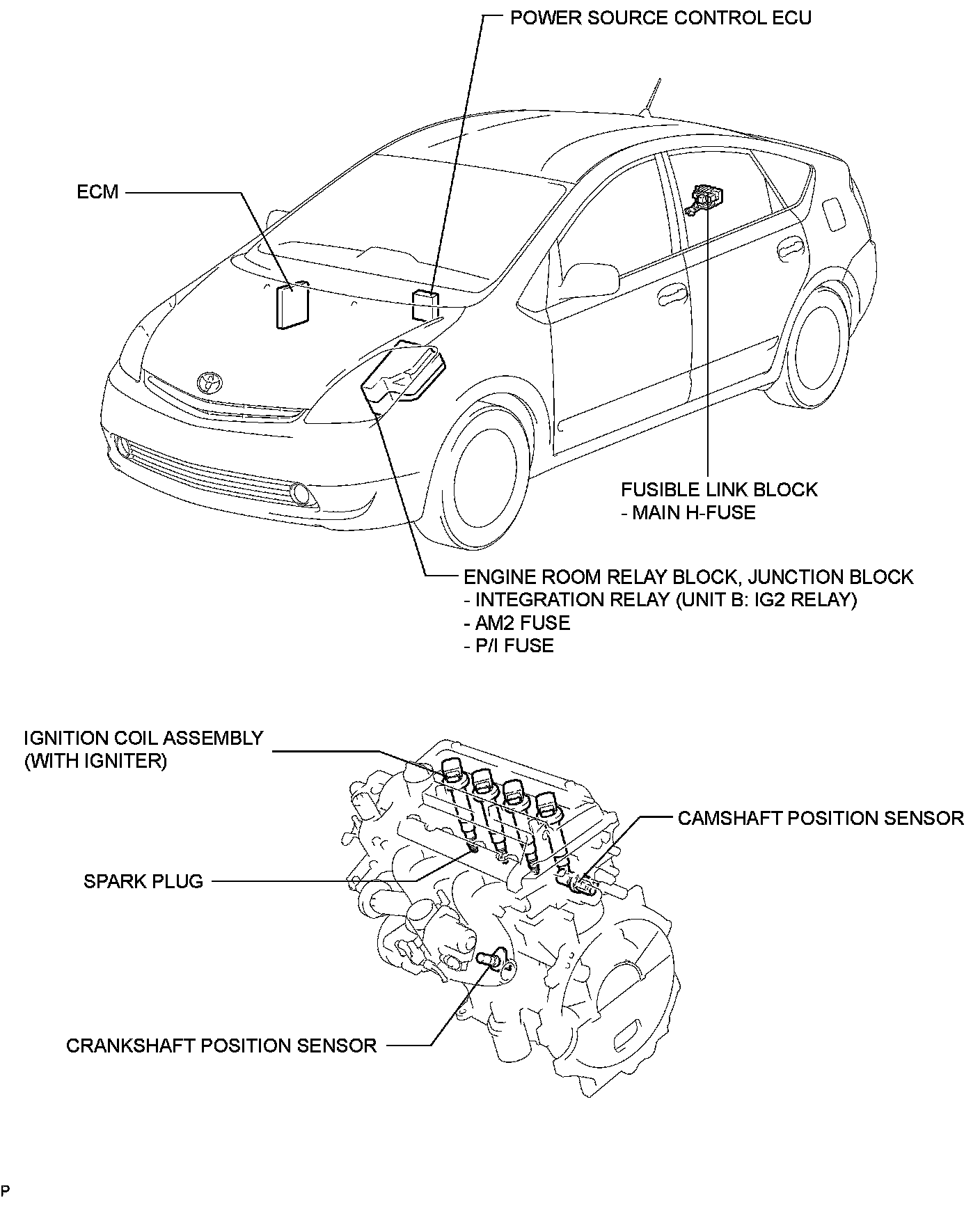

1NZ-FXE IGNITION: IGNITION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
