Electrical Diagrams

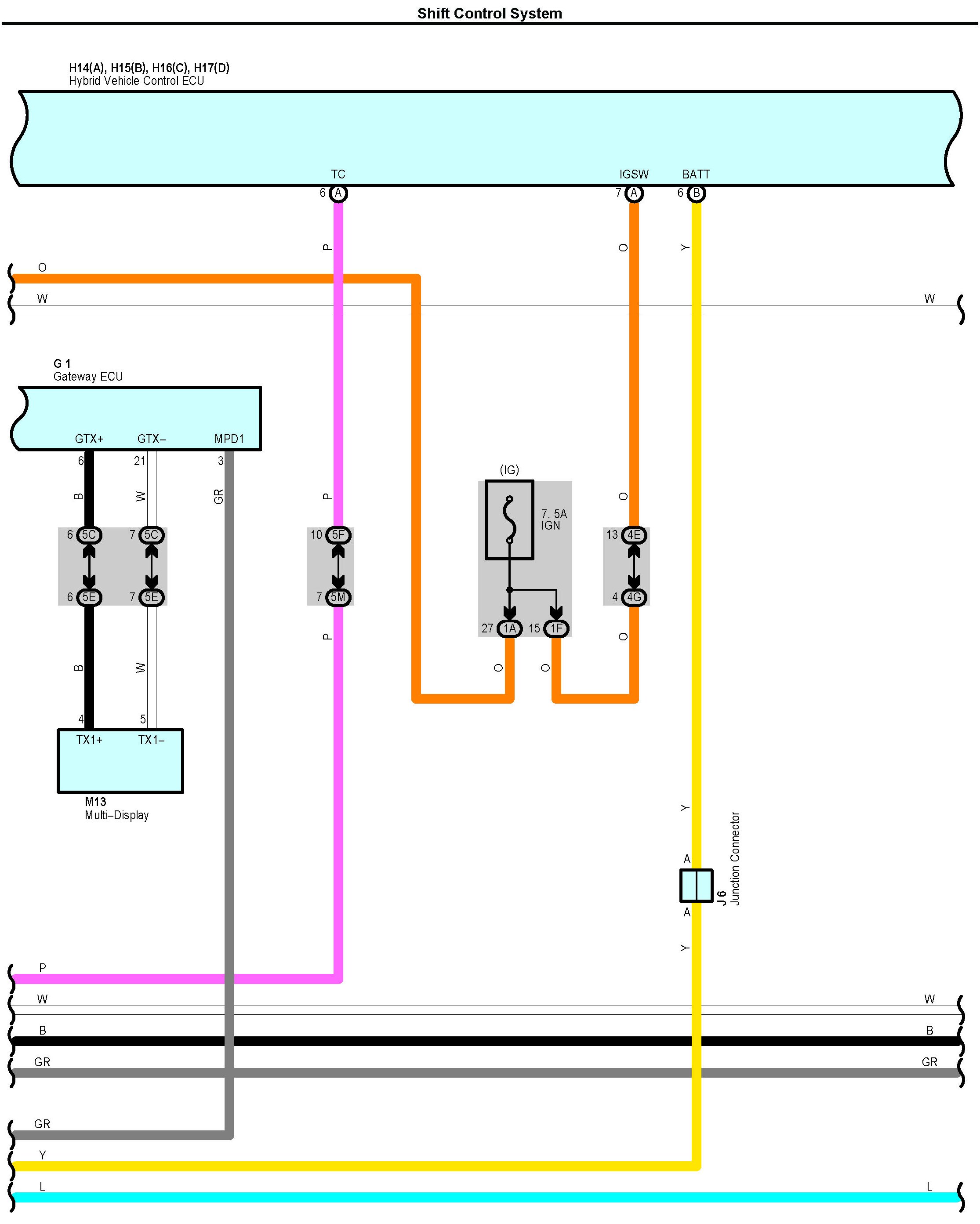

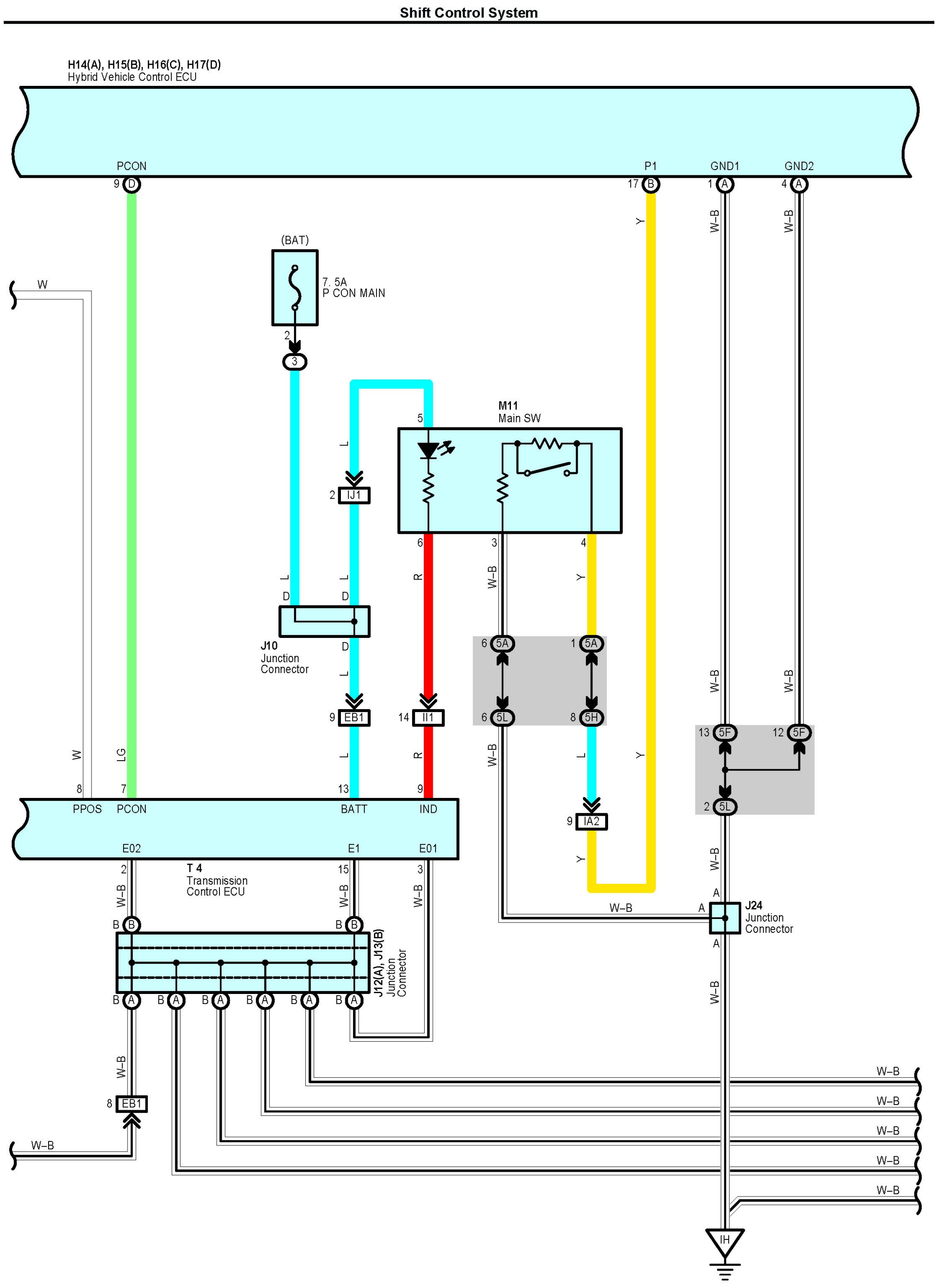

Shift Control System Part 1:

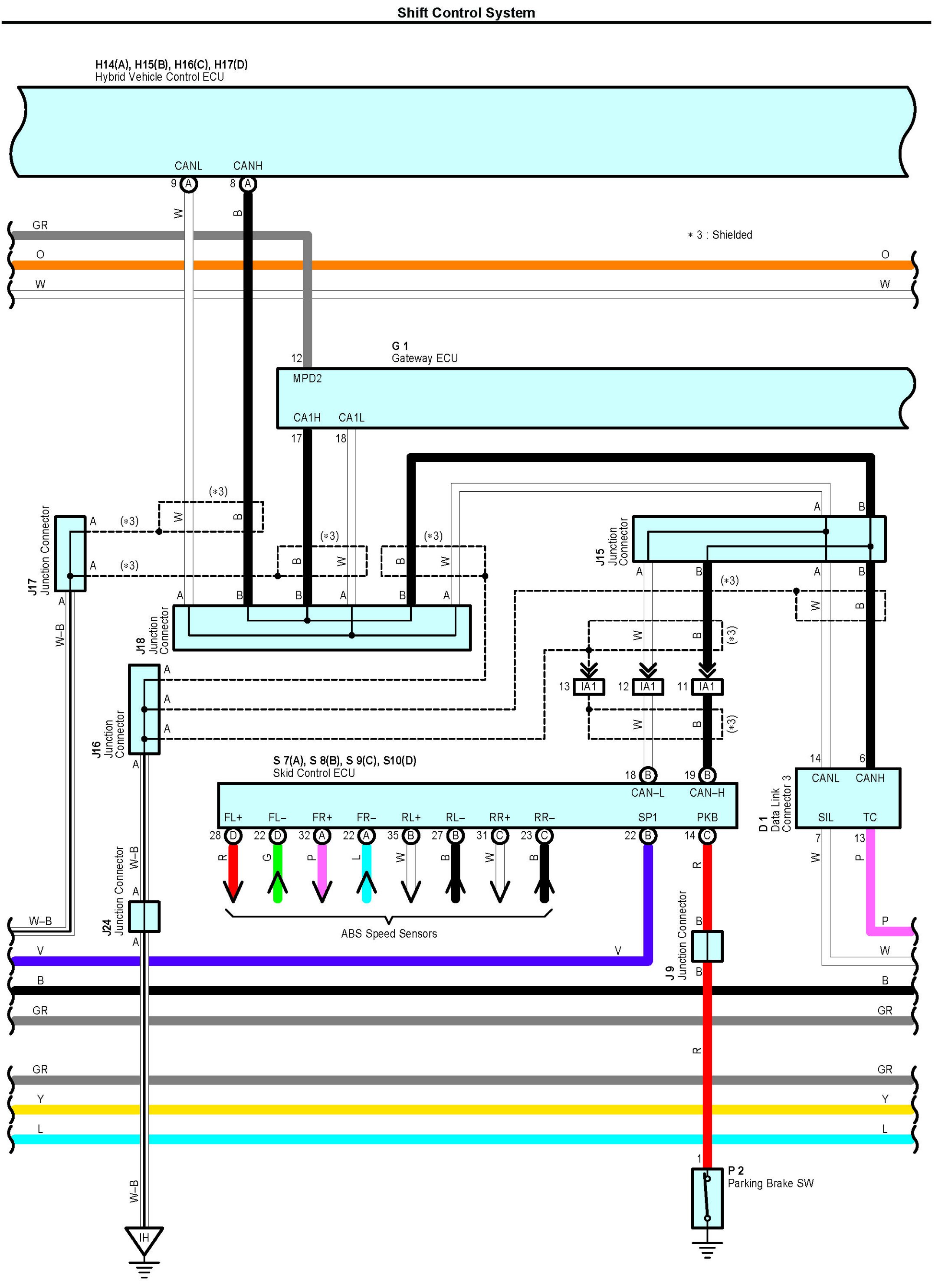

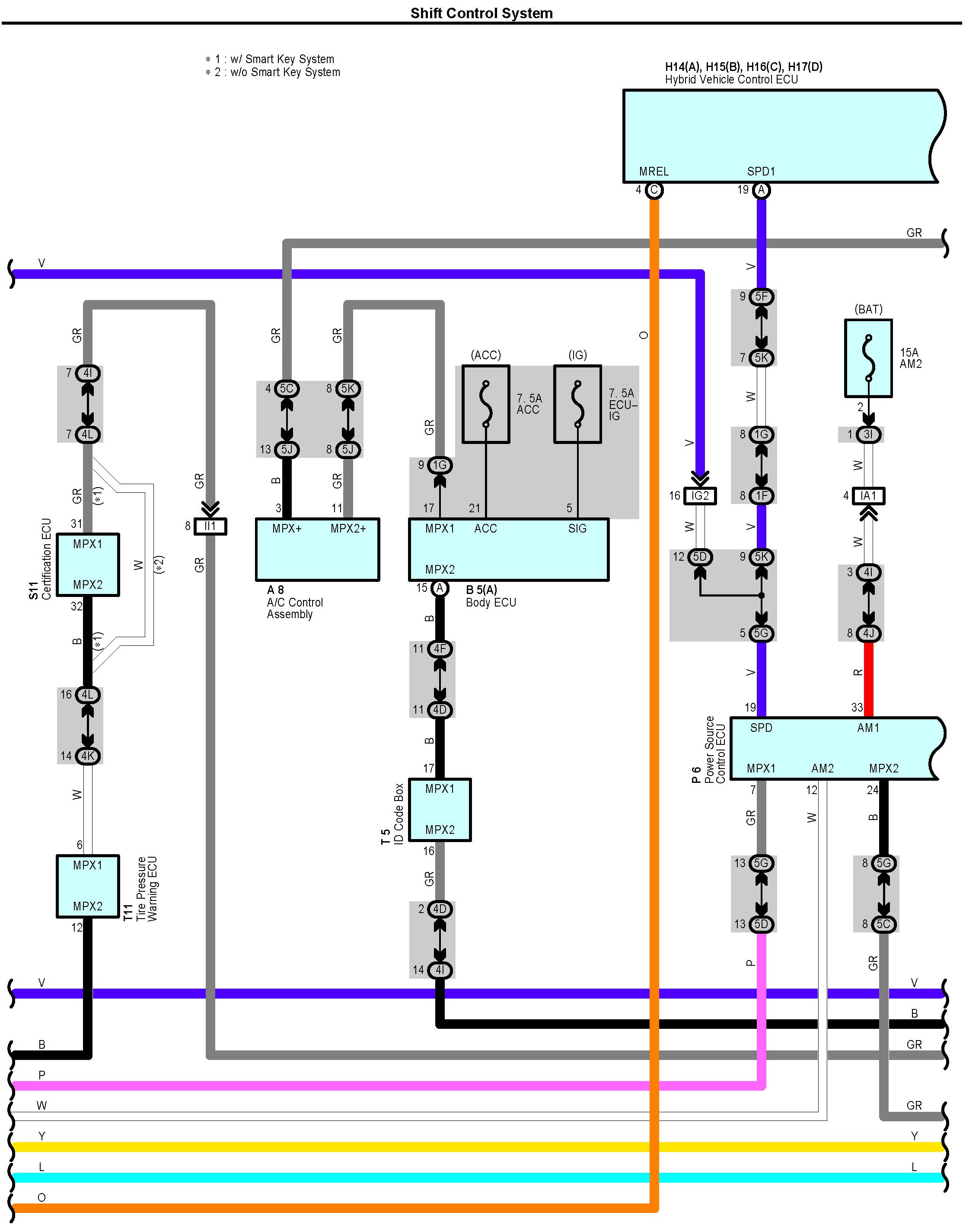

Shift Control System Part 2:

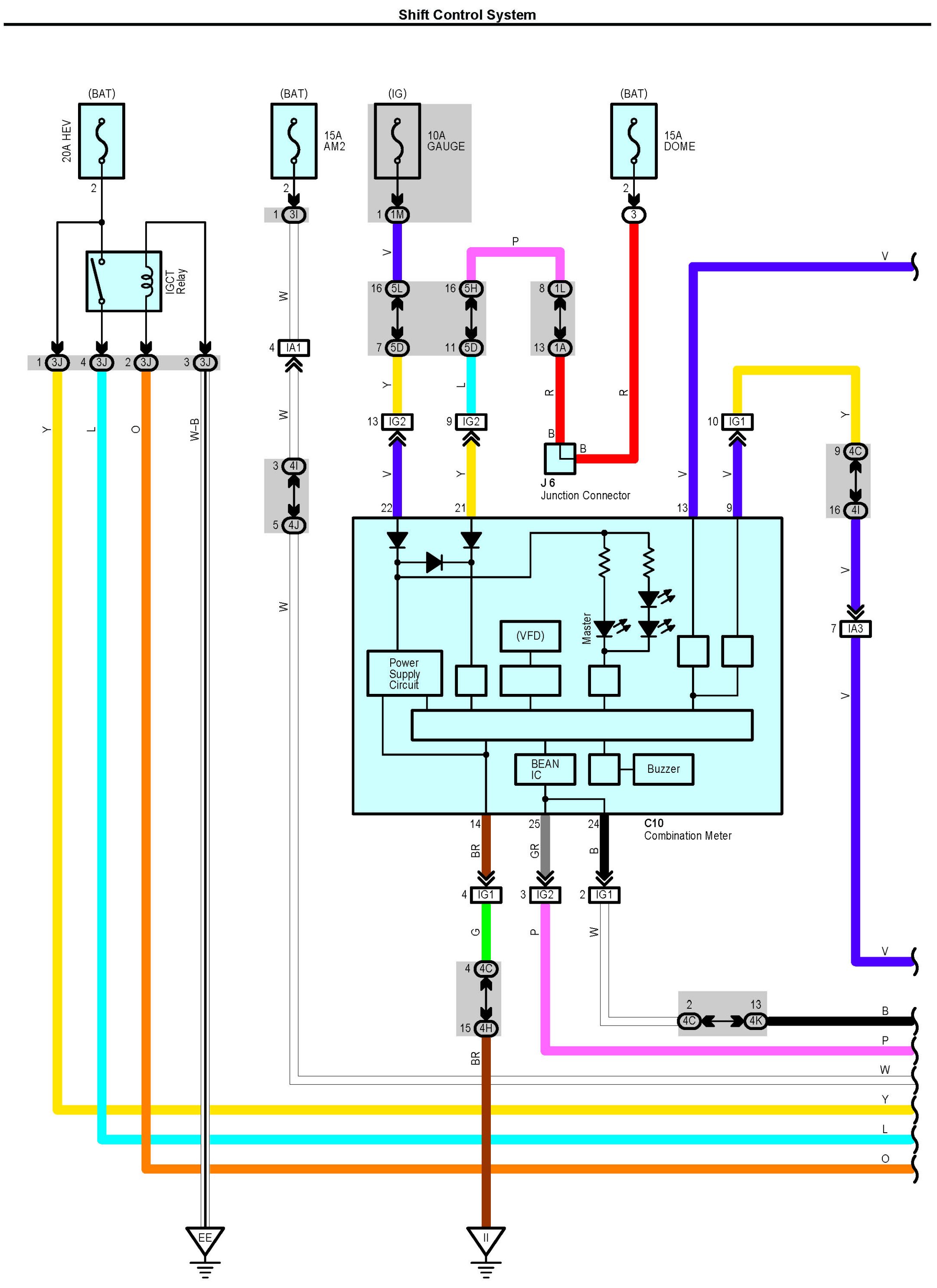

Shift Control System Part 3:

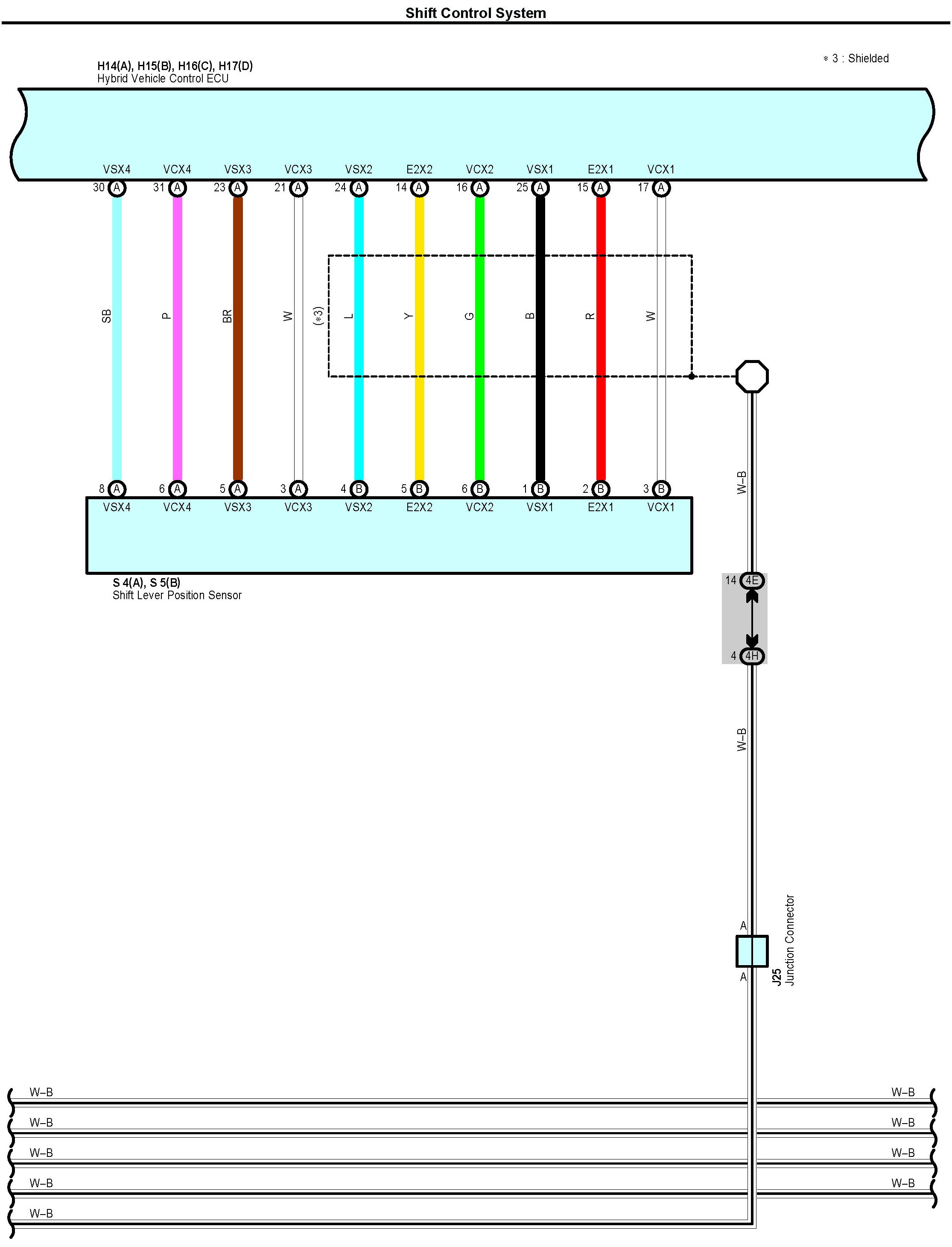

Shift Control System Part 4:

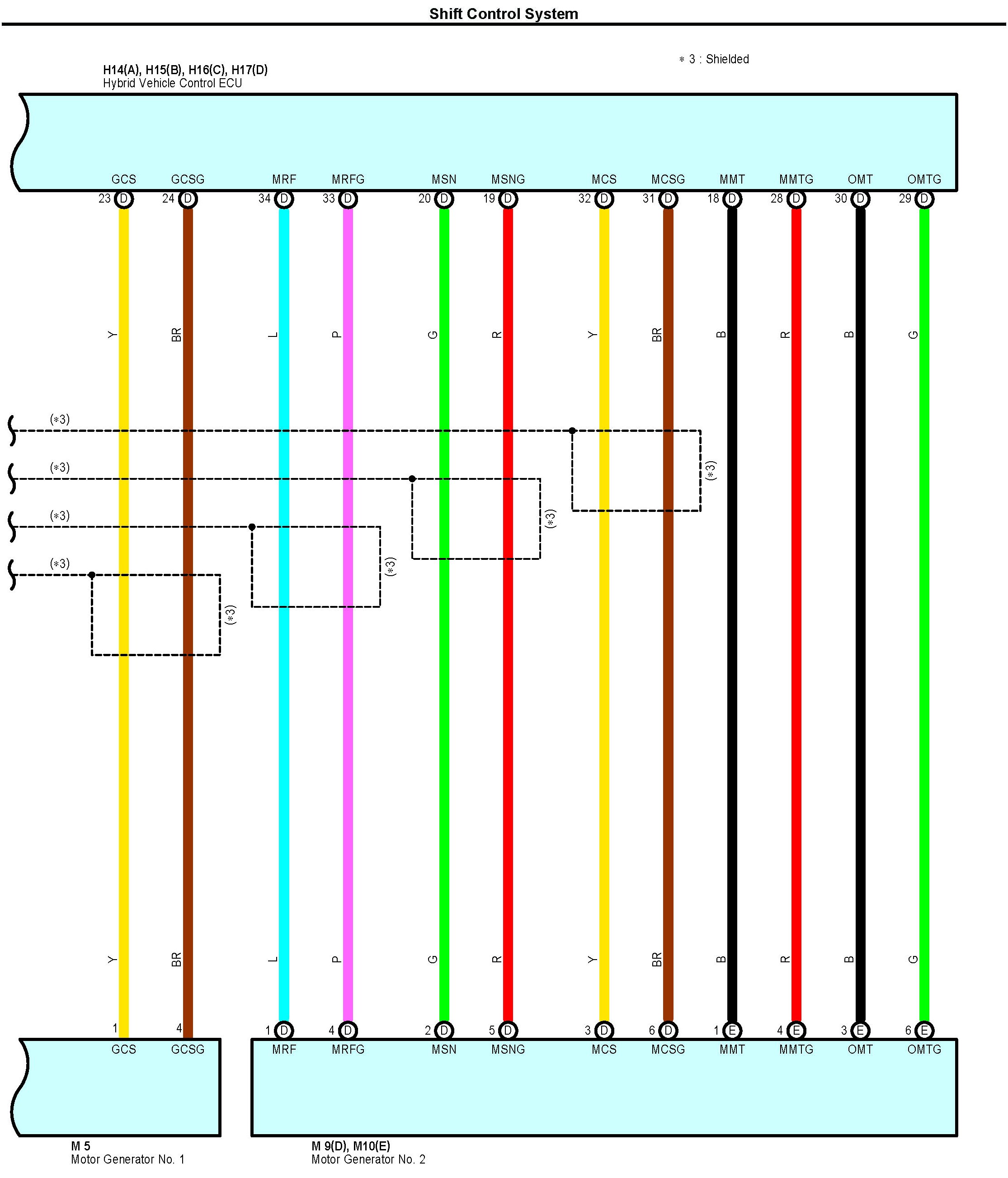

Shift Control System Part 5:

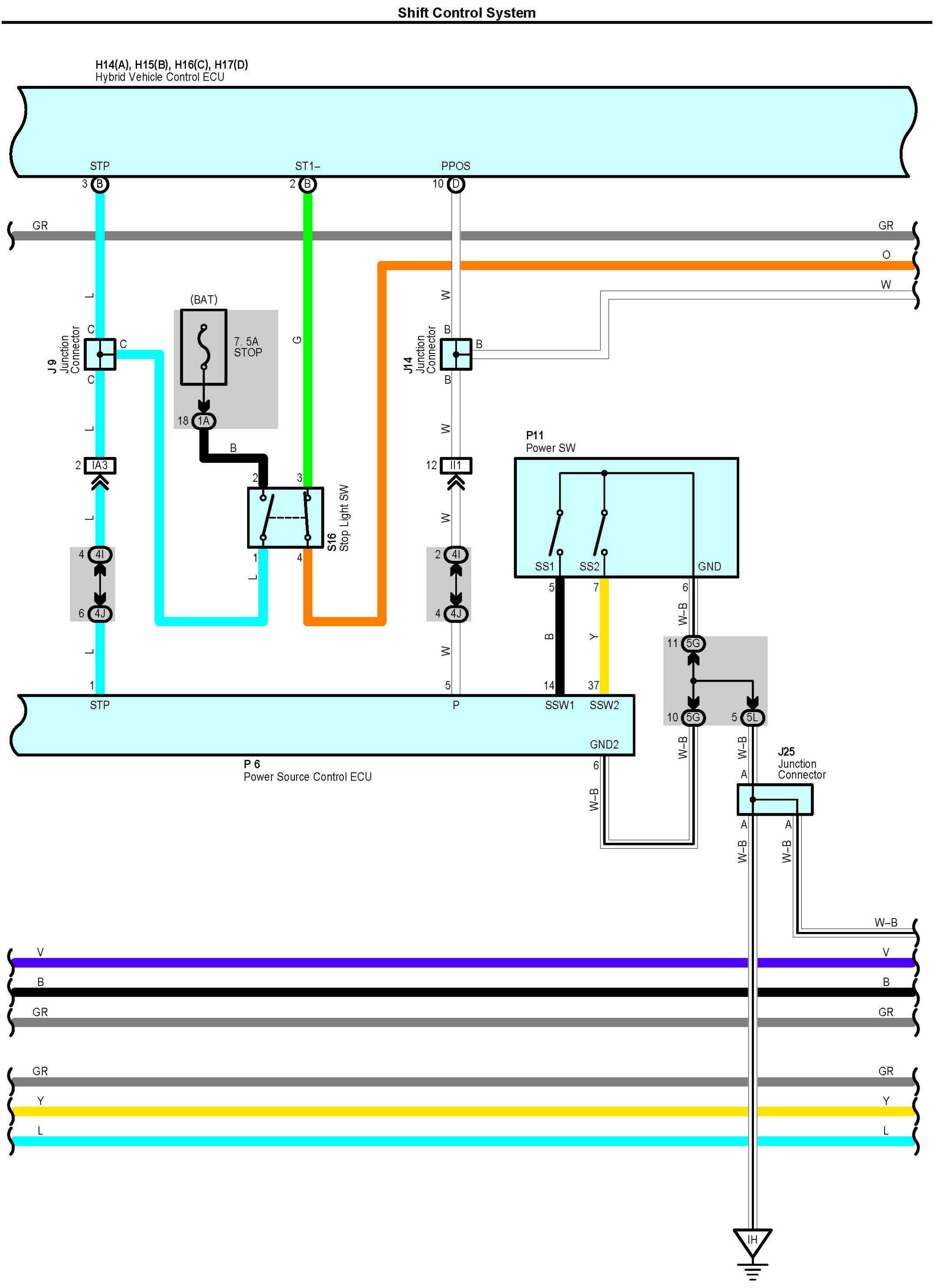

Shift Control System Part 6:

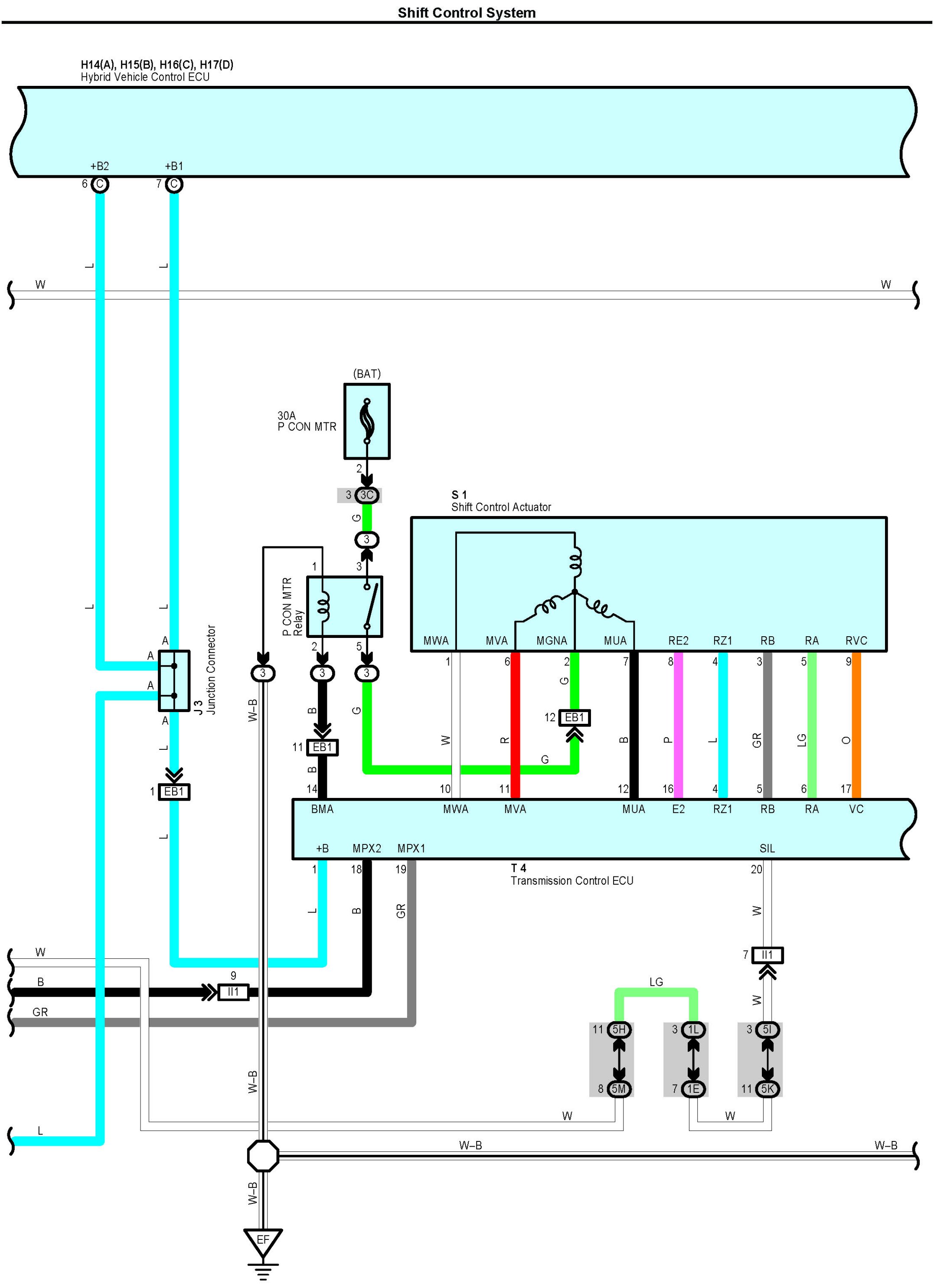

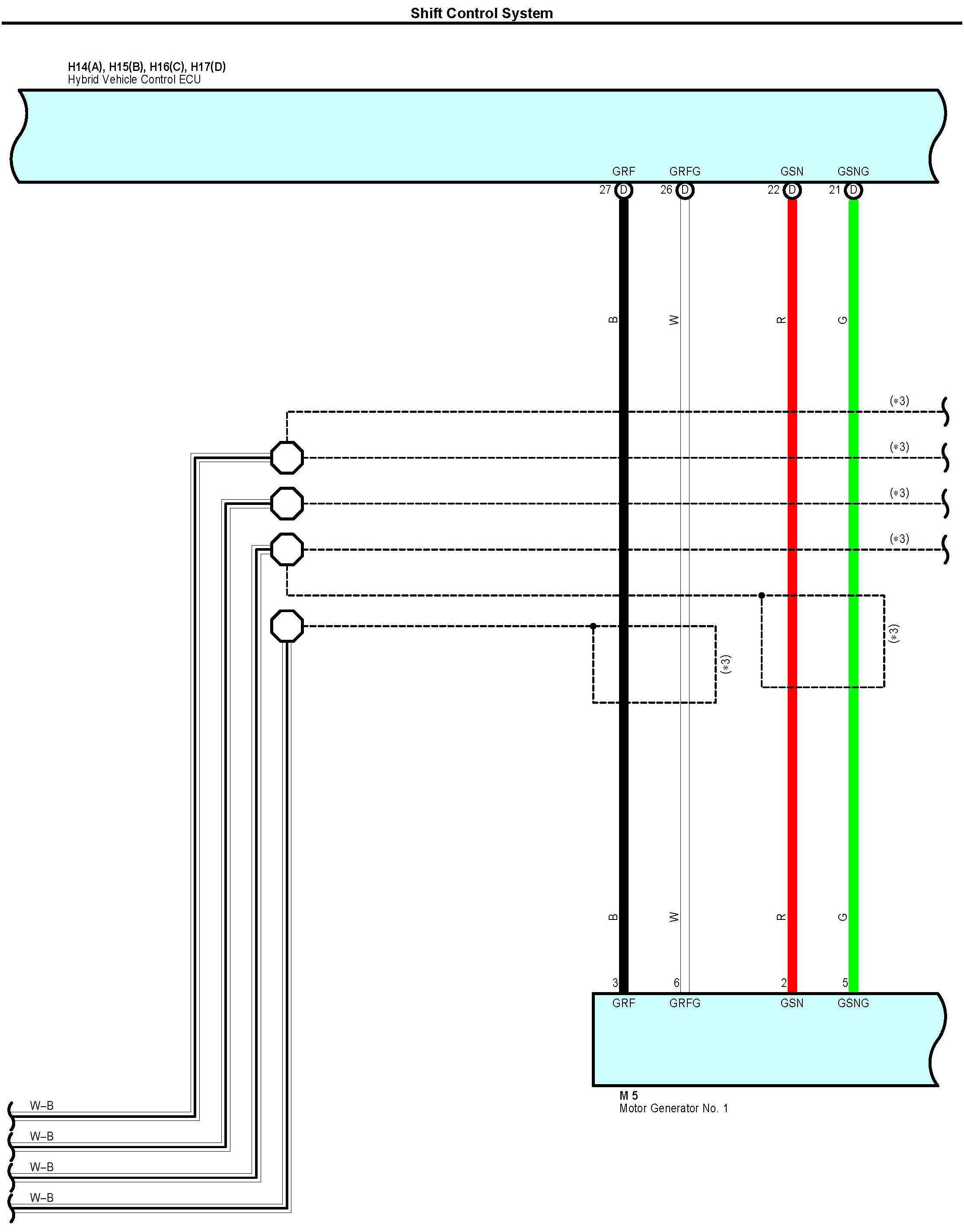

Shift Control System Part 7:

Shift Control System Part 8:

Shift Control System Part 9:

Shift Control System Part 10:

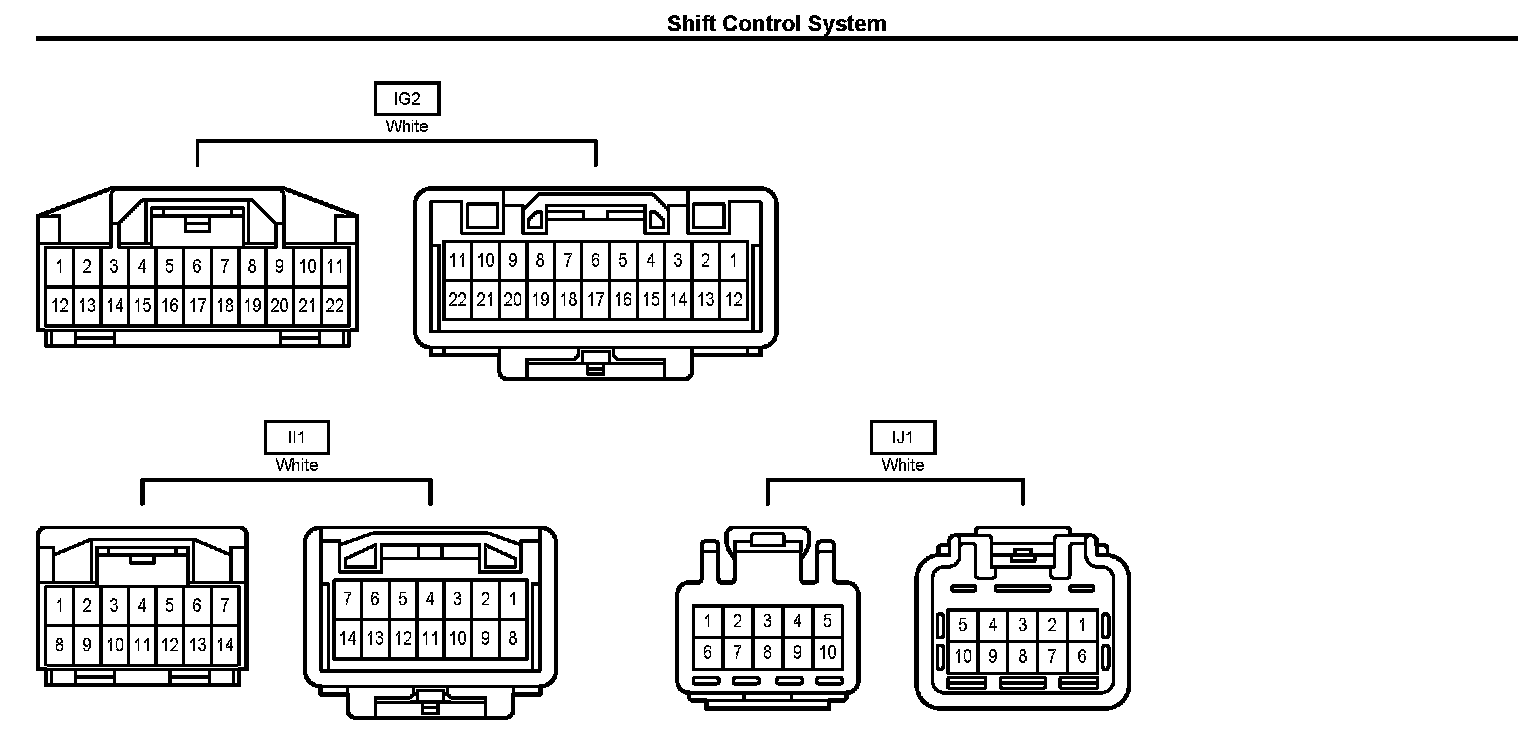

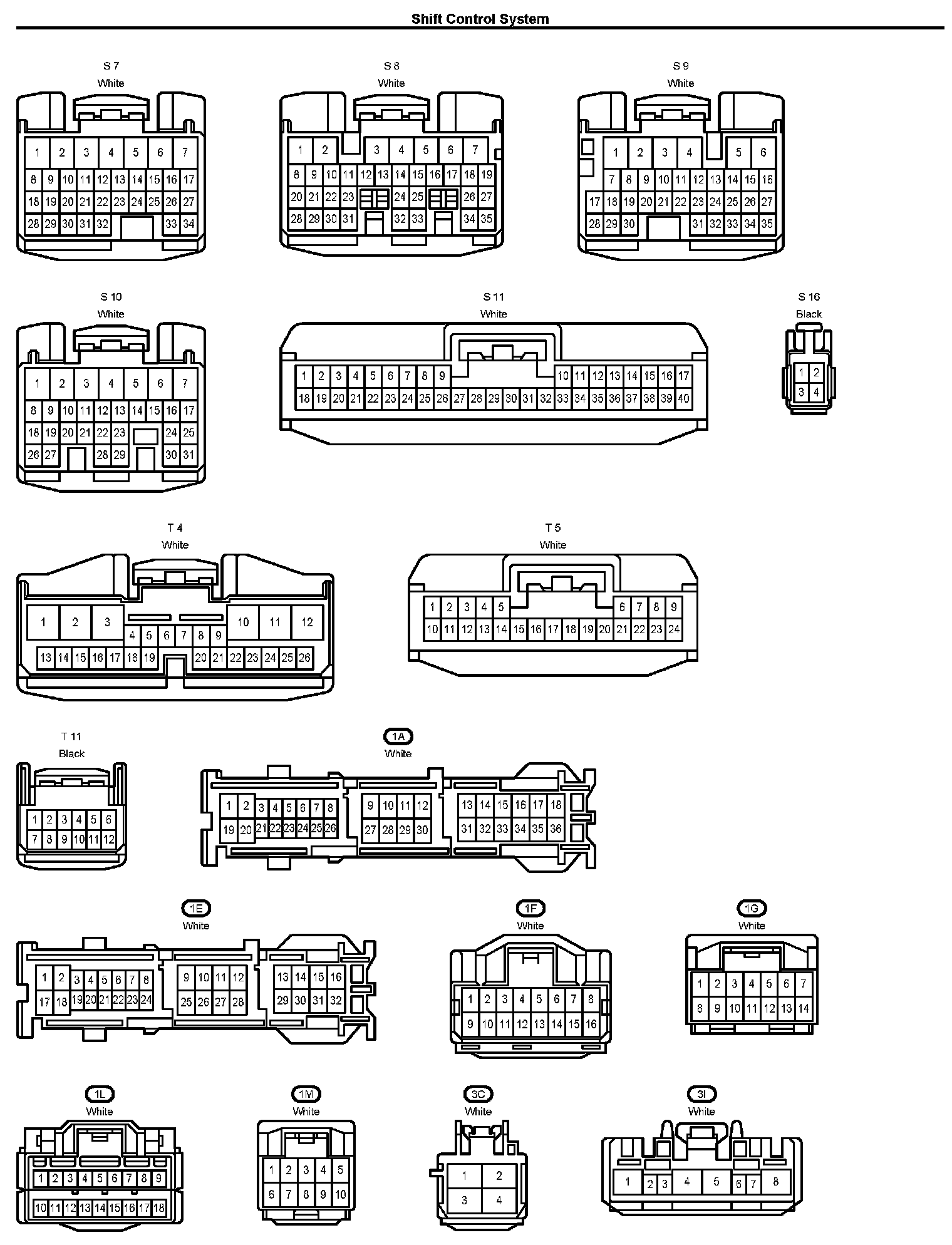

Connectors Part 1:

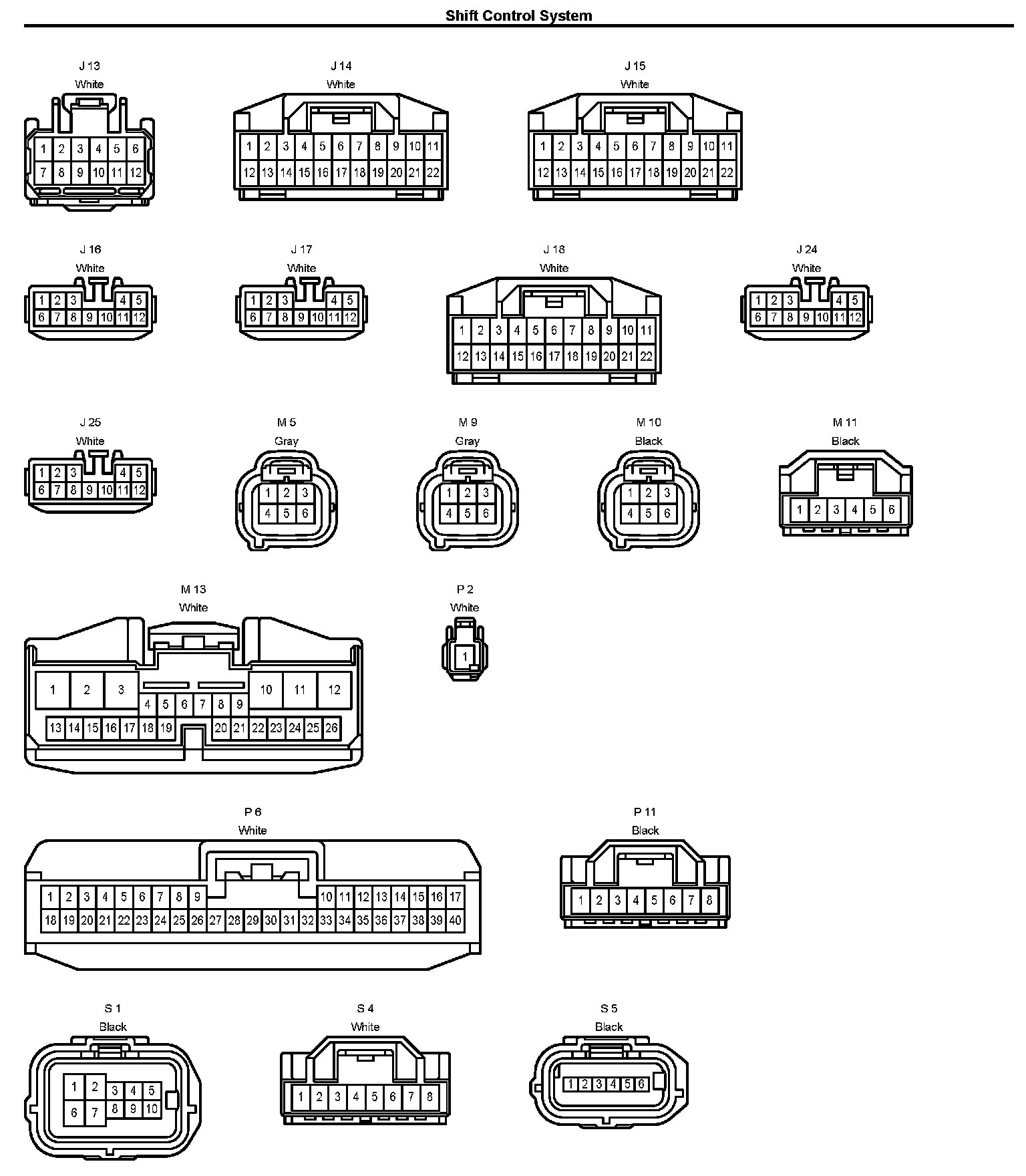

Connectors Part 2:

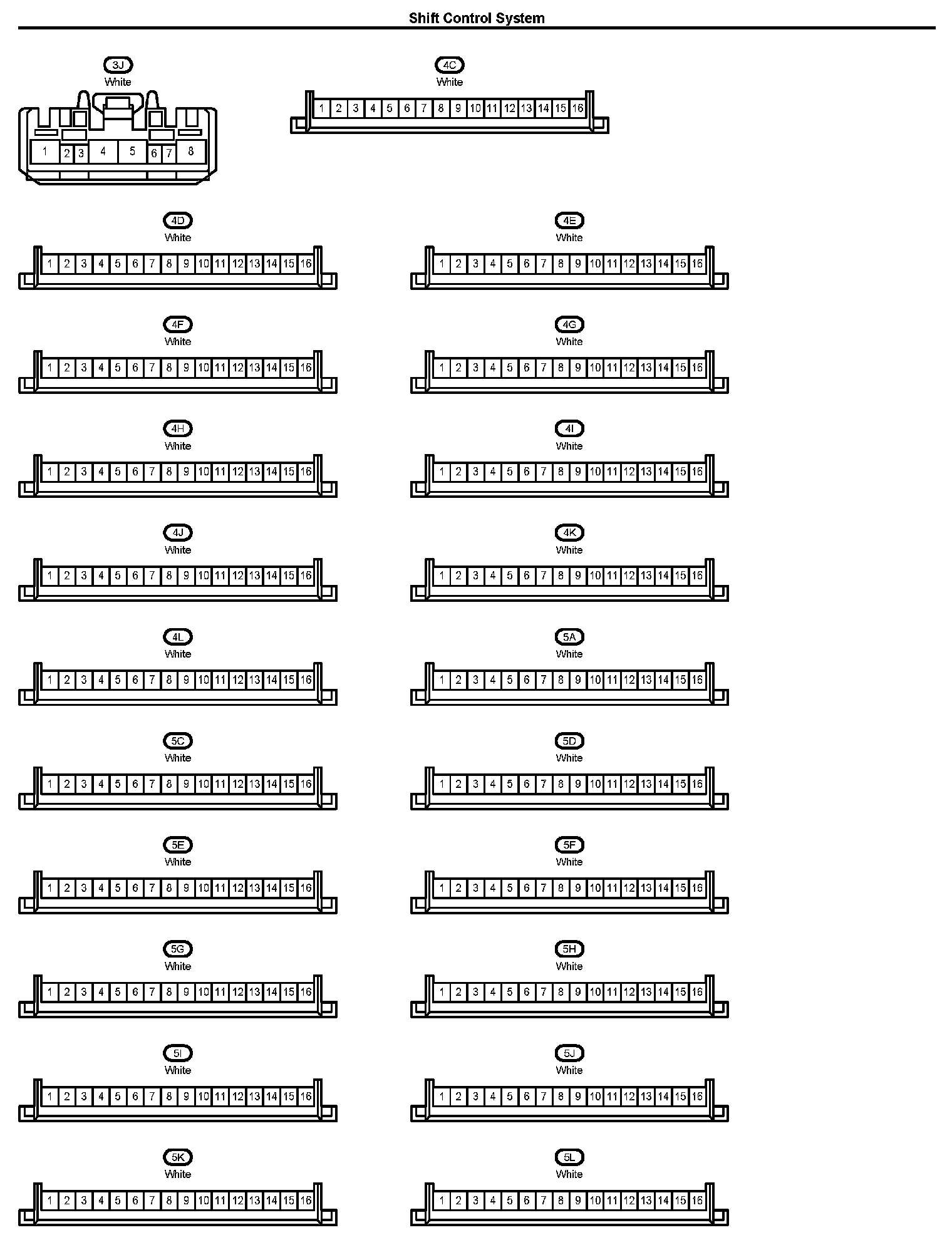

Connectors Part 3:

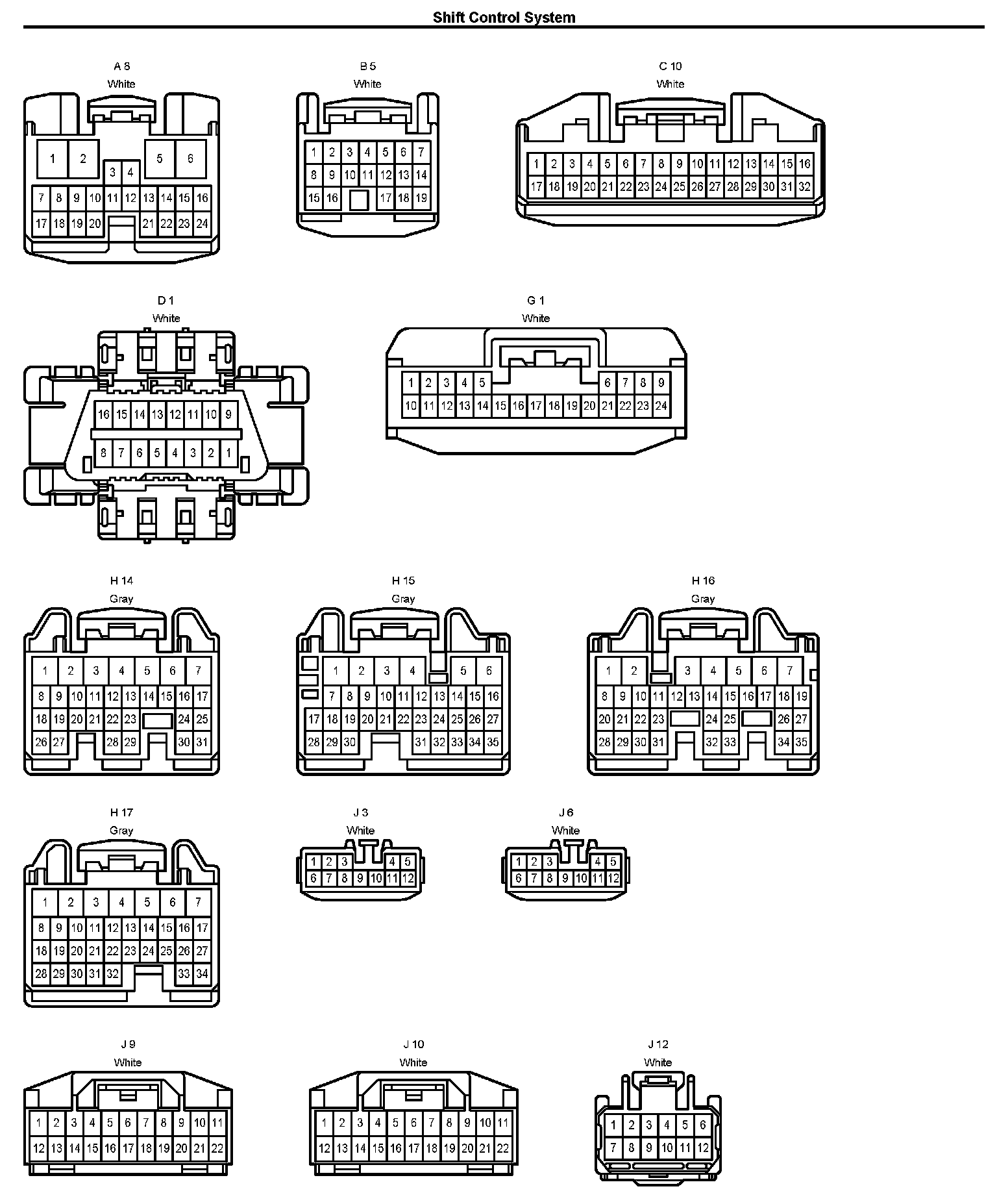

Connectors Part 4:

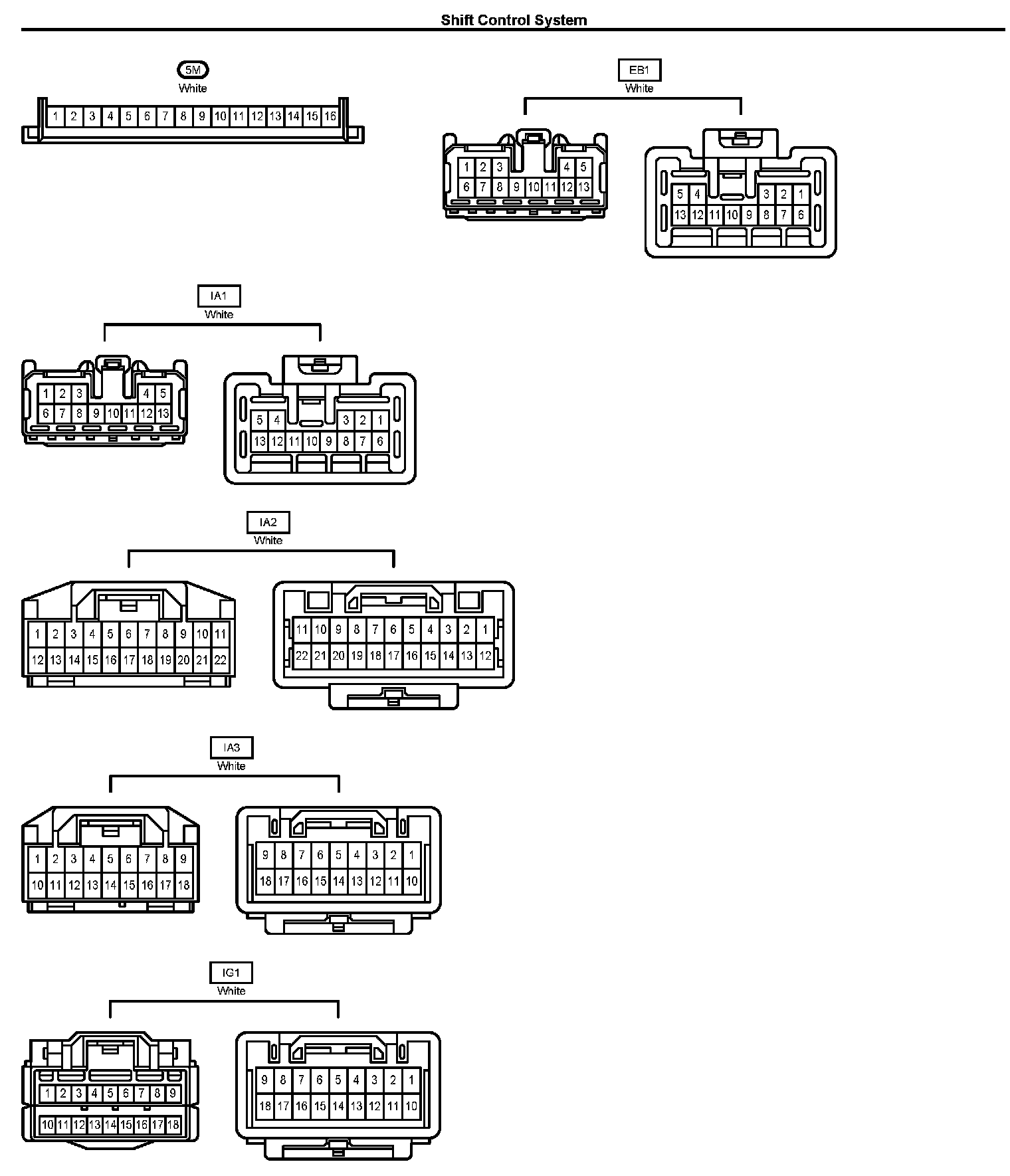

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
