Daytime Running Lamp Relay: Testing and Inspection

LIGHTING: DAYTIME RUNNING LIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. CHECK DAYTIME RUNNING LIGHT RELAY

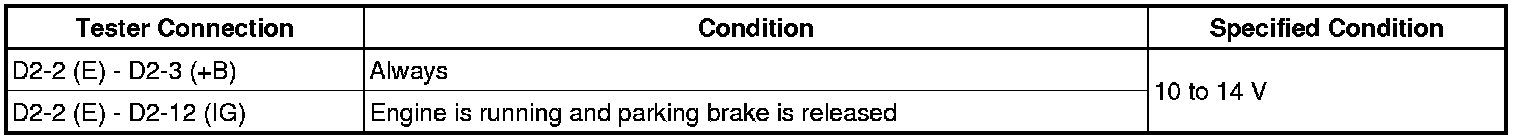

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not as specified, replace the relay.

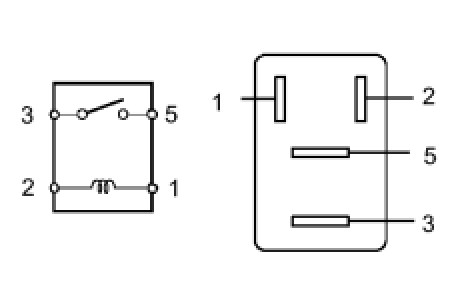

2. CHECK DAYTIME RUNNING LIGHT RELAY (Marking: DRL NO. 4)

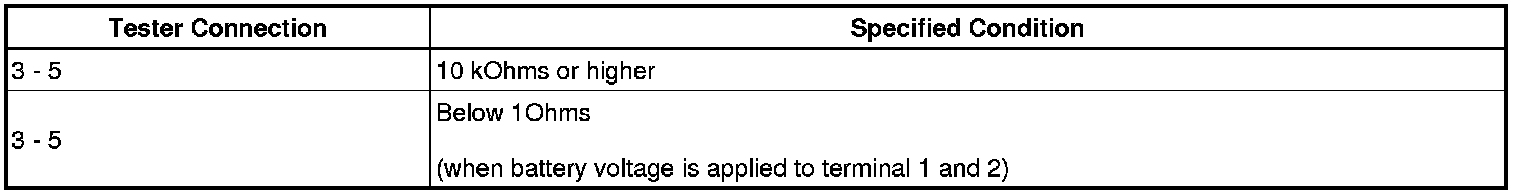

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the relay.
