Headlamp Relay: Testing and Inspection

LIGHTING: HEADLIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT RELAY (Marking: H-LP)

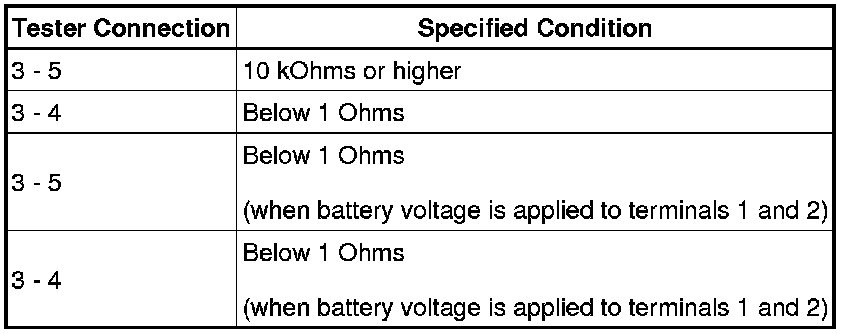

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the relay.
2. INSPECT NO. 2 HEADLIGHT RELAY (Marking: DIM)

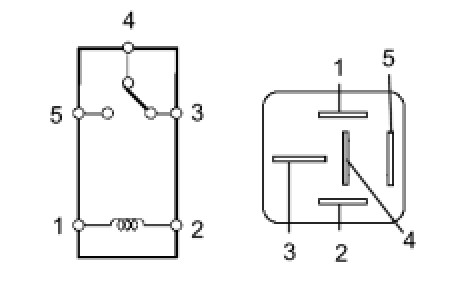

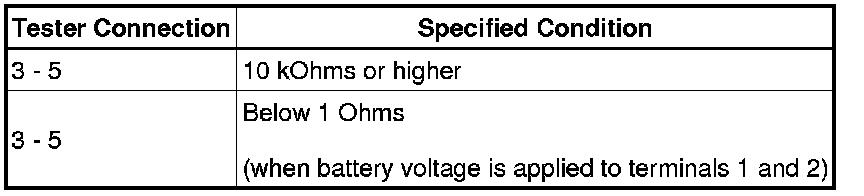

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the relay.
