SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY

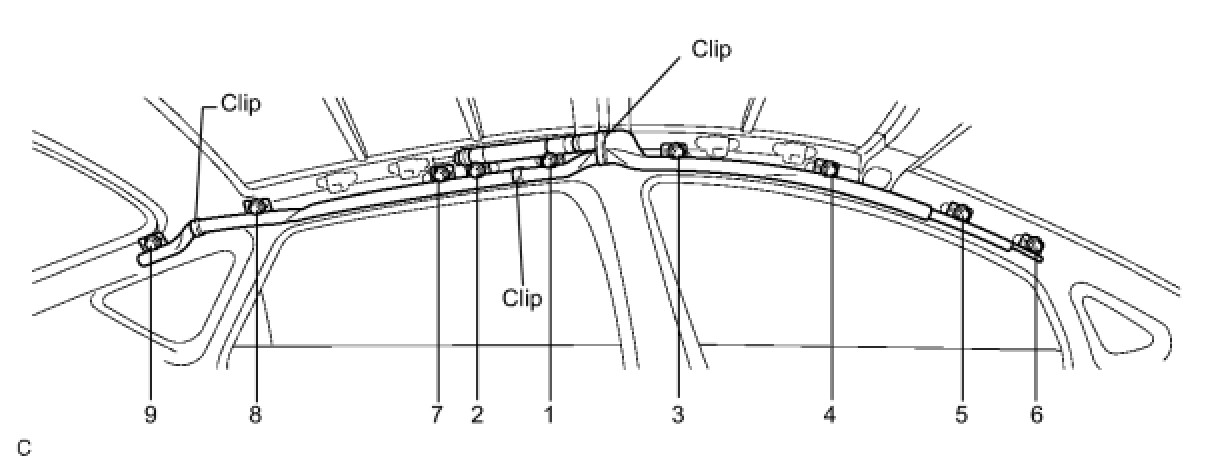

(a) Install the curtain shield airbag with the 9 bolts and 3 clips in the order shown in the illustration.
NOTE: Do not twist the curtain shield airbag assembly when installing it.

Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

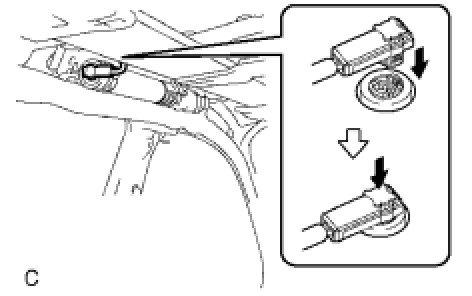

(b) Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
