SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.





1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
(a) Attach the 10 claws to install the front passenger airbag.





2. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY

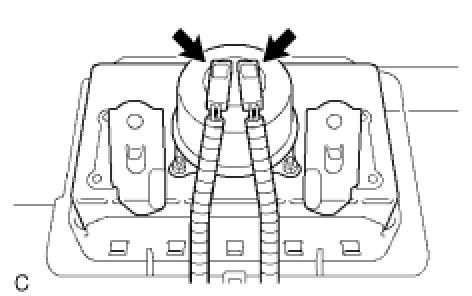

(a) Connect the connectors to the front passenger airbag.
NOTE: When handling the airbag connector, do not damage the airbag wire harness.

3. INSTALL INSTRUMENT PANEL SAFETY PAD
(a) Install the instrument panel Installation.
NOTE: When handling the airbag connector, do not damage the airbag wire harness.





4. CONNECT PASSENGER AIRBAG CONNECTOR

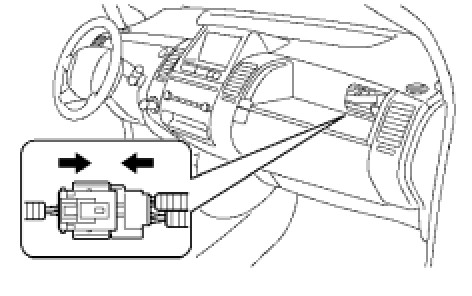

(a) Connect the front passenger airbag connector.
NOTE: When handling the airbag connector, do not damage the airbag wire harness.

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

7. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
