Front Seat Side Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT SEAT SIDE AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
(a) Perform a diagnostic system check Check Mode Procedure.

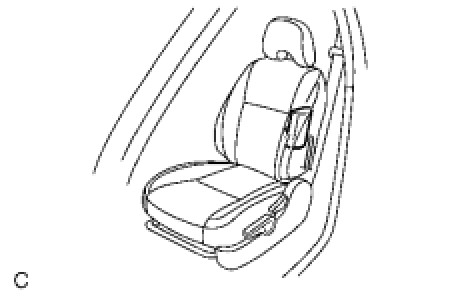

(b) With the front seat installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat assembly with a new one:
- Cuts, minute cracks or marked discoloration on the front seat side airbag assembly.
CAUTION: For removal and installation of the front seat side airbag, be sure to follow the correct procedures.





2. CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)
(a) Perform a diagnostic system check Check Mode Procedure.

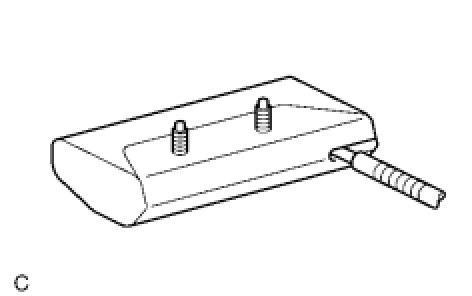

(b) With the front seat side airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat with a new one:
- Cuts, minute cracks or marked discoloration on the front seat side airbag.
- Cracks or other damage to the wire harness or connector.
CAUTION: For removal and installation of the front seat side airbag, be sure to follow the correct procedures.
