Removal

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Work must be started at least 90 seconds after the power switch is turned off and after the cable is disconnected from the negative (-) battery terminal.

3. REMOVE FRONT RH SEAT ASSEMBLY
HINT: Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY" Removal.

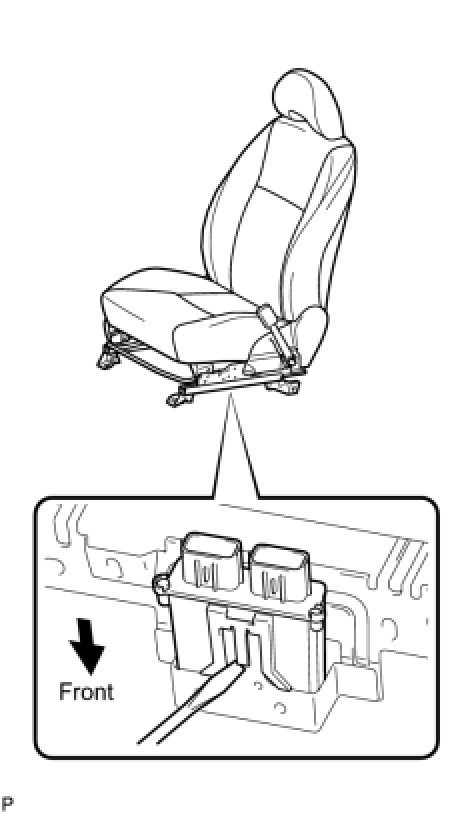

4. REMOVE OCCUPANT CLASSIFICATION ECU





(a) Disconnect the connectors from the occupant classification ECU.
(b) Using a screwdriver, remove the occupant classification ECU.
