Installation

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
(a) Install the anchor bracket with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
(a) Install the anchor bracket with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)





3. INSTALL REAR SEAT INNER BELT ASSEMBLY CENTER

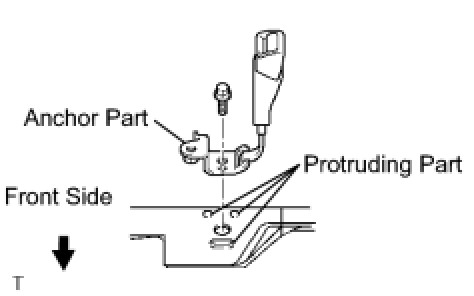

(a) Install the rear seat inner belt with the bolt, as shown in the illustration.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.





4. INSTALL REAR SEAT INNER BELT ASSEMBLY RH

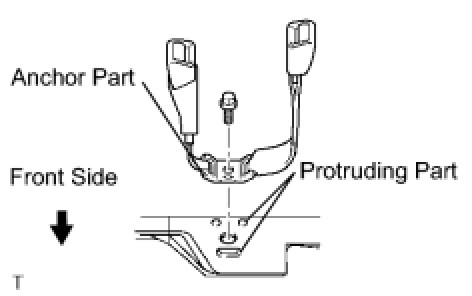

(a) Install the rear seat inner belt with the bolt, as shown in the illustration.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.





5. CONNECT REAR SEAT BELT ASSEMBLY OUTER CENTER (for Floor Anchor)
(a) Install the floor anchor part of the rear seat inner belt with the bolt, as shown in the illustration.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part.

6. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
