Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

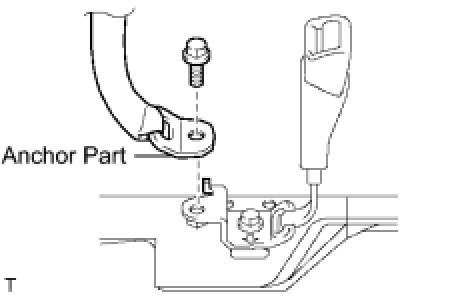

2. DISCONNECT REAR SEAT BELT ASSEMBLY OUTER CENTER (for Floor Anchor)
(a) Remove the bolt and floor anchor part of the seat belt outer.

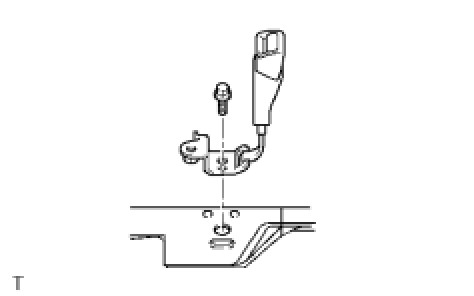

3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH





(a) Remove the bolt and rear seat inner belt.

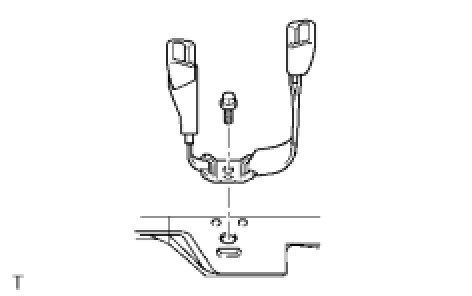

4. REMOVE REAR SEAT INNER BELT ASSEMBLY CENTER
(a) Remove the bolt and rear seat inner belt.
5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
(a) Remove the 2 bolts and anchor bracket.
6. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
(a) Remove the 2 bolts and anchor bracket.
