Installation








SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL REAR SEAT OUTER BELT ASSEMBLY CENTER
(a) Install the belt with the bolt on the retractor side.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(b) Install the rear seatback cover RH Reassembly.
(c) Install the rear seat headrest RH Reassembly.
(d) Install the rear seat center headrest Reassembly.
(e) Attach the 4 claws to install the cover Reassembly.

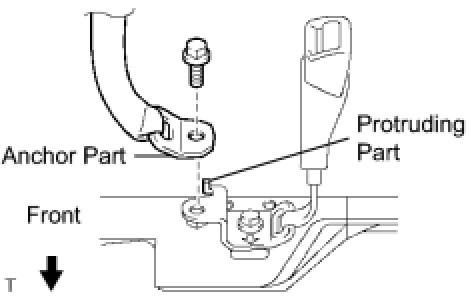

(f) Connect the floor anchor of the belt with the bolt, as shown in the illustration.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part.

2. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH
(a) Install the belt on the retractor side with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part of the side panel.

(b) Install the belt on the floor anchor side with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(c) With the belt installed, check that the belt locks when it is pulled out quickly.
NOTE: The check should be performed with the outer belt installed.
If the operation is not as specified, replace the belt.
3. INSTALL ROOF SIDE GARNISH INNER RH Installation
4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
(a) Install the deck trim side panel RH Installation.
(b) Install the rear seat outer belt RH with the bolt on the floor anchor side.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
5. INSTALL REAR DECK TRIM COVER Installation
6. INSTALL REAR DECK FLOOR BOX
7. INSTALL DECK FLOOR BOX LH
8. INSTALL REAR FLOOR NO. 4 BOARD
9. INSTALL REAR FLOOR NO. 1 BOARD
10. INSTALL REAR FLOOR NO. 2 BOARD
11. INSTALL TONNEAU COVER ASSEMBLY
12. INSTALL REAR SEAT BACK ASSEMBLY RH Installation
13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
14. INSTALL REAR SIDE SEAT BACK FRAME RH
15. INSTALL REAR DOOR SCUFF PLATE RH
16. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
18. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
