Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
(a) Measure the resistance of the buckle switch.

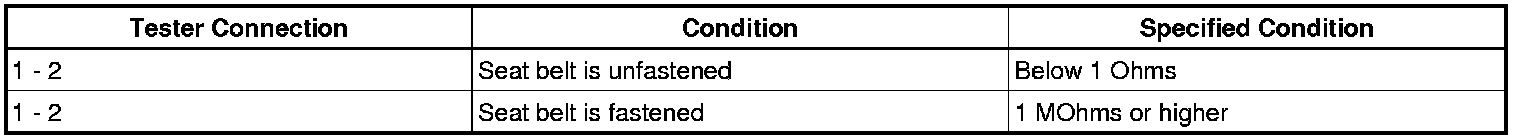

Standard resistance:





If the result is not as specified, replace the belt assembly.
