Rear Seat Outer Belt Assembly

SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSPECTION

INSPECTION

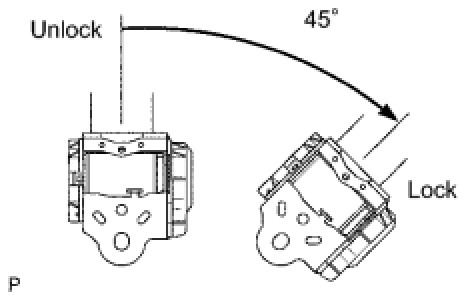

1. INSPECT REAR SEAT OUTER BELT ASSEMBLY CENTER
NOTE: Do not disassemble the retractor.





(a) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the belt.

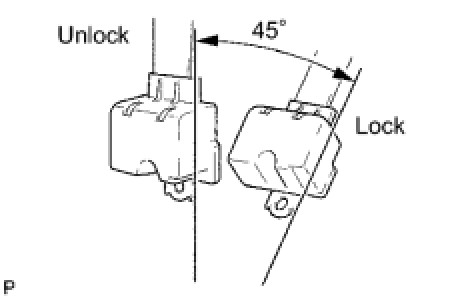

2. INSPECT REAR SEAT OUTER BELT ASSEMBLY
NOTE: Do not disassemble the retractor.

(a) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the belt.
