Seat Belt Systems: Specifications








SERVICE SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

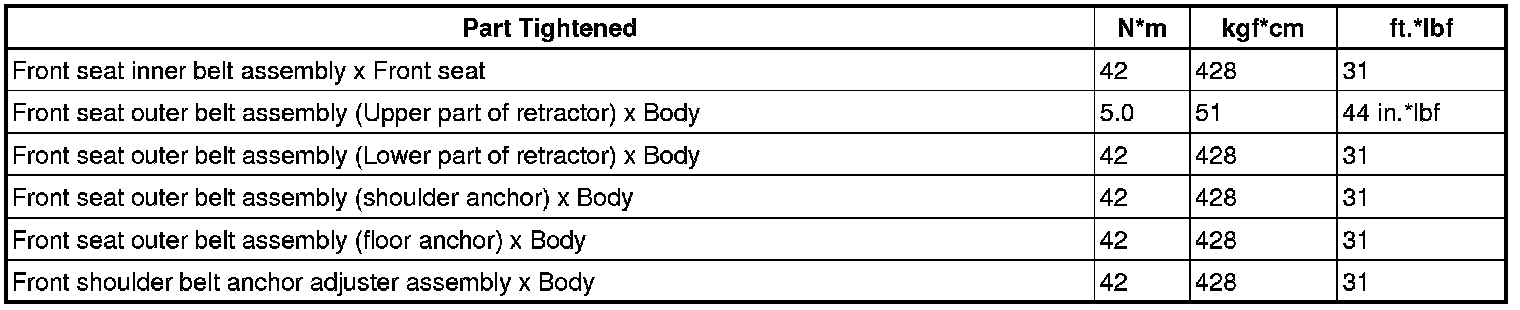

FRONT SEAT BELT:

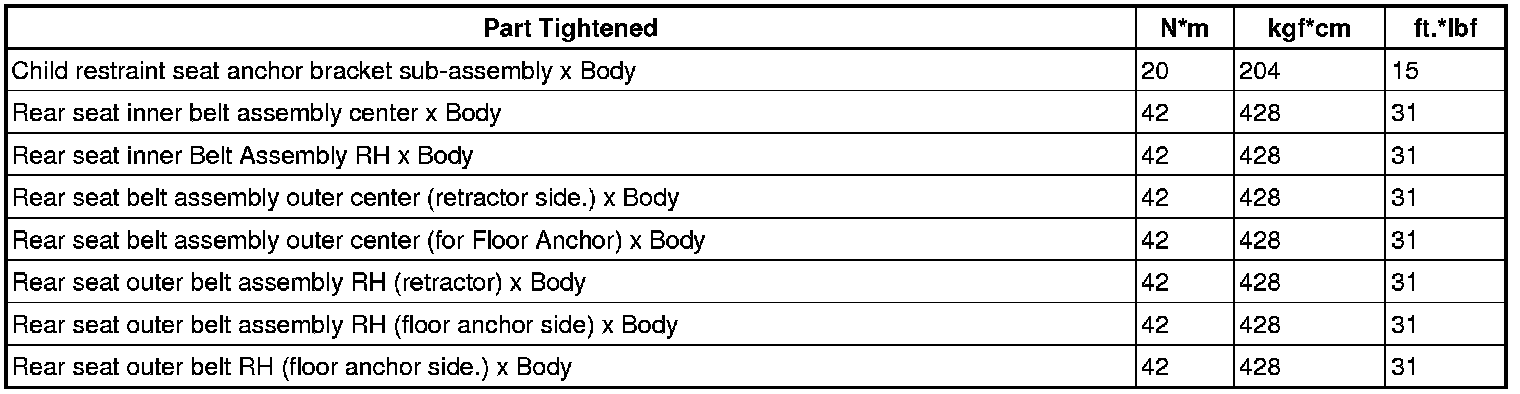

REAR SEAT BELT:
