How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use the following procedures to troubleshoot the occupant classification system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. PASSENGER AIRBAG ON/OFF INDICATOR CHECK
NEXT -- Continue to next step.

3. DTC CHECK (Present and Past DTC)*
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
Result:






B -- GO TO PROBLEM SYMPTOMS TABLE
A -- Continue to next step.

4. DTC CHART
NEXT -- Continue to next step.

5. REPAIR OR REPLACEMENT
NEXT -- Continue to next step.

6. DTC CLEARANCE (Present and Past DTCs)*
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

7. DTC CHECK (Present and Past DTCs)*
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
Result:






B -- Go to step 5
A -- Continue to next step.

8. PROBLEM SYMPTOMS SIMULATION

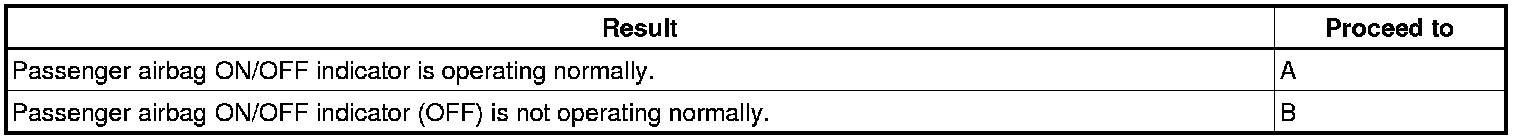

(a) Check the passenger airbag ON/OFF indicator condition Diagnosis System.
Result:






B -- Go to step 5
A -- Continue to next step.

9. CONFIRMATION TEST
NEXT -- END
