Scan Tool Testing and Procedures

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST
HINT: Using the Techstream's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. DATA LIST FOR OCCUPANT CLASSIFICATION ECU
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch ON (IG).
(c) Read the DATA LIST on the Techstream's screen.

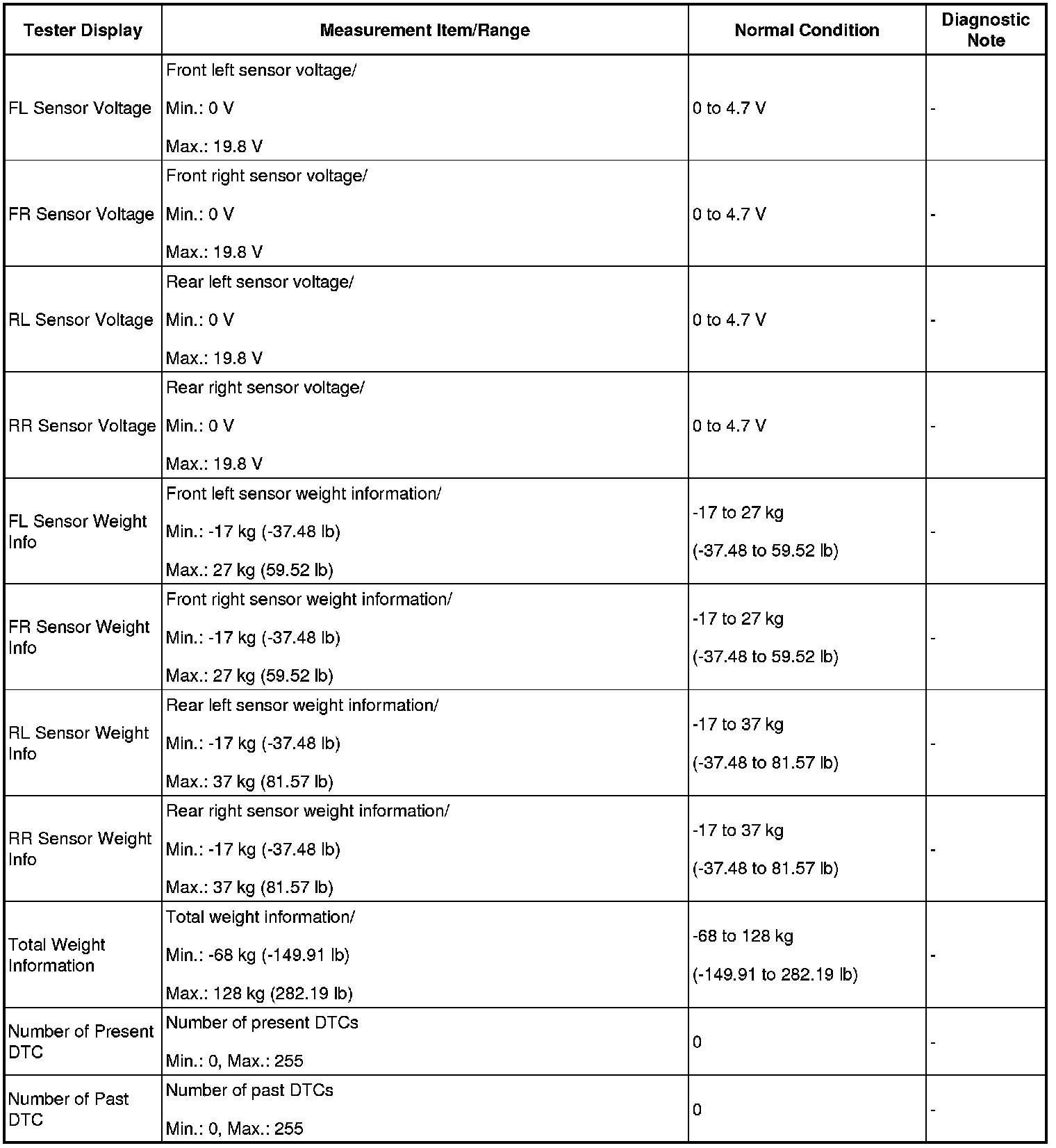

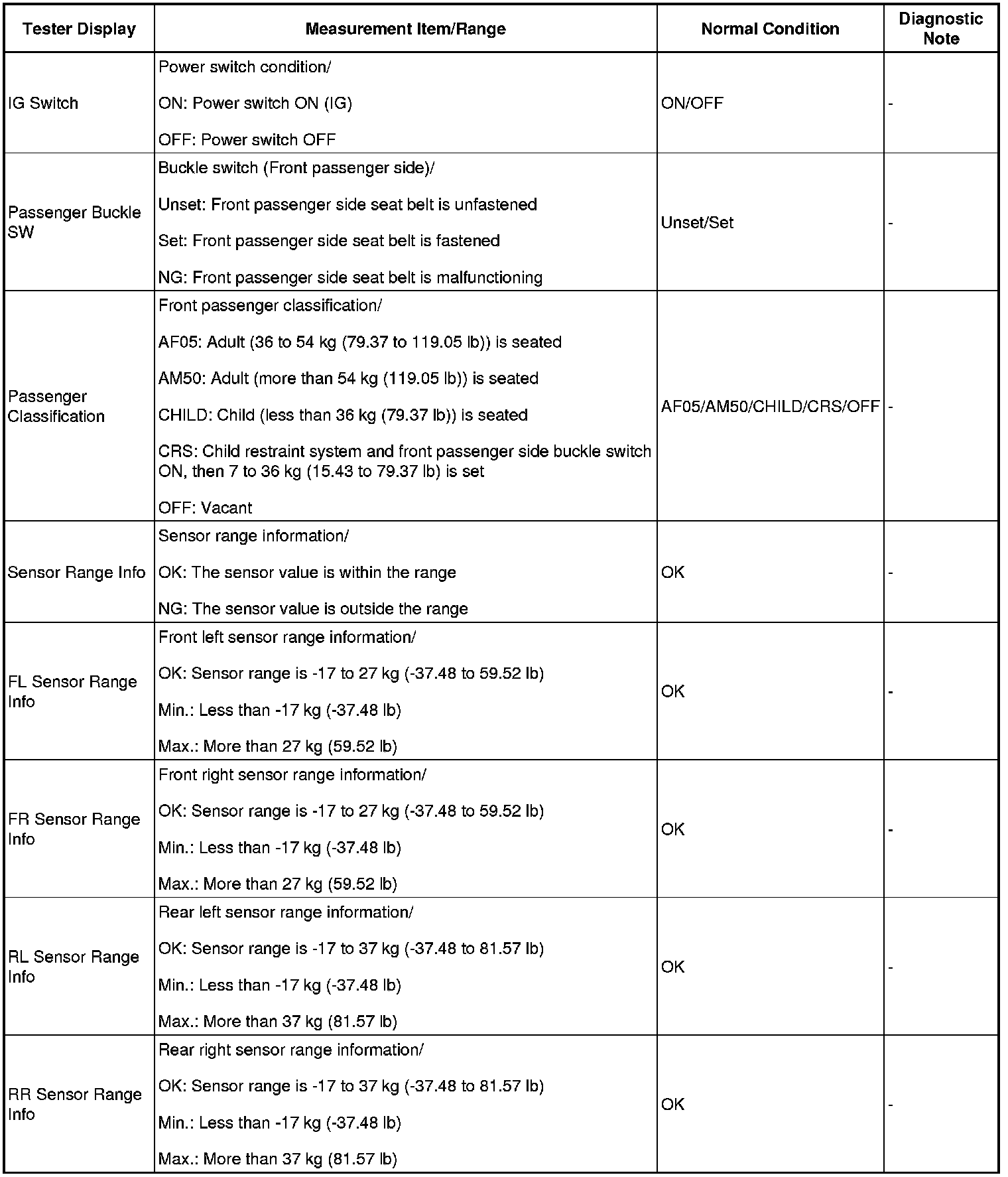

Occupant classification ECU
