Removal

BRAKE CONTROL: SKID CONTROL SENSOR: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal
3. SEPARATE SKID CONTROL SENSOR WIRE
4. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY Removal
5. REMOVE SKID CONTROL SENSOR
(a) Install the 4 hub nuts to the 4 rear axle hub bolts. Placing an aluminum plate below the rear axle hub and bearing, place them into the vise.
NOTE: Replace the rear axle hub and bearing if it is dropped or receives a strong shock.

(b) Using a pin punch (3 mm) or hammer, remove the 2 pins from SST (09520-00031) and separate the attachment (09521-00010).

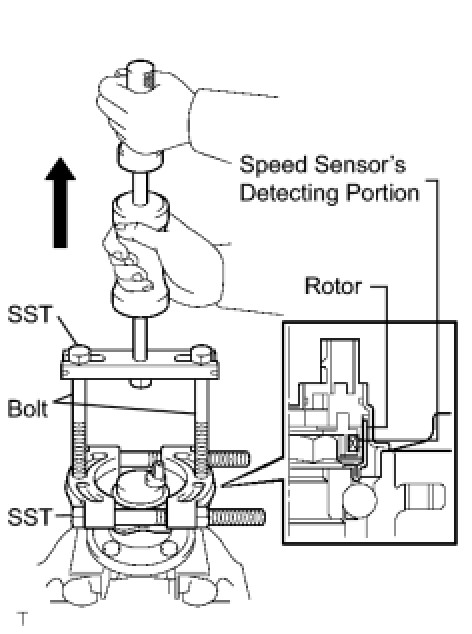

(c) Using SST and 2 bolts (90101-12007), remove the sensor from the rear axle hub and bearing.
SST: 09520-00031
09520-00040
SST: 09521-00020
SST: 09950-00020
NOTICE:
- Pull the sensor off straight, being careful not to make contact with the sensor rotor.
- If the sensor rotor is damaged or deformed, replace the rear axle hub and bearing.
- Do not scratch the area where the sensor contacts the rear axle hub and bearing.
- Do not allow foreign matter to attach to the sensor rotor.
