Battery Current Sensor: Testing and Inspection

P112 HYBRID BATTERY CONTROL: BATTERY CURRENT SENSOR: INSPECTION

INSPECTION

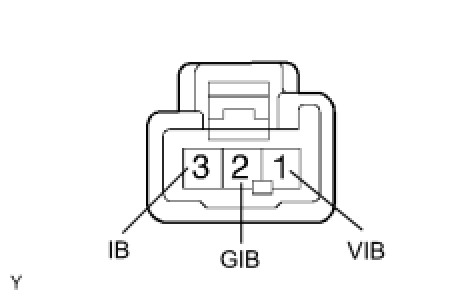

1. INSPECT BATTERY CURRENT SENSOR





(a) Inspect the resistance.

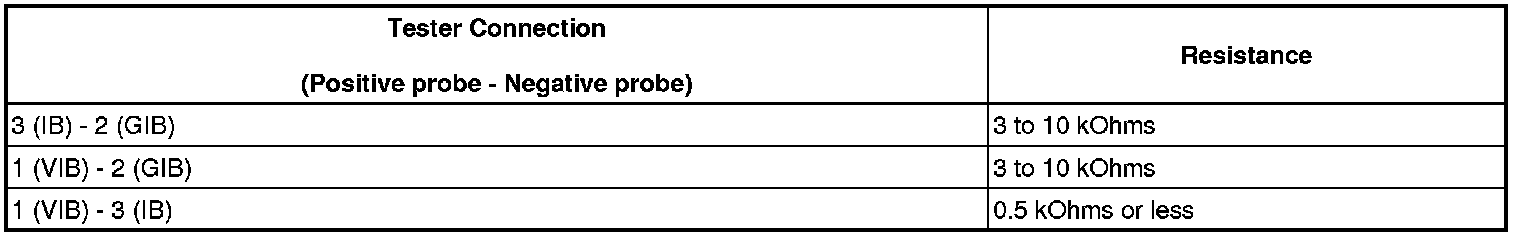

(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:






If the the results are not as specified, replace the battery current sensor.
