Ignition Switch Lock Cylinder: Testing and Inspection

1NZ-FXE STARTING: KEY SLOT: INSPECTION

INSPECTION

1. INSPECT KEY SLOT





(a) Remove the key slot Removal.

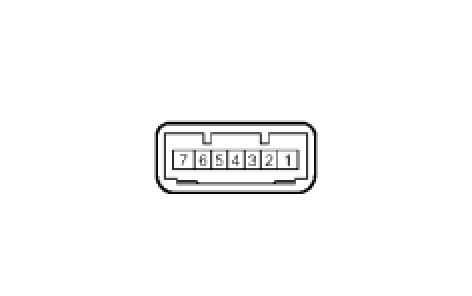

(b) Measure the resistance of the key slot.
Standard resistance:





If the result is not as specified, replace the key slot.





(c) Inspect the key slot illumination.
(1) Connect the battery positive (+) lead from the battery to terminal 2 and the battery negative (-) lead to terminal 6, then check that the illumination comes on.
OK:
Illumination comes on.
